TE Connectivity Economy Power II Series Cable PCB Header, 2 Contact(s), 3.96 mm Pitch, 1 Row(s)
- RS Stock No.:
- 478-414
- Mfr. Part No.:
- 2132813-2
- Brand:
- TE Connectivity
Subtotal (1 bag of 1200 units)*
£182.36
(exc. VAT)
£218.83
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 05 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £182.36 | £0.152 |
*price indicative
- RS Stock No.:
- 478-414
- Mfr. Part No.:
- 2132813-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | Economy Power II | |
| Pitch | 3.96mm | |
| Number of Contacts | 2 | |
| Housing Material | Nylon | |
| Number of Rows | 1 | |
| Mount Type | Cable | |
| Connector System | Wire-to-Board | |
| Contact Material | Phosphor Bronze | |
| Row Pitch | 3.96mm | |
| Termination Type | Crimp | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL 94 V-0 | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-52-788 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series Economy Power II | ||
Pitch 3.96mm | ||
Number of Contacts 2 | ||
Housing Material Nylon | ||
Number of Rows 1 | ||
Mount Type Cable | ||
Connector System Wire-to-Board | ||
Contact Material Phosphor Bronze | ||
Row Pitch 3.96mm | ||
Termination Type Crimp | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL 94 V-0 | ||
Voltage 60 V | ||
Distrelec Product Id 304-52-788 | ||
- COO (Country of Origin):
- CN

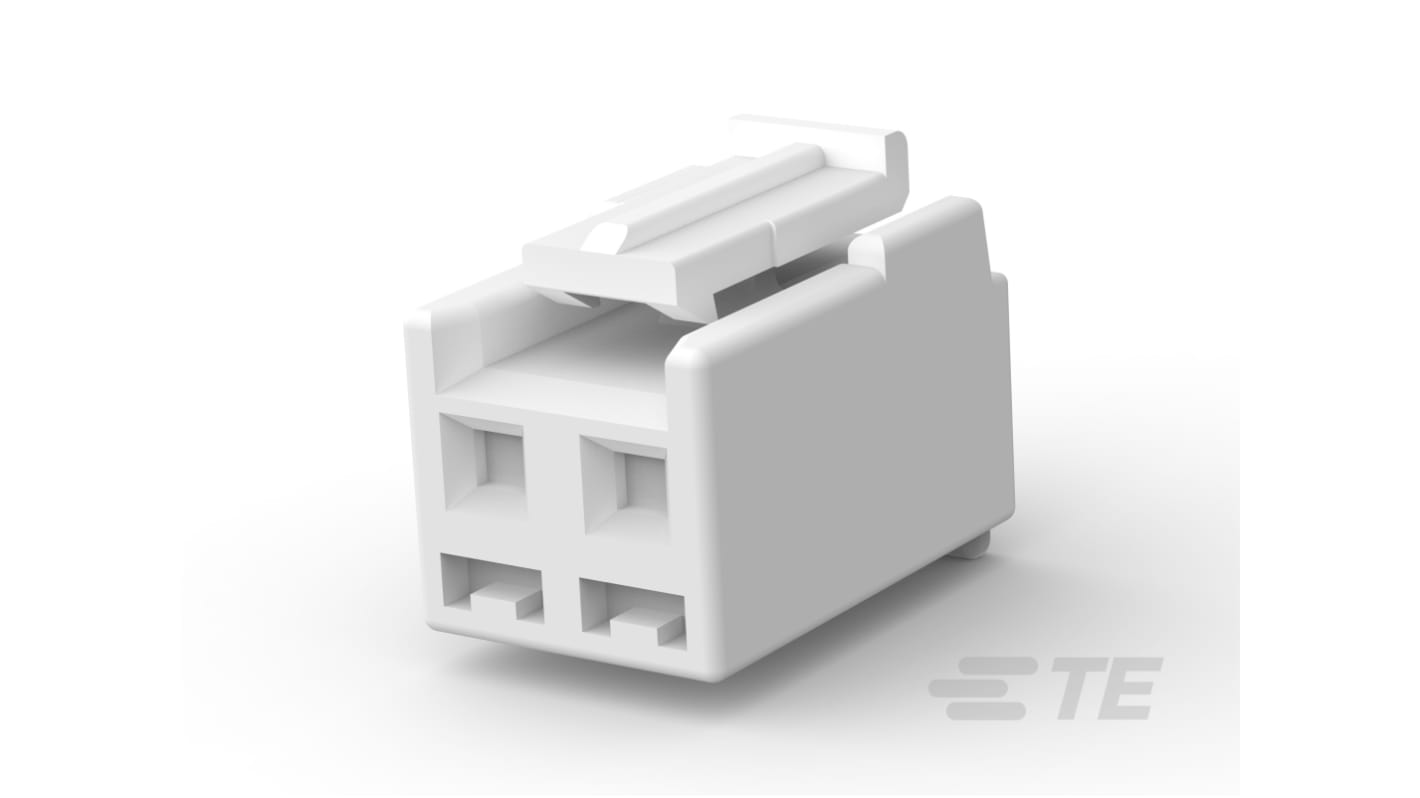

The TE Connectivity Housing receptacle crimp connector is expertly designed for wire-to-board applications, showcasing exceptional durability and reliability. Made from high-quality nylon materials, this product not only adheres to the stringent UL 94V-0 flammability standards, but is also engineered to withstand operating temperatures ranging from -55 to 105 °C. With its 2-position configuration, it allows for efficient power and signal transmission. The connector's innovative latch and locking latch design ensures secure mating retention, providing peace of mind in critical applications. This versatile component is an ideal solution for a diverse range of electronic projects, maintaining high performance in demanding environments.
Compatible with Economy Power II series for seamless integration
Supports cable mount assembly for flexible installation options
Inline contact layout enhances ease of use
No strain relief required, simplifying installation processes
Low halogen content reduces environmental impact
Packaging quantity of 1000 promotes cost-efficient sourcing
Crimp termination method provides a secure connection
Connector width of 13.3 mm allows for compact arrangements
Centerline pitch of 3.96 mm optimises space utilisation
Meets EU RoHS and REACH compliance for safe environmental practices
