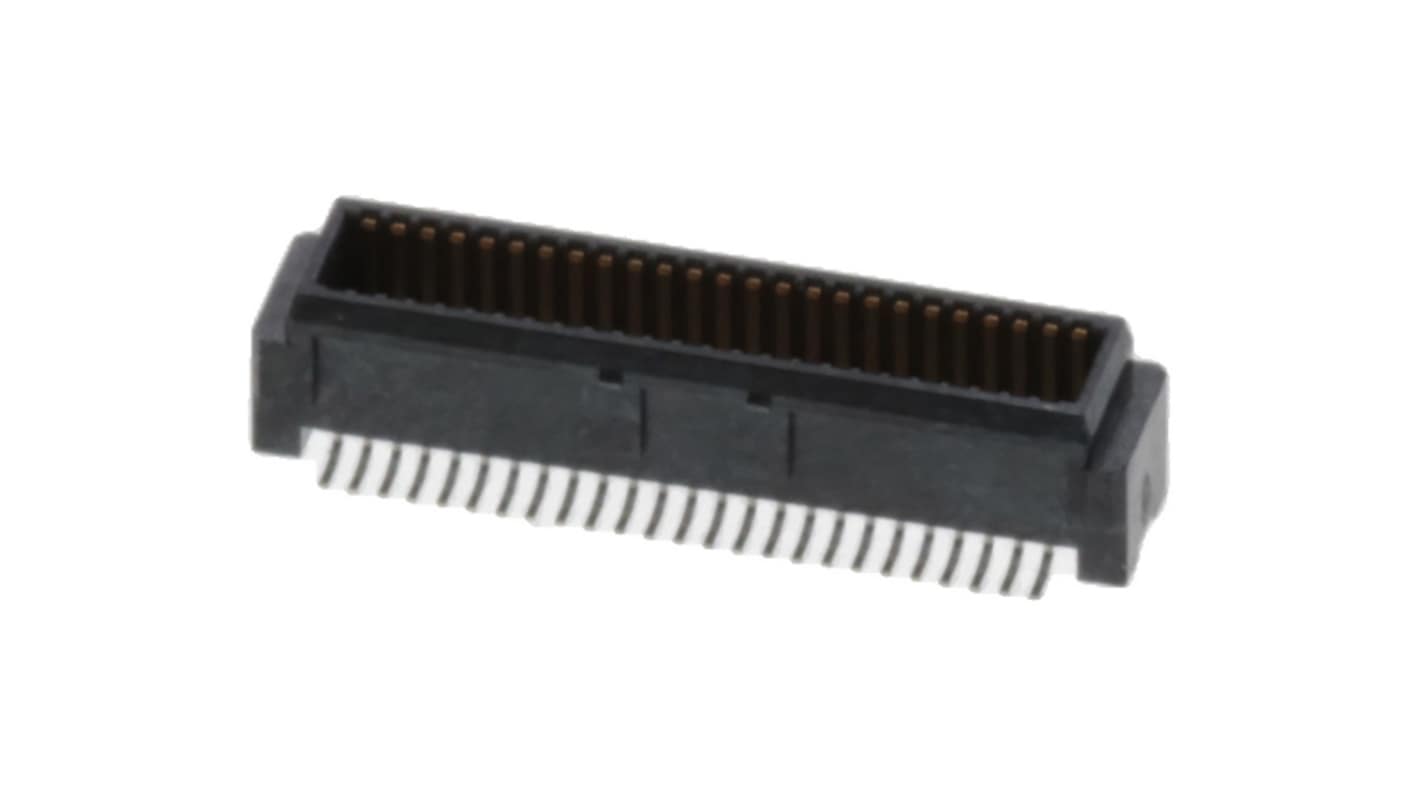

Molex 501920 Series Vertical Surface Mount PCB Header, 0.5mm Pitch, 2 Row(s), Shrouded

View all PCB Headers

Subtotal (1 reel of 1500 units)*

£2,081.26

(exc. VAT)

£2,497.51

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per unit*
1 +£2,081.26£1.388

*price indicative

RS Stock No.:
478-312
Mfr. Part No.:
501920-5001
Brand:
Molex
Find similar products by selecting one or more attributes.
Select all

Brand

Molex

Series

501920

Pitch

0.5mm

Number of Rows

2

Body Orientation

Vertical

Shrouded/Unshrouded

Shrouded

Mounting Type

Surface Mount

COO (Country of Origin):
JP
The TE Connectivity Board-to-Board Plug stands out for its compact design and innovative engineering. Designed for surface mount applications, it seamlessly ensures a secure vertical stacking with a 4.00mm height. This connector is perfect for multiple circuits, accommodating up to 50 without the need for solder tabs. Crafted for reliability, it meets stringent industry standards and provides compatibility with various receptacles for enhanced versatility. Whether it's for high-performance applications or simple assembly tasks, this product promises durability and efficiency in every connection.

Surface mount configuration streamlines PCB assembly
Vertical orientation assures efficient space utilisation
Designed to withstand extensive mating cycles for long-term use
Low-halogen materials enhance environmental compliance
Compatible with multiple receptacles for flexible applications
Black resin colour enhances the product's aesthetic appeal
