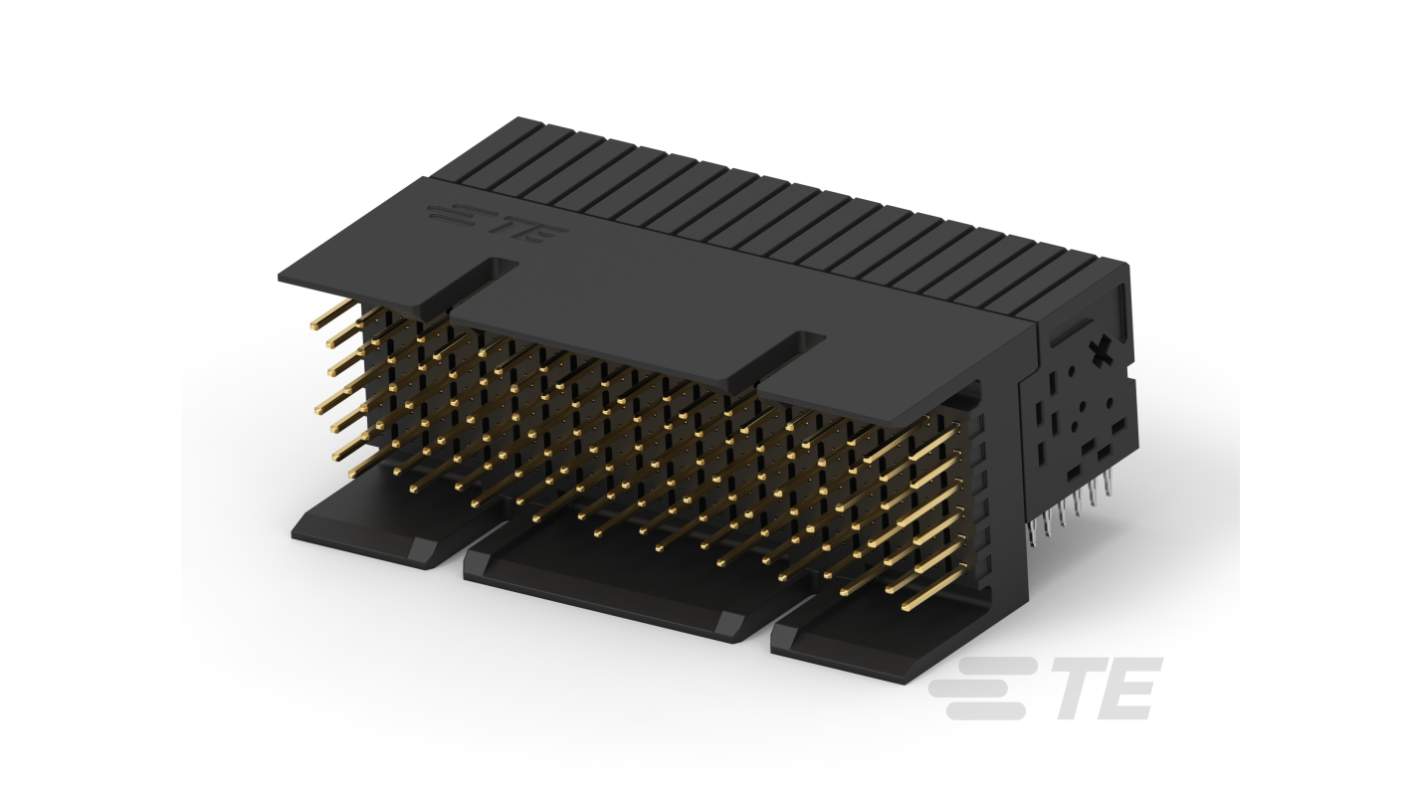

TE Connectivity Fortis Zd Series Right Angle Panel Mount PCB Header, 180 Contact(s), 0.08mm Pitch, 9 Row(s), Shrouded
- RS Stock No.:
- 474-539
- Mfr. Part No.:
- 2102159-2
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£196.73
(exc. VAT)
£236.08
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £196.73 |
*price indicative
- RS Stock No.:
- 474-539
- Mfr. Part No.:
- 2102159-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Series | Fortis Zd | |
Pitch | 0.08mm | |
Number of Contacts | 180 | |
Number of Rows | 9 | |
Body Orientation | Right Angle | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Panel Mount | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Series Fortis Zd | ||
Pitch 0.08mm | ||
Number of Contacts 180 | ||
Number of Rows 9 | ||
Body Orientation Right Angle | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Panel Mount | ||
- COO (Country of Origin):
- US
The TE Connectivity 180 Position High Speed Backplane Connector is designed for robust and reliable connectivity in demanding applications. Featuring a traditional backplane architecture, this high-speed connector provides a secure interface for board-to-board connections, making it ideal for a variety of electronic devices. With its fully shrouded design and right-angle PCB mount orientation, it ensures ease of installation and effective space utilisation. The connector accommodates a high number of positions while maintaining performance, enabling efficient signal transmission even in densely packed environments. Built to withstand a wide operating temperature range, this connector is well-suited for industrial and commercial applications, ensuring reliability and longevity in diverse settings.
Utilises a traditional backplane architecture for enhanced performance
Offers superior signal integrity for high-speed data applications
Designed with an easy panel mount type for straightforward assembly
Maintains effective thermal management with robust housing materials
Incorporates a mating alignment feature for accurate connector engagement
Supports multiple rows and columns to accommodate complex connections
Optimised for versatile mounting in constrained spaces
Robust against environmental challenges, ensuring long-lasting reliability
Offers superior signal integrity for high-speed data applications
Designed with an easy panel mount type for straightforward assembly
Maintains effective thermal management with robust housing materials
Incorporates a mating alignment feature for accurate connector engagement
Supports multiple rows and columns to accommodate complex connections
Optimised for versatile mounting in constrained spaces
Robust against environmental challenges, ensuring long-lasting reliability
