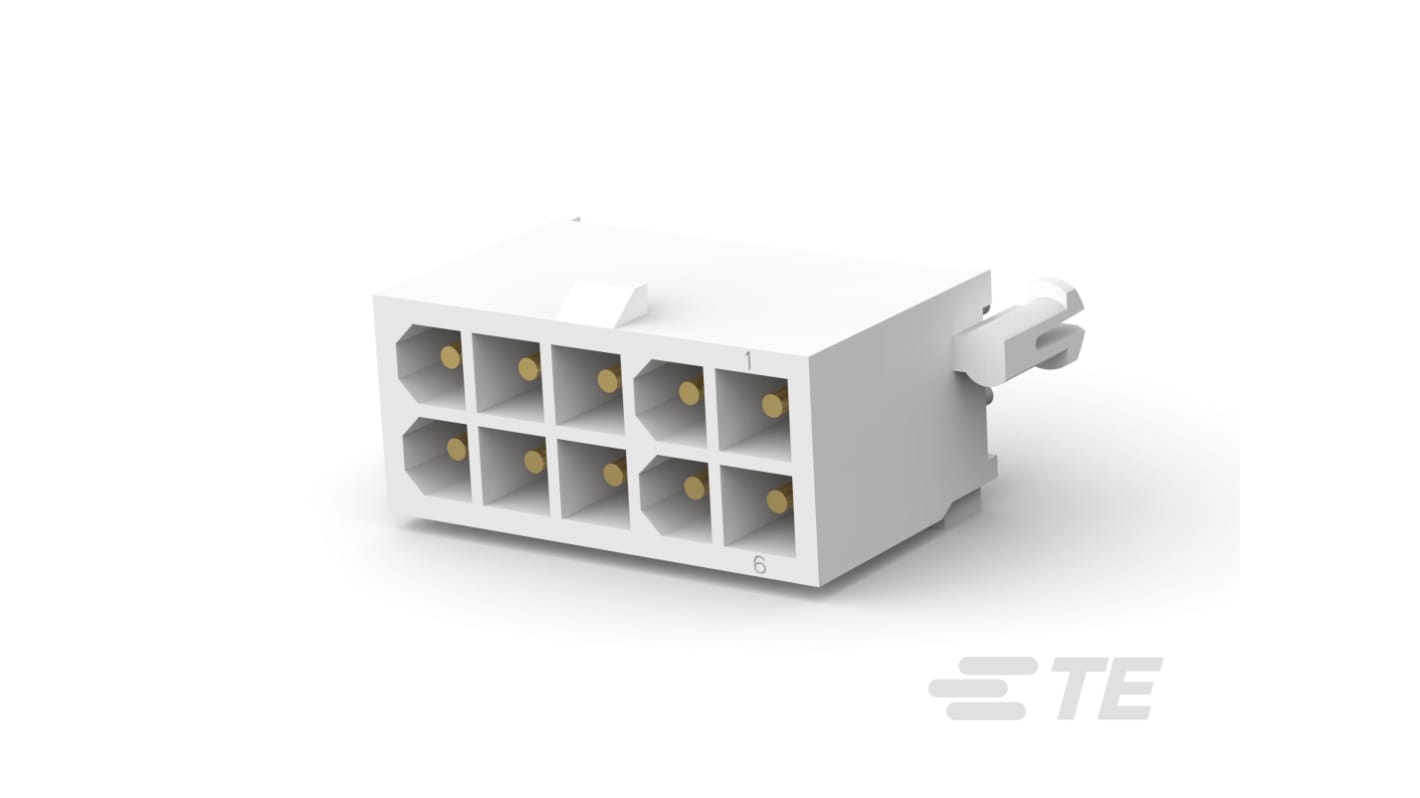

TE Connectivity MATE-N-LOK Series Vertical Board PCB Header, 10 Contact(s), 4.14 mm Pitch, 2 Row, Shrouded
- RS Stock No.:
- 473-075
- Distrelec Article No.:
- 304-50-135
- Mfr. Part No.:
- 1-770858-1
- Brand:
- TE Connectivity
Subtotal (1 bag of 40 units)*
£266.67
(exc. VAT)
£320.00
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 07 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
|---|---|---|
| 1 + | £266.67 | £6.667 |
*price indicative
- RS Stock No.:
- 473-075
- Distrelec Article No.:
- 304-50-135
- Mfr. Part No.:
- 1-770858-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Series | MATE-N-LOK | |
| Product Type | PCB Header | |
| Current | 9.5A | |
| Pitch | 4.14mm | |
| Housing Material | Nylon | |
| Number of Contacts | 10 | |
| Number of Rows | 2 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Plating | Gold | |
| Contact Material | Brass | |
| Row Pitch | 4.14mm | |
| Termination Type | Solder | |
| Minimum Operating Temperature | -55°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 105°C | |
| Tail Pin Length | 3.69mm | |
| Standards/Approvals | CSA, UL, UL 94V-0 | |
| Voltage | 600V | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Series MATE-N-LOK | ||
Product Type PCB Header | ||
Current 9.5A | ||
Pitch 4.14mm | ||
Housing Material Nylon | ||
Number of Contacts 10 | ||
Number of Rows 2 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Plating Gold | ||
Contact Material Brass | ||
Row Pitch 4.14mm | ||
Termination Type Solder | ||
Minimum Operating Temperature -55°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 105°C | ||
Tail Pin Length 3.69mm | ||
Standards/Approvals CSA, UL, UL 94V-0 | ||
Voltage 600V | ||
- COO (Country of Origin):
- MX
The TE Connectivity PCB Mount Header is designed for vertical wire-to-board connections, enabling efficient integration in various electronic applications. With its 10-position layout and a centreline of 4.14 mm, it offers a compact solution for densely packed circuit boards. Fully shrouded and featuring gold contacts, this header ensures reliable connectivity and durability, ideal for high-performance environments. Its robust nylon housing and modern design promote ease of use, while the through-hole solder termination method enhances stability and reliability during operation. This product exemplifies innovation in connector technology, catering to diverse circuit applications while maintaining compliance with industry standards.
Utilises a fully shrouded configuration for enhanced contact protection
Constructed from durable nylon material for improved longevity
Features a round contact shape for secure connections
Designed to support a maximum operating voltage of 600 VDC
Incorporates a locking tab for secure mating retention
Supports through-hole solder termination for increased structural integrity
Maximises current handling capabilities with ratings up to 9.5 A
Offers a low halogen content for reduced environmental impact
Complies with key industry standards for compatibility and safety
