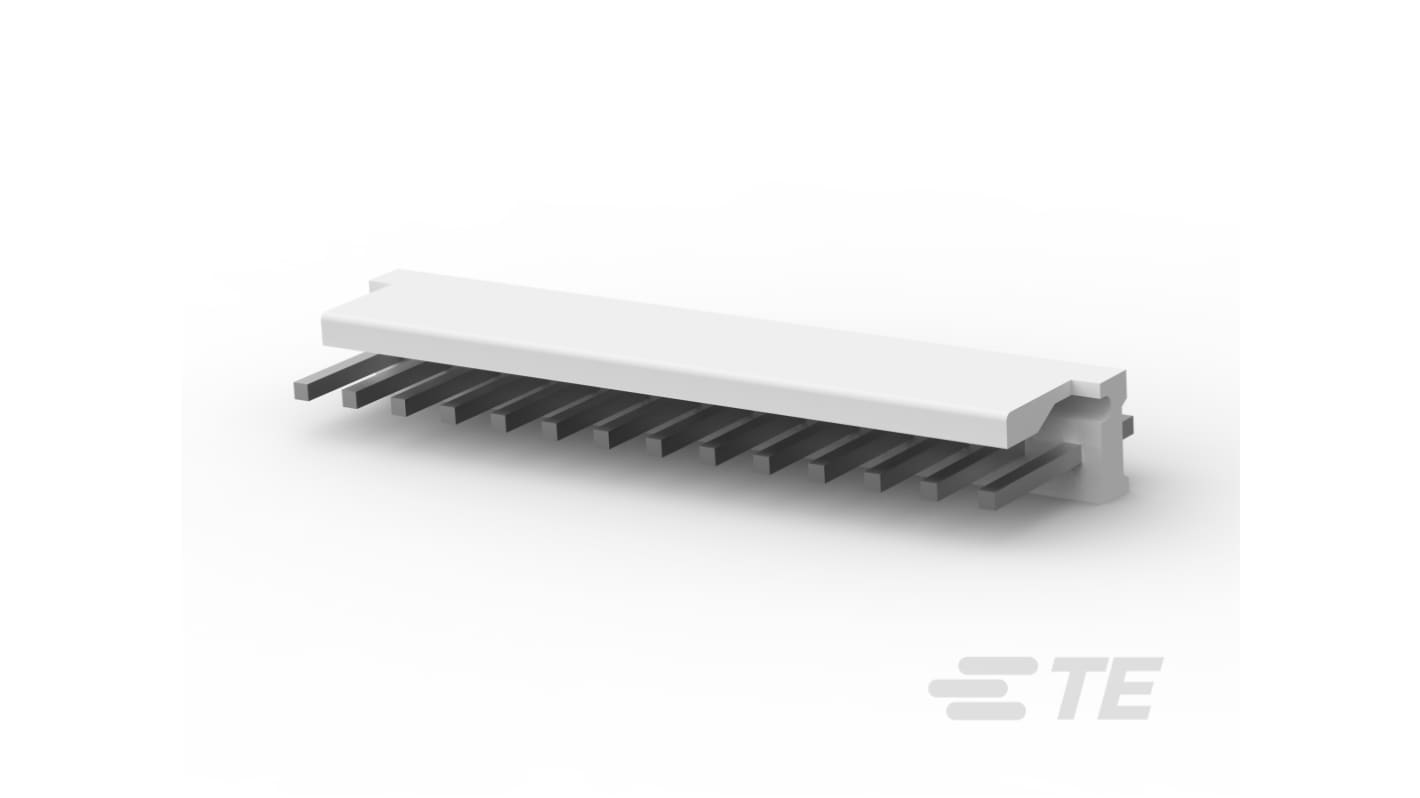

TE Connectivity MTA-156 Series Vertical Board PCB Header, 14 Contact(s), 3.96 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 472-829
- Mfr. Part No.:
- 1-640445-4
- Brand:
- TE Connectivity
Subtotal (1 pack of 200 units)*
£208.12
(exc. VAT)
£249.74
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
|---|---|---|
| 1 + | £208.12 | £1.041 |
*price indicative
- RS Stock No.:
- 472-829
- Mfr. Part No.:
- 1-640445-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | PCB Header | |
| Series | MTA-156 | |
| Current | 14.24A | |
| Pitch | 3.96mm | |
| Number of Contacts | 14 | |
| Housing Material | Fibreglass Thermoplastic Polyester | |
| Number of Rows | 1 | |
| Orientation | Vertical | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | Wire-to-Board | |
| Mount Type | Board | |
| Contact Plating | Tin Plated | |
| Contact Material | Copper Alloy | |
| Row Pitch | 3.96mm | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Tail Pin Length | 3.18mm | |
| Maximum Operating Temperature | 105°C | |
| Mating Pin Length | 10.16mm | |
| Standards/Approvals | CSA, UL, VDE | |
| Voltage | 60 V | |
| Distrelec Product Id | 304-50-124 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type PCB Header | ||
Series MTA-156 | ||
Current 14.24A | ||
Pitch 3.96mm | ||
Number of Contacts 14 | ||
Housing Material Fibreglass Thermoplastic Polyester | ||
Number of Rows 1 | ||
Orientation Vertical | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire-to-Board | ||
Mount Type Board | ||
Contact Plating Tin Plated | ||
Contact Material Copper Alloy | ||
Row Pitch 3.96mm | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Tail Pin Length 3.18mm | ||
Maximum Operating Temperature 105°C | ||
Mating Pin Length 10.16mm | ||
Standards/Approvals CSA, UL, VDE | ||
Voltage 60 V | ||
Distrelec Product Id 304-50-124 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB Mount Header is engineered for vertical wire-to-board applications, specifically designed to accommodate 14 positions on a 3.96 mm centreline. This robust component features a partially shrouded header type that ensures secure connections for electronic circuits. With a through-hole solder termination method, the header provides exceptional reliability and performance in various operating conditions. Its construction from thermoplastic polyester gives it an impressive heat tolerance, making it suitable for high-temperature environments. The product's versatility in electrical applications simplifies the integration into different circuit designs, helping to enhance efficiency in assemblies.
Designed for effective vertical mounting in intricate PCB setups
Utilises a natural finish to blend seamlessly with standard circuit boards
Delivers improved resistance with a tin-plated finish for enhanced durability
Facilitates easy alignment during assembly through its friction lock mechanism
Compatible with a wide range of TE products for increased versatility
Meets stringent industry standards, ensuring reliability in various applications
Optimised for high-performance conditions, extending its operational lifespan
