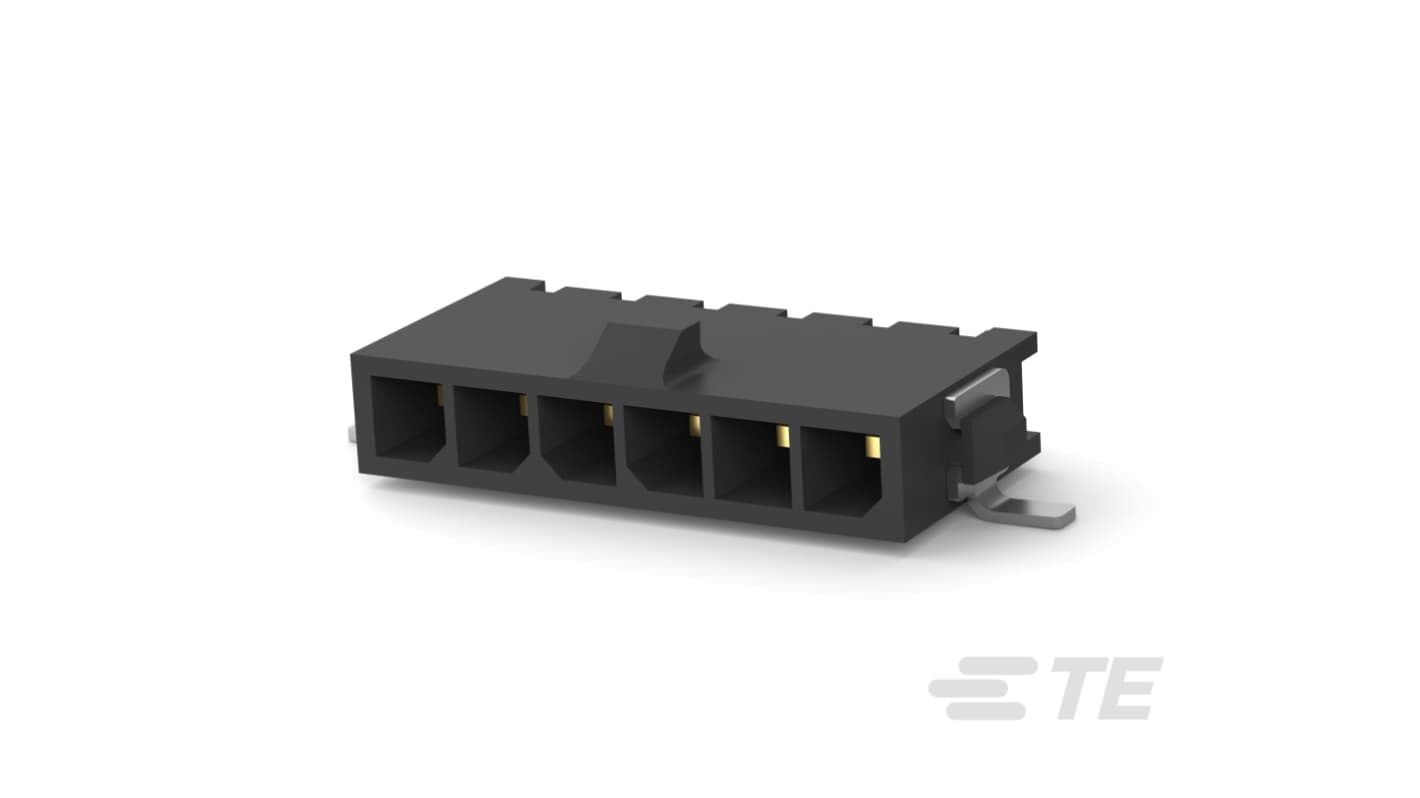

TE Connectivity Micro MATE-N-LOK Series Right Angle Board PCB Header, 6 Contact(s), 3 mm Pitch, 1 Row(s), Shrouded

View all PCB Headers

Subtotal (1 reel of 215 units)*

£263.42

(exc. VAT)

£316.10

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per unit*
1 +£263.42£1.225

*price indicative

RS Stock No.:
467-143
Mfr. Part No.:
2-1445091-6
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

PCB Header

Series

Micro MATE-N-LOK

Pitch

3mm

Current

5A

Housing Material

Nylon

Number of Contacts

6

Number of Rows

1

Orientation

Right Angle

Shrouded/Unshrouded

Shrouded

Mount Type

Board

Connector System

Wire-to-Board

Contact Material

Brass

Contact Plating

Gold

Row Pitch

3mm

Minimum Operating Temperature

-40°C

Termination Type

Surface Mount

Maximum Operating Temperature

105°C

Mating Pin Length

4.15mm

Standards/Approvals

CNR, UL E28476, USR UL Rating Recognised

Voltage

250 V

Distrelec Product Id

304-58-310

COO (Country of Origin):
CN
The TE Connectivity PCB Mount Header offers a reliable and efficient connection solution for your electronic applications. Designed for right-angle wire-to-board configurations, this component seamlessly integrates into varied circuit layouts. Its six-position, fully shrouded design promotes secure connections, ensuring robust performance under demanding conditions. The high-temperature nylon housing withstands elevated temperatures, making it ideal for power applications. Additionally, with a gold-plated contact finish, the component ensures optimal conductivity, longevity, and resistance against corrosion. Offering both versatility and durability, this product is essential for modern electronic assembly.

Optimised for surface mount technology, enhancing assembly efficiency

Developed with a rectangular connector shape, allowing easy integration into designs

Constructed with high-temperature nylon, ensuring resilience in extreme environments

Includes a locking tab mechanism to enhance mating retention during use

Features a matte finish on the contact termination area to reduce oxidation

Designed to accommodate standard PCB thickness, streamlining installation processes

Incorporates power contact configuration, suitable for high-current applications
