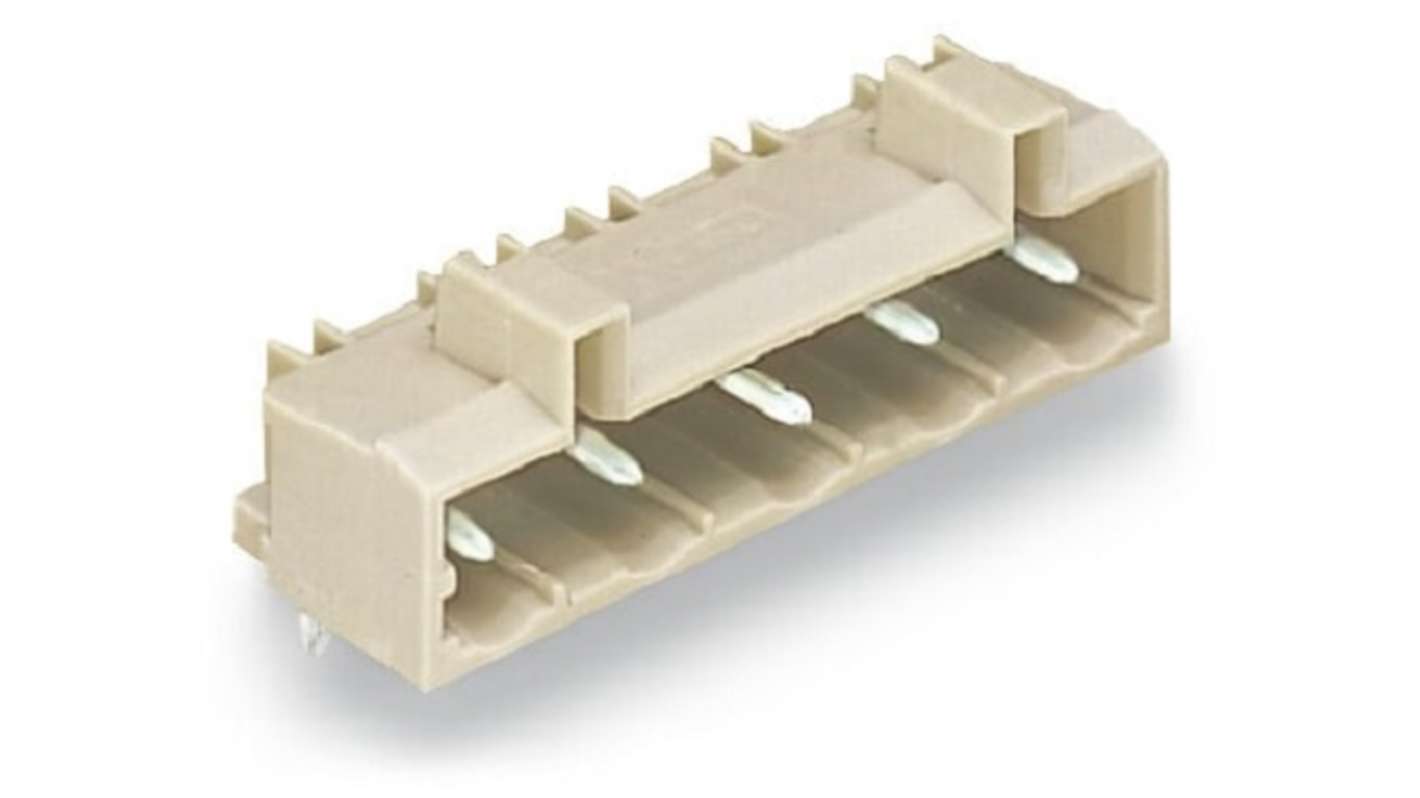

WAGO 721 Series Angled Through Hole Header, 7 Contact(s), 7.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 223-848
- Mfr. Part No.:
- 721-837/001-000
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£87.37
(exc. VAT)
£104.84
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £87.37 | £1.747 |
*price indicative
- RS Stock No.:
- 223-848
- Mfr. Part No.:
- 721-837/001-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 721 | |
| Product Type | Header | |
| Current | 12A | |
| Pitch | 7.5mm | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 7 | |
| Number of Rows | 1 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | MCS | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Termination Type | Through-Hole Reflow (THR) Soldering | |
| Row Pitch | 7.5mm | |
| Minimum Operating Temperature | 60°C | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 3.8mm | |
| Standards/Approvals | RoHS | |
| Mating Pin Length | 3.8mm | |
| Voltage | 50 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 721 | ||
Product Type Header | ||
Current 12A | ||
Pitch 7.5mm | ||
Housing Material Polyamide 66 | ||
Number of Contacts 7 | ||
Number of Rows 1 | ||
Orientation Angled | ||
Shrouded/Unshrouded Shrouded | ||
Connector System MCS | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Termination Type Through-Hole Reflow (THR) Soldering | ||
Row Pitch 7.5mm | ||
Minimum Operating Temperature 60°C | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 3.8mm | ||
Standards/Approvals RoHS | ||
Mating Pin Length 3.8mm | ||
Voltage 50 V | ||
- COO (Country of Origin):
- DE
The Wago THT Male Header connector is designed for seamless integration into various electronic applications, providing a reliable and efficient connection solution. Engineered with precision, it offers a versatile pin arrangement and superior protection against mismating. The compact design enables both horizontal and vertical PCB mounting, making it ideal for constrained spaces. The advanced materials and engineering ensure durability and longevity in rigorous environments, while maintaining ease of installation for technicians.
Includes variable coding options to prevent incorrect connections
Constructed with flammability rated materials for reliability
Lightweight design at just 3 g simplifying integration
Compliant with international safety and environmental standards
Suitable for rail and rolling stock applications ensuring versatility
