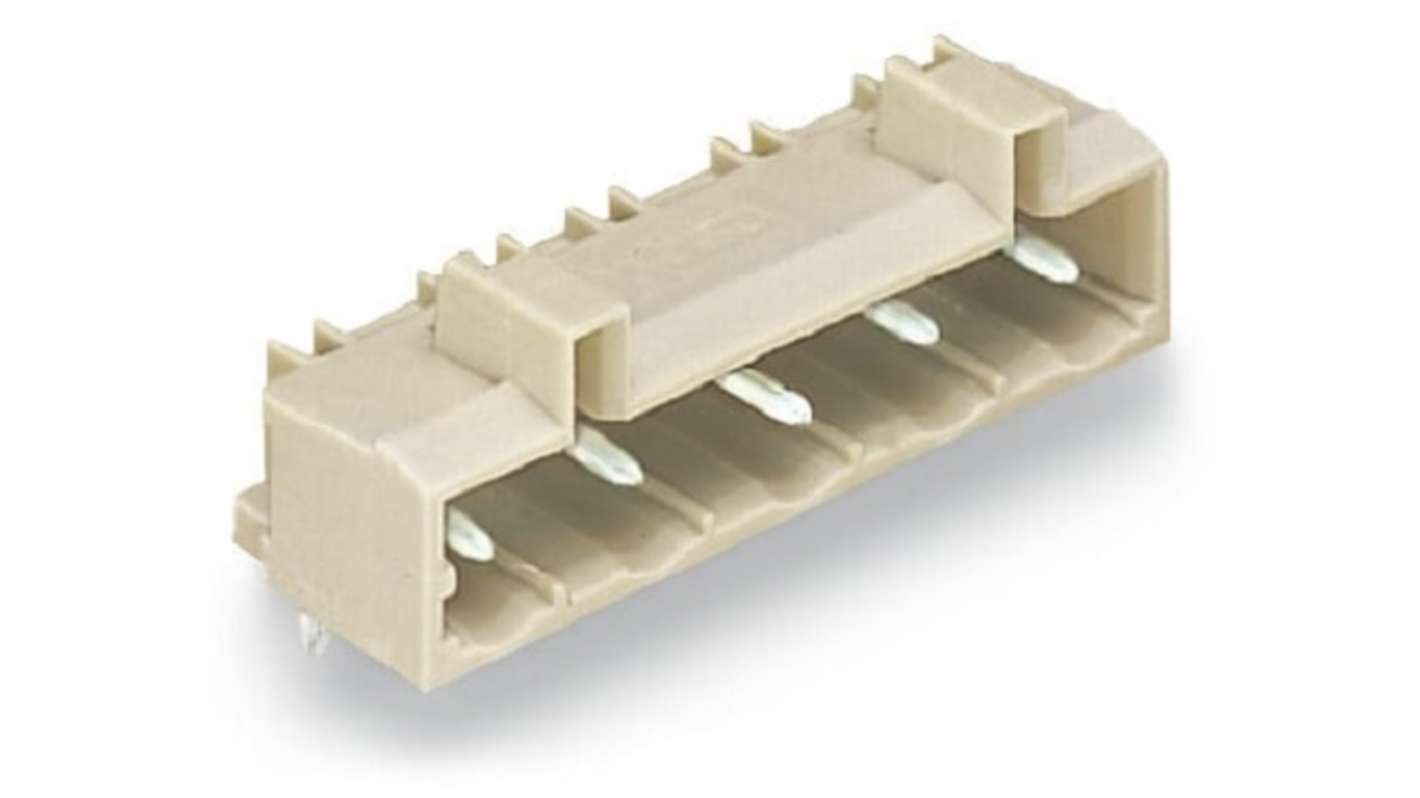

WAGO 721 Series Angled Through Hole Header, 11 Contact(s), 7.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 222-808
- Mfr. Part No.:
- 721-841/001-000
- Brand:
- WAGO
Subtotal (1 box of 50 units)*
£147.97
(exc. VAT)
£177.56
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £147.97 | £2.959 |
*price indicative
- RS Stock No.:
- 222-808
- Mfr. Part No.:
- 721-841/001-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 721 | |
| Product Type | Header | |
| Current | 12A | |
| Pitch | 7.5mm | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 11 | |
| Number of Rows | 1 | |
| Orientation | Angled | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | MCS | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 60°C | |
| Row Pitch | 7.5mm | |
| Maximum Operating Temperature | 100°C | |
| Contact Gender | Male | |
| Tail Pin Length | 3.8mm | |
| Mating Pin Length | 3.8mm | |
| Standards/Approvals | RoHS | |
| Voltage | 50 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 721 | ||
Product Type Header | ||
Current 12A | ||
Pitch 7.5mm | ||
Housing Material Polyamide 66 | ||
Number of Contacts 11 | ||
Number of Rows 1 | ||
Orientation Angled | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System MCS | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Termination Type Solder | ||
Minimum Operating Temperature 60°C | ||
Row Pitch 7.5mm | ||
Maximum Operating Temperature 100°C | ||
Contact Gender Male | ||
Tail Pin Length 3.8mm | ||
Mating Pin Length 3.8mm | ||
Standards/Approvals RoHS | ||
Voltage 50 V | ||
- COO (Country of Origin):
- DE
The Wago THT Male Header designed for reliable PCB connections. Built with a robust angled design, it ensures 100% protection against mismating, making it an excellent choice for industrial applications. The innovative pin spacing of 7.5 mm enhances its versatility, allowing seamless integration into various devices. This product is engineered from high quality materials, ensuring durability and performance across a wide temperature range. With gold plated contact surfaces, this connector guarantees superior electrical conductivity, making it ideal for demanding environments.
Constructed from polyamide ensuring excellent durability and heat resistance
Compliant with RoHS standards highlighting its environmentally friendly construction
Meets rigorous testing specifications for shock and vibration to endure extreme conditions
Available in a stylish light grey finish that seamlessly integrates into various PCB designs
Supports a wide range of applications with total potential connections accessible
Optimised for easy PCB assembly and reduced installation time
