WAGO 721 Series Straight Through Hole Header, 6 Contact(s), 7.5 mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 223-655
- Mfr. Part No.:
- 721-266/001-000
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£162.61
(exc. VAT)
£195.13
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 12 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £162.61 | £1.626 |
*price indicative
- RS Stock No.:
- 223-655
- Mfr. Part No.:
- 721-266/001-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Series | 721 | |
| Product Type | Header | |
| Pitch | 7.5mm | |
| Current | 16A | |
| Number of Contacts | 6 | |
| Housing Material | Polyamide 66 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Mount Type | Through Hole | |
| Connector System | MCS | |
| Contact Material | Electrolytic Copper | |
| Contact Plating | Tin | |
| Minimum Operating Temperature | 60°C | |
| Row Pitch | 7.5mm | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 5mm | |
| Contact Gender | Male | |
| Mating Pin Length | 5mm | |
| Standards/Approvals | RoHS | |
| Voltage | 50 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Series 721 | ||
Product Type Header | ||
Pitch 7.5mm | ||
Current 16A | ||
Number of Contacts 6 | ||
Housing Material Polyamide 66 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mount Type Through Hole | ||
Connector System MCS | ||
Contact Material Electrolytic Copper | ||
Contact Plating Tin | ||
Minimum Operating Temperature 60°C | ||
Row Pitch 7.5mm | ||
Termination Type Solder | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 5mm | ||
Contact Gender Male | ||
Mating Pin Length 5mm | ||
Standards/Approvals RoHS | ||
Voltage 50 V | ||
- COO (Country of Origin):
- PL

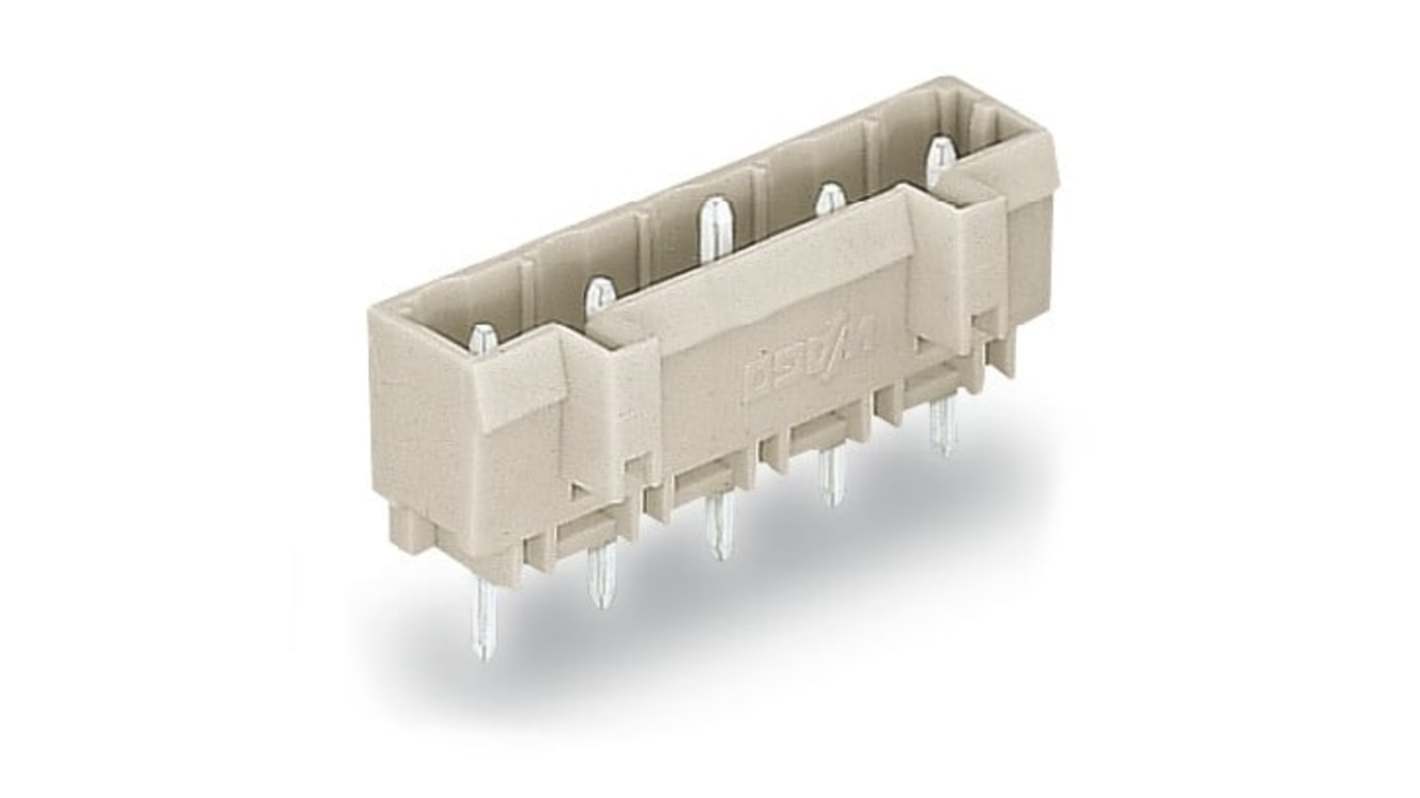

The Wago THT Male Header is designed for maximum efficiency and reliability in electronic applications. Its THT male header features a compact and robust design, ensuring seamless PCB integration and a secure connection through its innovative solder pin design. With a pin spacing of 7.5 mm and a sturdy light grey housing, this connector not only meets stringent safety and performance standards but also enhances the longevity of electronic equipment.
Compatible with multiple pole numbers for flexible configurations
Variable coding allows for tailored solutions for different applications
Supports a wide range of operating temperatures ensuring operational stability
Low weight optimises shipping and assembly processes
