WAGO 721 Series Straight Through Hole Header, 2 Contact(s), 7.5 mm Pitch, 1 Row, Shrouded
- RS Stock No.:
- 222-717
- Mfr. Part No.:
- 721-262/001-000
- Brand:
- WAGO
Subtotal (1 box of 100 units)*
£75.75
(exc. VAT)
£90.90
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £75.75 | £0.758 |
*price indicative
- RS Stock No.:
- 222-717
- Mfr. Part No.:
- 721-262/001-000
- Brand:
- WAGO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | WAGO | |
| Product Type | Header | |
| Series | 721 | |
| Pitch | 7.5mm | |
| Current | 16A | |
| Housing Material | Polyamide 66 | |
| Number of Contacts | 2 | |
| Number of Rows | 1 | |
| Orientation | Straight | |
| Shrouded/Unshrouded | Shrouded | |
| Connector System | MCS | |
| Mount Type | Through Hole | |
| Contact Plating | Tin | |
| Contact Material | Electrolytic Copper | |
| Termination Type | Solder | |
| Minimum Operating Temperature | 60°C | |
| Row Pitch | 7.5mm | |
| Contact Gender | Male | |
| Maximum Operating Temperature | 100°C | |
| Tail Pin Length | 5mm | |
| Mating Pin Length | 5mm | |
| Standards/Approvals | RoHS | |
| Voltage | 50 V | |
| Select all | ||
|---|---|---|
Brand WAGO | ||
Product Type Header | ||
Series 721 | ||
Pitch 7.5mm | ||
Current 16A | ||
Housing Material Polyamide 66 | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System MCS | ||
Mount Type Through Hole | ||
Contact Plating Tin | ||
Contact Material Electrolytic Copper | ||
Termination Type Solder | ||
Minimum Operating Temperature 60°C | ||
Row Pitch 7.5mm | ||
Contact Gender Male | ||
Maximum Operating Temperature 100°C | ||
Tail Pin Length 5mm | ||
Mating Pin Length 5mm | ||
Standards/Approvals RoHS | ||
Voltage 50 V | ||
- COO (Country of Origin):
- DE

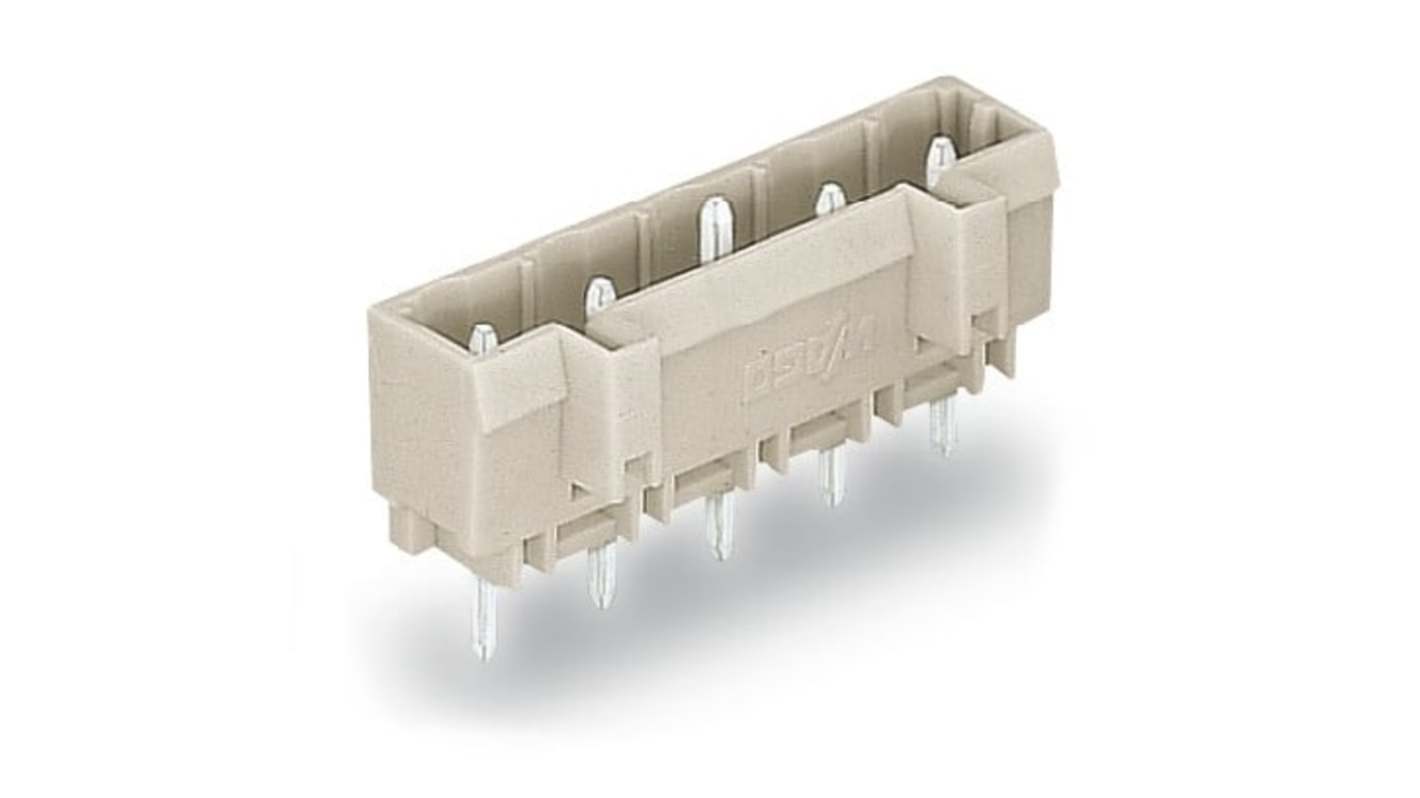

The Wago THT Male Header connector is expertly designed to enhance connectivity solutions in diverse electronic applications. With its robust construction and forward thinking design, it is ideal for use within various industries, ensuring reliable performance and exceptional durability. The light grey connector features solder pins that offer seamless integration on printed circuit boards, allowing for straightforward assembly and maintenance.
Constructed with materials that meet stringent flammability standards
Facilitates horizontal or vertical PCB mounting options for flexible configurations
Includes variable coding provisions to accommodate specific installation requirements
Boasts a low weight making it an excellent choice for lightweight designs
