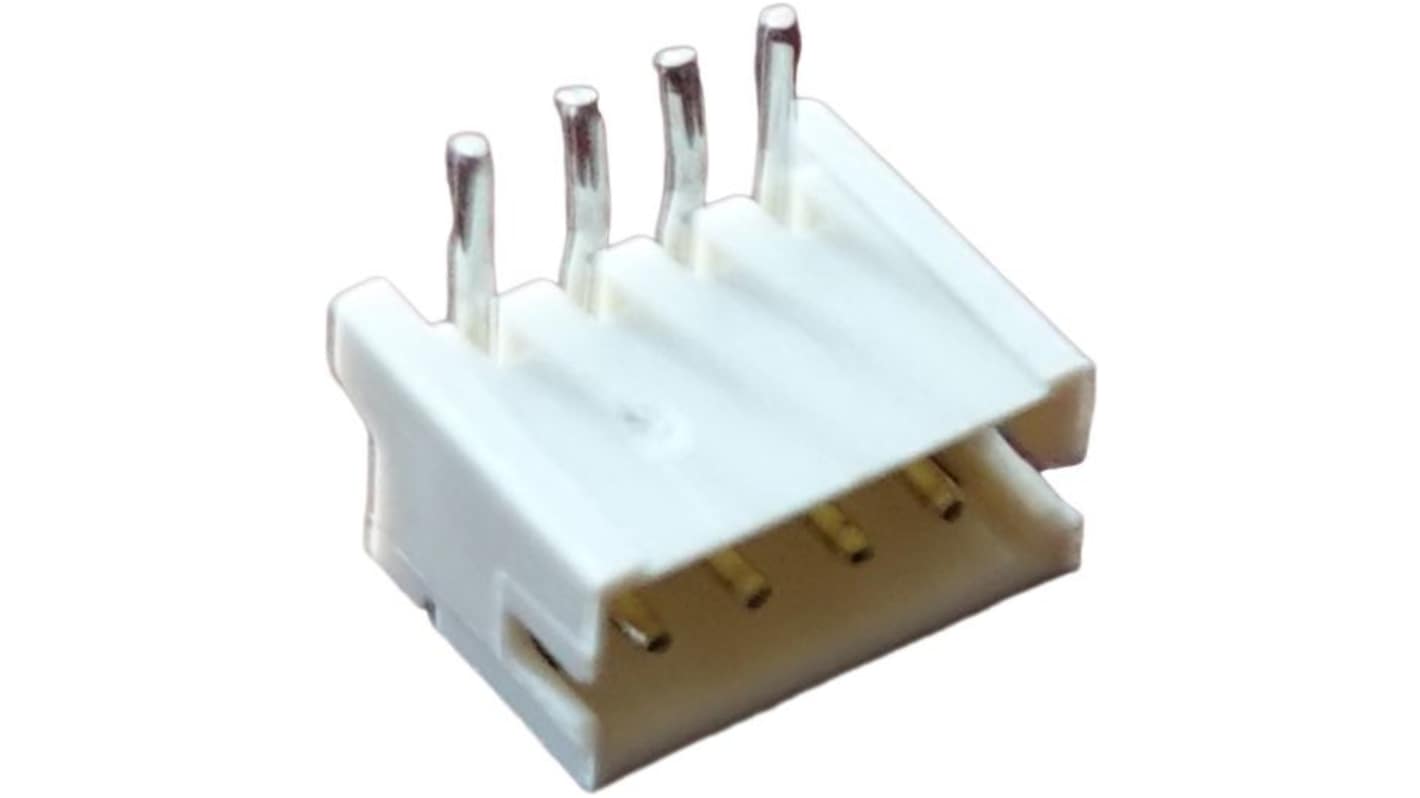

RS PRO Side Entry Through Hole PCB Header, 4 Contact(s), 1.5mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 147-126
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 5 units)*
£0.84
(exc. VAT)
£1.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £0.84 | £0.168 |
5 - 9 | £0.77 | £0.154 |
10 + | £0.70 | £0.14 |
*price indicative
- RS Stock No.:
- 147-126
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pitch | 1.5mm | |
Number of Contacts | 4 | |
Number of Rows | 1 | |
Body Orientation | Side Entry | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Through Hole | |
Termination Method | Solder | |
Contact Plating | Tin Plated | |
Contact Material | Brass | |
Current Rating | 1A | |
Tail Pin Length | 2.8mm | |
Voltage Rating | 100V | |
Gender | Male | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pitch 1.5mm | ||
Number of Contacts 4 | ||
Number of Rows 1 | ||
Body Orientation Side Entry | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Through Hole | ||
Termination Method Solder | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Current Rating 1A | ||
Tail Pin Length 2.8mm | ||
Voltage Rating 100V | ||
Gender Male | ||
- COO (Country of Origin):
- CN
RS PRO PCB Header, 1.5mm Pitch, Side Entry, 4 Way
This RS PRO PCB Header is designed for reliable and efficient connections in electronic circuits. With a 1.5mm pitch and side entry configuration, it is ideal for compact PCB designs. The shrouded design ensures secure connections, making it suitable for various industrial applications.
Features and Benefits
1.5mm pitch: Allows for compact and efficient PCB design
Voltage rating of 100V: Suitable for low to medium voltage applications
Current rating of 1.0A: Supports standard current requirements
Low mating force: Ensures easy and secure connections
Reliable contact: Brass material provides durability and conductivity
4 way side entry: Facilitates easy integration into PCB layouts
Voltage rating of 100V: Suitable for low to medium voltage applications
Current rating of 1.0A: Supports standard current requirements
Low mating force: Ensures easy and secure connections
Reliable contact: Brass material provides durability and conductivity
4 way side entry: Facilitates easy integration into PCB layouts
Applications
Commonly used in electronic devices, industrial control systems, and communication equipment where reliable PCB connections are essential.
Additional Information
Contact material is brass with tin plating for enhanced conductivity and corrosion resistance. The header is designed for through hole mounting and solder termination, ensuring a secure and stable connection.
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
