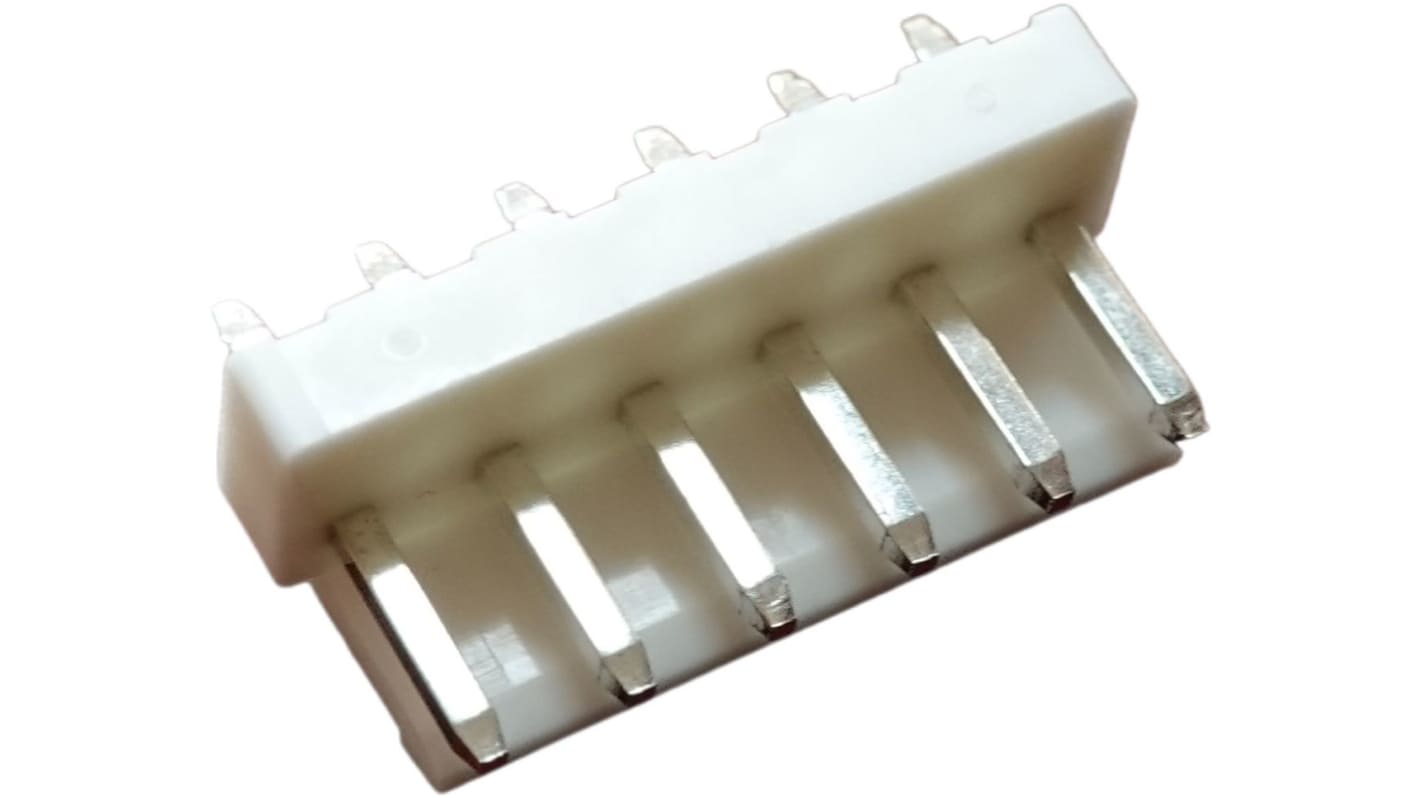

RS PRO Straight Through Hole PCB Header, 6 Contact(s), 3.96mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 147-125
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 5 units)*
£1.45
(exc. VAT)
£1.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 399 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £1.45 | £0.29 |
5 - 9 | £1.34 | £0.268 |
10 + | £1.21 | £0.242 |
*price indicative
- RS Stock No.:
- 147-125
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pitch | 3.96mm | |
Number of Contacts | 6 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Through Hole | |
Connector System | Wire to Board | |
Termination Method | Solder | |
Contact Material | Brass | |
Contact Plating | Tin Plated | |
Current Rating | 7A | |
Tail Pin Length | 3.6mm | |
Voltage Rating | 250V | |
Gender | Male | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pitch 3.96mm | ||
Number of Contacts 6 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Through Hole | ||
Connector System Wire to Board | ||
Termination Method Solder | ||
Contact Material Brass | ||
Contact Plating Tin Plated | ||
Current Rating 7A | ||
Tail Pin Length 3.6mm | ||
Voltage Rating 250V | ||
Gender Male | ||
- COO (Country of Origin):
- CN
RS PRO PCB Header, 3.96mm Pitch, 6 Way
These RS PRO PCB Headers are designed for wire-to-board connections with a 3.96 mm pitch, making them ideal for signal, power supply, or output circuit applications. Their compact size and large capacity, combined with secure locking contact and mounting, ensure reliable performance.
Features and Benefits
3.96mm pitch: Ensures compatibility with standard PCB layouts
Voltage Rating: 250V: Suitable for various electrical applications
Current Rating: 7.0A: Supports high current flow
Low insertion force: Facilitates easy installation
Reliable contact: Provides consistent electrical connection
6 Way Top Entry: Offers flexibility in design and application
Voltage Rating: 250V: Suitable for various electrical applications
Current Rating: 7.0A: Supports high current flow
Low insertion force: Facilitates easy installation
Reliable contact: Provides consistent electrical connection
6 Way Top Entry: Offers flexibility in design and application
Applications
These PCB headers are typically used in electronics manufacturing, telecommunications, and industrial control systems.
Additional Information
Contact Material: Brass, Contact Plating: Tin Plated
Mounting Type: Through Hole Mount
Termination Method: Solder
Mounting Type: Through Hole Mount
Termination Method: Solder
