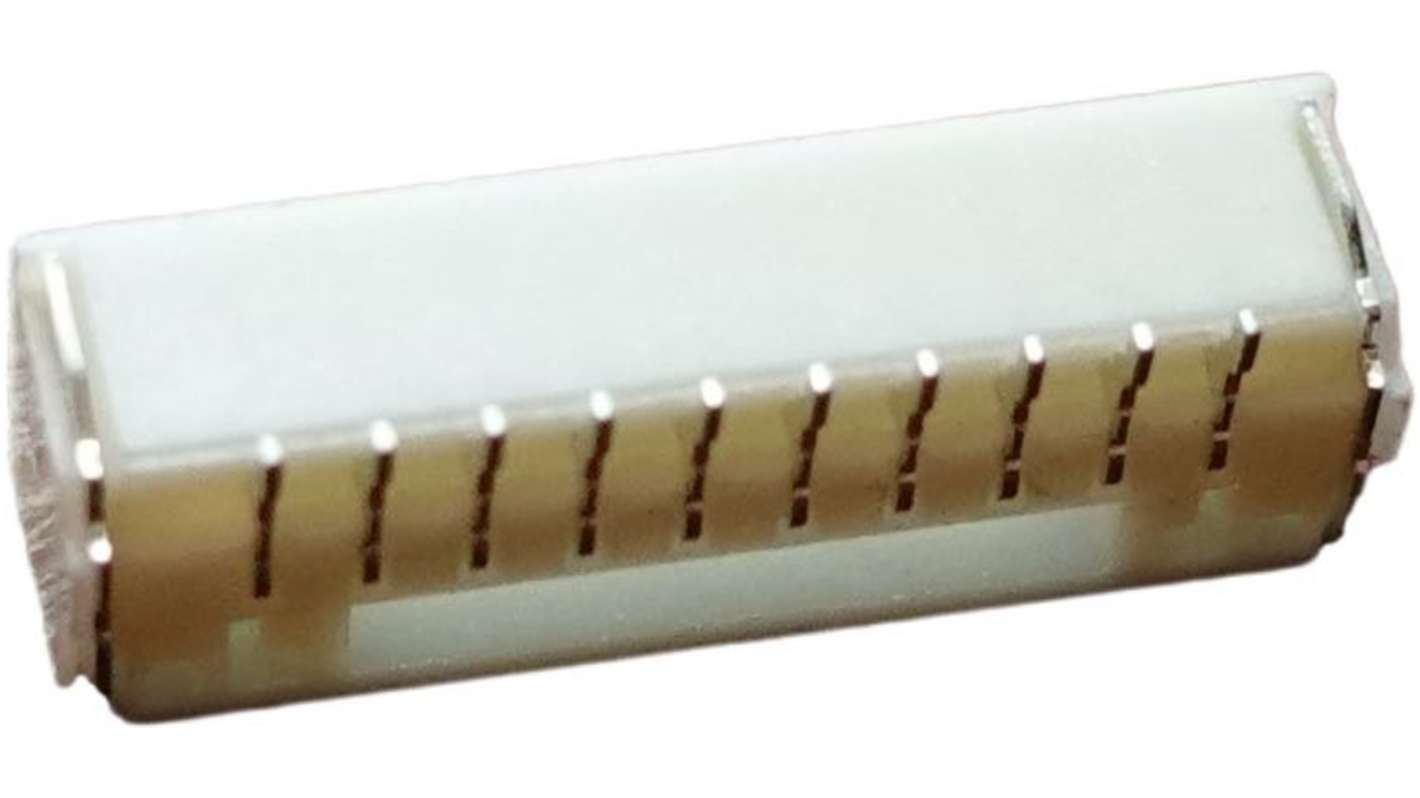

RS PRO Straight Surface Mount PCB Header, 10 Contact(s), 1.25mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 147-111
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 5 units)*
£2.48
(exc. VAT)
£2.98
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £2.48 | £0.496 |
5 - 9 | £2.29 | £0.458 |
10 + | £2.06 | £0.412 |
*price indicative
- RS Stock No.:
- 147-111
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pitch | 1.25mm | |
Number of Contacts | 10 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Shrouded | |
Mounting Type | Surface Mount | |
Connector System | Wire to Board | |
Termination Method | Solder | |
Contact Plating | Tin Plated | |
Contact Material | Brass | |
Current Rating | 1A | |
Voltage Rating | 50V | |
Gender | Male | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pitch 1.25mm | ||
Number of Contacts 10 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Mounting Type Surface Mount | ||
Connector System Wire to Board | ||
Termination Method Solder | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Current Rating 1A | ||
Voltage Rating 50V | ||
Gender Male | ||
- COO (Country of Origin):
- CN
RS PRO 1.25mm Header Top Entry 10 Way, PCB Header
This RS PRO PCB Header is designed for efficient and reliable connections in small electronic equipment such as PDP and LCD devices. With a 1.25mm pitch, it offers a secure locking structure and low insertion force, ensuring ease of use and durability.
Features and Benefits
1.25 mm pitch: Ensures compact design suitable for small electronics
Voltage Rating: 50V: Provides adequate power handling for various applications
Current Rating: 1.0A: Supports sufficient current flow for reliable performance
Low Mating Force: Facilitates easy and quick connections
Reliable contact: Ensures stable and consistent electrical connections
10 Way Top Entry PCB Header: Offers multiple connection points for versatile use
Voltage Rating: 50V: Provides adequate power handling for various applications
Current Rating: 1.0A: Supports sufficient current flow for reliable performance
Low Mating Force: Facilitates easy and quick connections
Reliable contact: Ensures stable and consistent electrical connections
10 Way Top Entry PCB Header: Offers multiple connection points for versatile use
Applications
Ideal for use in PDP, LCD, and other small electronic equipment where space and reliable connections are critical.
Additional Information
Contact material is brass with tin plating for enhanced conductivity and corrosion resistance. The shrouded design and surface mount termination method provide secure and stable connections.
