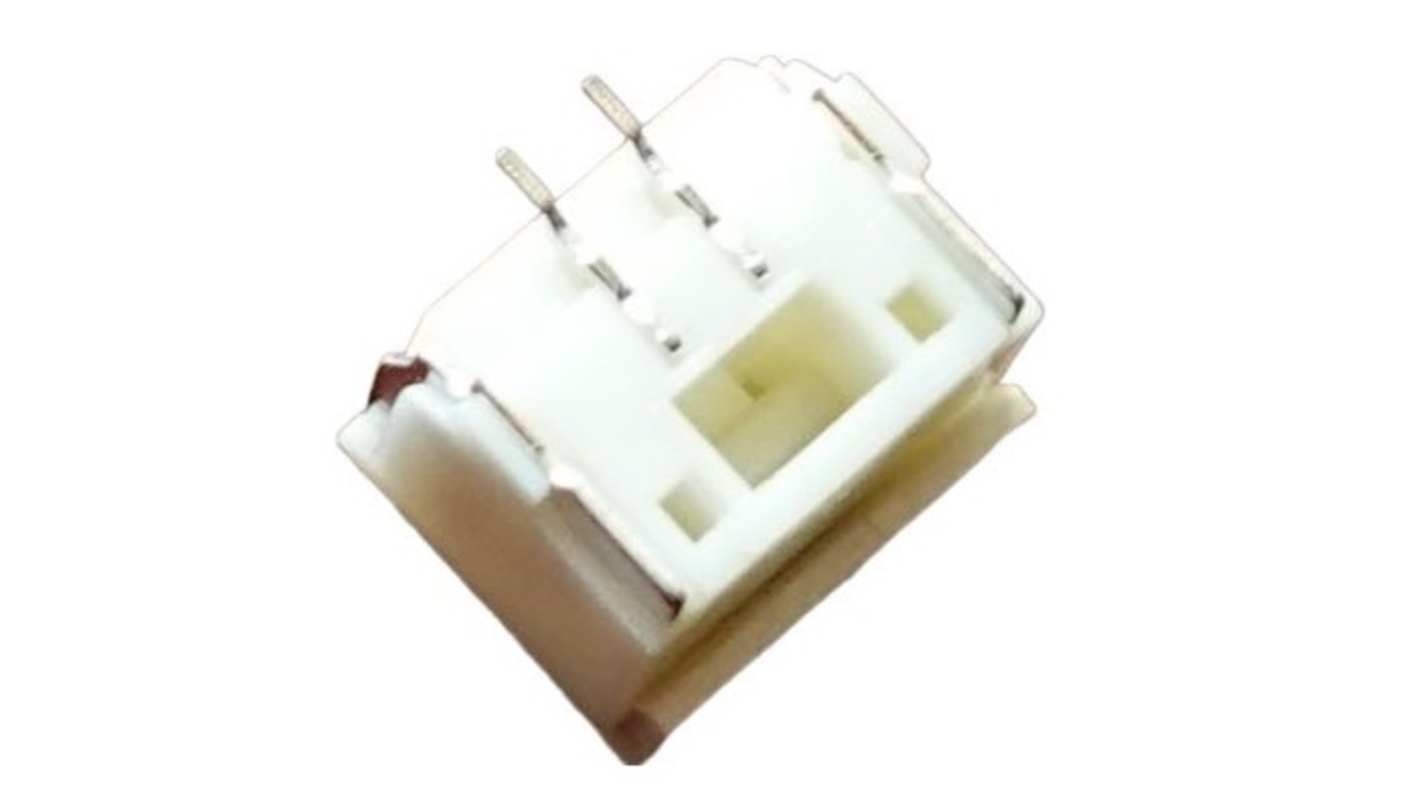

RS PRO Straight Surface Mount PCB Header, 2 Contact(s), 1.25mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 147-103
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 5 units)*
£2.41
(exc. VAT)
£2.89
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 400 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £2.41 | £0.482 |
5 - 9 | £2.21 | £0.442 |
10 + | £2.00 | £0.40 |
*price indicative
- RS Stock No.:
- 147-103
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pitch | 1.25mm | |
Number of Contacts | 2 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Shrouded | |
Connector System | Wire to Board | |
Mounting Type | Surface Mount | |
Termination Method | Solder | |
Contact Plating | Tin Plated | |
Contact Material | Brass | |
Current Rating | 1A | |
Voltage Rating | 50V | |
Gender | Male | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pitch 1.25mm | ||
Number of Contacts 2 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire to Board | ||
Mounting Type Surface Mount | ||
Termination Method Solder | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Current Rating 1A | ||
Voltage Rating 50V | ||
Gender Male | ||
- COO (Country of Origin):
- CN
RS PRO 1.25mm Header Top Entry 2 Way, PCB Header
The RS PRO 1.25mm Header Top Entry 2 Way is a reliable PCB header designed for efficient wire-to-board connections. With a low insertion force, it is ideal for use in PDP, LCD, and other small electronic equipment, ensuring secure and stable connections.
Features and Benefits
1.25 mm pitch: Ensures compact design suitable for small electronics
Voltage Rating: 50V: Supports a range of low voltage applications
Current Rating: 1.0A: Suitable for low current applications
Low Mating Force: Facilitates easy and quick connections
Reliable contact: Ensures stable and secure electrical connections
2 Way Top Entry PCB Header: Provides straightforward installation and maintenance
Voltage Rating: 50V: Supports a range of low voltage applications
Current Rating: 1.0A: Suitable for low current applications
Low Mating Force: Facilitates easy and quick connections
Reliable contact: Ensures stable and secure electrical connections
2 Way Top Entry PCB Header: Provides straightforward installation and maintenance
Applications
This PCB header is typically used in small electronic devices such as PDPs and LCDs, where compact and reliable connections are essential.
Additional Information
Contact material is brass with tin plating, enhancing durability and conductivity. The connector system is designed for wire-to-board applications with a shrouded, surface mount configuration.
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
