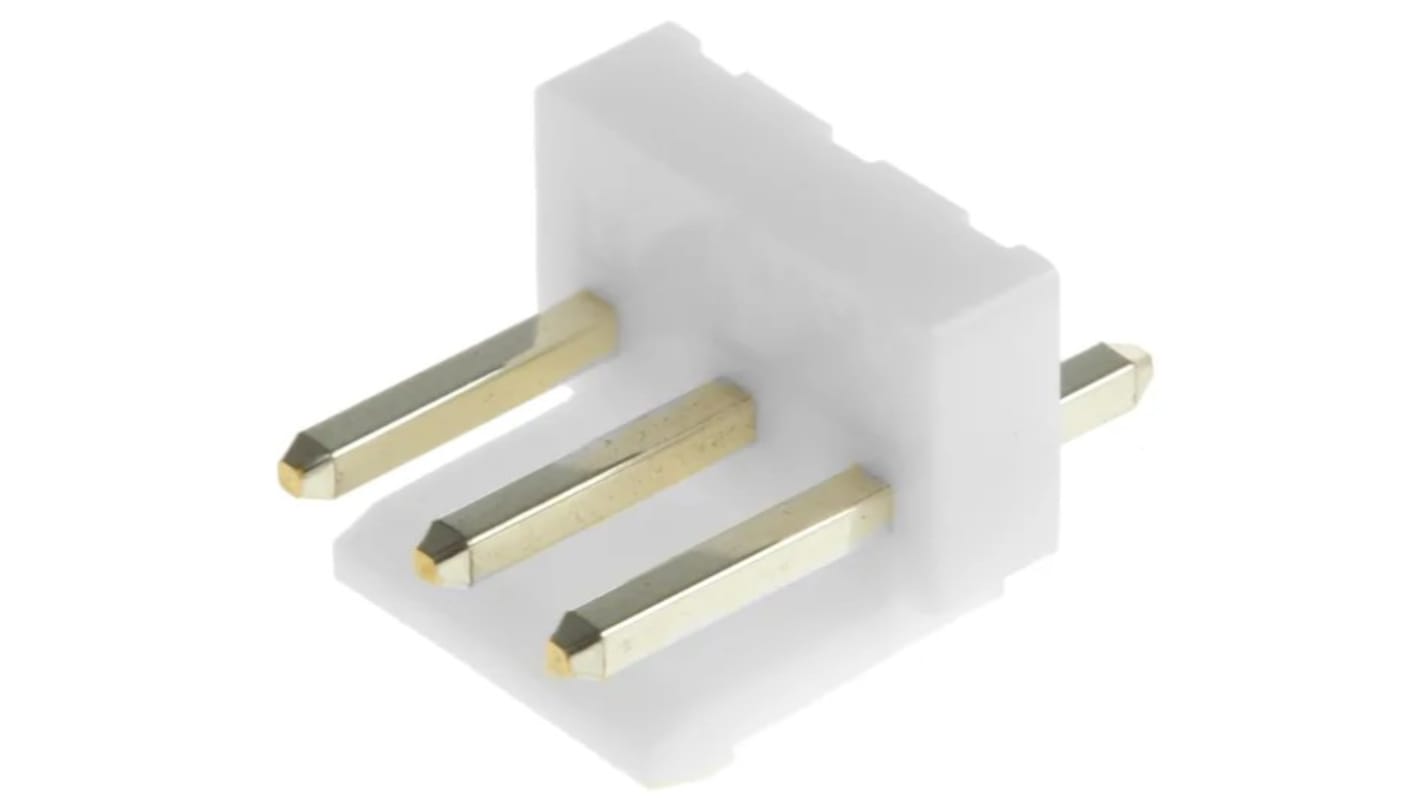

RS PRO Straight Through Hole PCB Header, 3 Contact(s), 3.96mm Pitch, 1 Row(s), Shrouded
- RS Stock No.:
- 147-058
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 bag of 5 units)*
£0.89
(exc. VAT)
£1.07
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 399 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Bag(s) | Per Bag | Per unit* |
---|---|---|
1 - 4 | £0.89 | £0.178 |
5 - 9 | £0.81 | £0.162 |
10 + | £0.73 | £0.146 |
*price indicative
- RS Stock No.:
- 147-058
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Pitch | 3.96mm | |
Number of Contacts | 3 | |
Number of Rows | 1 | |
Body Orientation | Straight | |
Shrouded/Unshrouded | Shrouded | |
Connector System | Wire to Board | |
Mounting Type | Through Hole | |
Termination Method | Solder | |
Contact Plating | Tin Plated | |
Contact Material | Brass | |
Current Rating | 7A | |
Tail Pin Length | 3.6mm | |
Voltage Rating | 250V | |
Gender | Male | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Pitch 3.96mm | ||
Number of Contacts 3 | ||
Number of Rows 1 | ||
Body Orientation Straight | ||
Shrouded/Unshrouded Shrouded | ||
Connector System Wire to Board | ||
Mounting Type Through Hole | ||
Termination Method Solder | ||
Contact Plating Tin Plated | ||
Contact Material Brass | ||
Current Rating 7A | ||
Tail Pin Length 3.6mm | ||
Voltage Rating 250V | ||
Gender Male | ||
- COO (Country of Origin):
- CN
RS PRO 3.96mm Header Top Entry 3 Way, PCB Header
These RS PRO PCB Headers are designed for efficient wire-to-board connections, featuring a 3.96 mm pitch. Ideal for signal, power supply, or output circuit applications, they offer a compact size with a large capacity, ensuring secure locking contact and mounting.
Features and Benefits
3.96mm pitch: Provides precise spacing for reliable connections
Voltage Rating: 250V: Suitable for various electrical applications
Current Rating: 7.0A: Supports high current flow
Low insertion force: Eases installation and removal
Reliable contact: Ensures consistent electrical performance
3 Way Top Entry PCB Header: Facilitates straightforward connections
Voltage Rating: 250V: Suitable for various electrical applications
Current Rating: 7.0A: Supports high current flow
Low insertion force: Eases installation and removal
Reliable contact: Ensures consistent electrical performance
3 Way Top Entry PCB Header: Facilitates straightforward connections
Applications
These PCB headers are typically used in electronic devices, power supply units, and signal processing equipment, where secure and efficient wire-to-board connections are essential.
Additional Information
Contact Material: Brass, ensuring durability and conductivity
Contact Plating: Tin Plated for corrosion resistance
Mounting Type: Through Hole Mount for robust attachment
Termination Method: Solder for secure and permanent connections
Contact Plating: Tin Plated for corrosion resistance
Mounting Type: Through Hole Mount for robust attachment
Termination Method: Solder for secure and permanent connections
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
