Molex PCB Header for use with Power, Board-to-Board
- RS Stock No.:
- 536-712
- Mfr. Part No.:
- 2195620032
- Brand:
- Molex
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£14.88
(exc. VAT)
£17.86
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 10 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | £14.88 |
| 10 + | £13.69 |
*price indicative
- RS Stock No.:
- 536-712
- Mfr. Part No.:
- 2195620032
- Brand:
- Molex
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Molex | |
| Accessory Type | PCB Header | |
| Product Type | Connector Housing | |
| For Use With | Power, Board-to-Board | |
| Colour | Black | |
| Material | High Conductive Copper Alloy, Tin, LCP, Gold | |
| Standards/Approvals | IPC 1752A Class C, Eu RoHS REACH SVHC Low-Halogen, Compliant per EU 2015/863 chemSHERPA (xml) IPC 1752A Class D Molex Product Compliance Declaration, IEC-62474 | |
| Series | 219562 | |
| Select all | ||
|---|---|---|
Brand Molex | ||
Accessory Type PCB Header | ||
Product Type Connector Housing | ||
For Use With Power, Board-to-Board | ||
Colour Black | ||
Material High Conductive Copper Alloy, Tin, LCP, Gold | ||
Standards/Approvals IPC 1752A Class C, Eu RoHS REACH SVHC Low-Halogen, Compliant per EU 2015/863 chemSHERPA (xml) IPC 1752A Class D Molex Product Compliance Declaration, IEC-62474 | ||
Series 219562 | ||
- COO (Country of Origin):
- MY

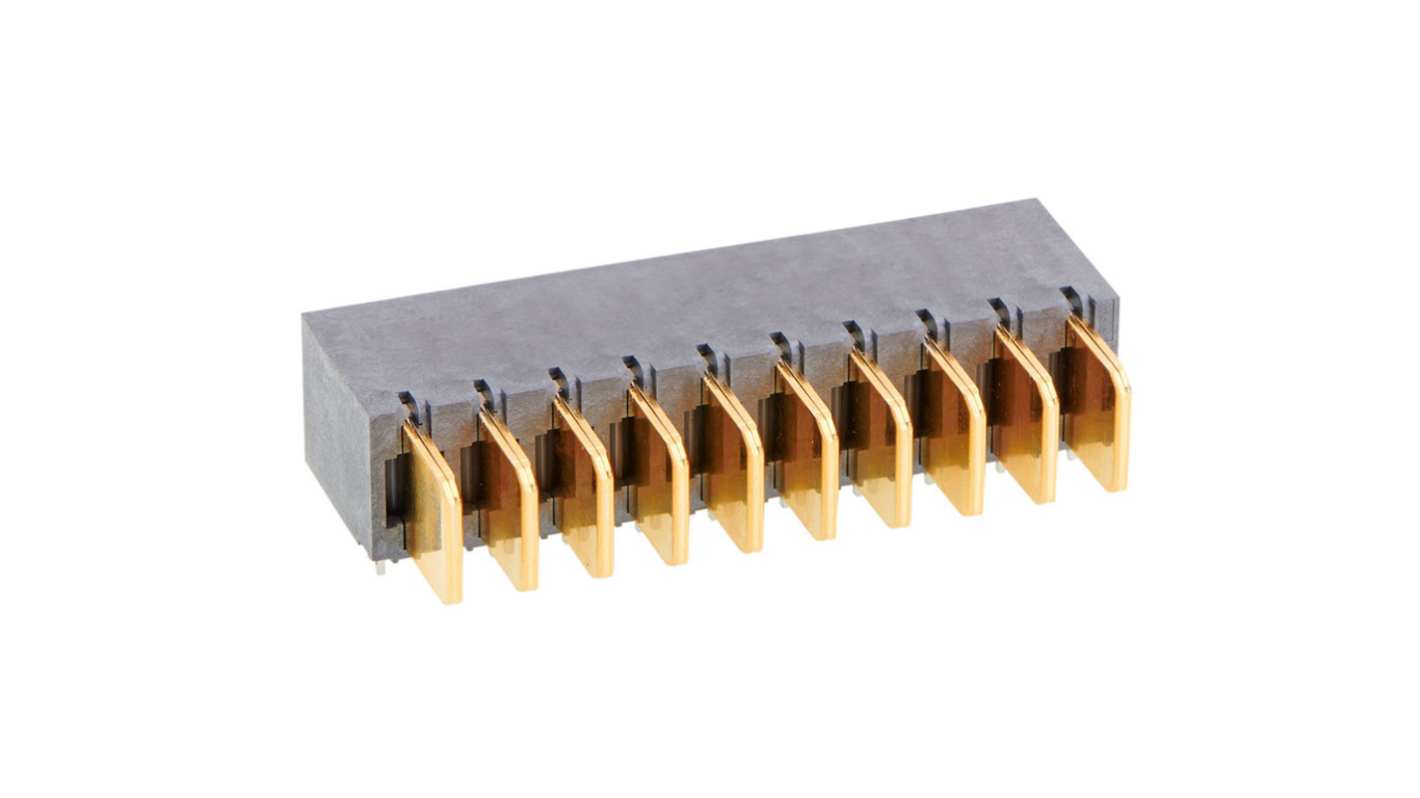

The Molex EXTreme Guardian HD Right Angle Plug Assembly is engineered for superior performance in high demand applications. Designed with two power circuits, its robust construction ensures reliable power delivery while maintaining optimal signal integrity. This connector is tailor made for board to board applications, making it an ideal choice for power management systems. The innovative design features liquid crystal polymer for enhanced durability and a black resin finish that adds a professional touch.
Designed for enhanced durability with high conductivity copper materials
Right angle orientation minimising additional space requirements
Low halogen construction for environmentally conscious applications
Mated height of 12.74mm optimises density on the PCB
Compatibility with multiple other components in the EXTreme Guardian HD series
Plated with gold for superior mating reliability and longevity
Engineered to endure a rugged environment with a flammability rating of 94V 0
190 cycles of durability ensure longevity in demanding applications
