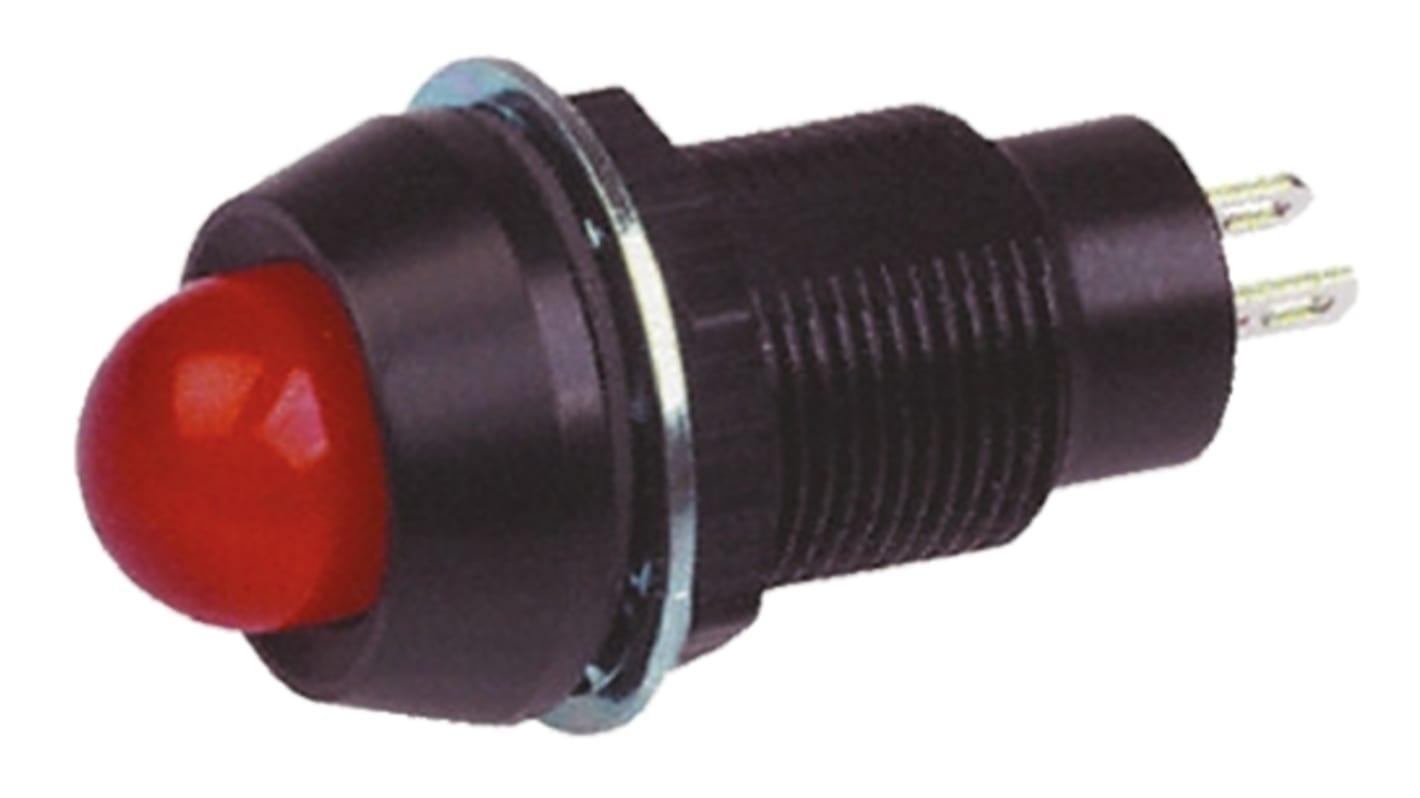

Marl Panel Mount LED Indicator, Red Panel Mount Indicator 651 Series Series, 12.7 mm, Solder Tab Termination, IP67 28V
- RS Stock No.:
- 249-8588
- Mfr. Part No.:
- 651-102-22
- Brand:
- Marl
Subtotal (1 unit)*
£36.43
(exc. VAT)
£43.72
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 412 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £36.43 |
*price indicative
- RS Stock No.:
- 249-8588
- Mfr. Part No.:
- 651-102-22
- Brand:
- Marl
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marl | |
| Product Type | Panel Mount Indicator | |
| Lens Colour | Red | |
| Maximum Forward Current | 20mA | |
| Sub Type | Panel Mount LED Indicator | |
| LED Colour | Red | |
| Terminal Type | Solder Tab | |
| IP Rating | IP67 | |
| Mount Hole Size | 12.7 mm | |
| Viewing Angle | Wide | |
| Minimum Supply Voltage | 24V | |
| Maximum Supply Voltage | 28V dc | |
| Multicolour/Single Colour | Single Colour | |
| Input Voltage Type | DC | |
| Luminous Intensity | 500mcd | |
| Length | 38.5mm | |
| Standards/Approvals | RoHS,IP67,BS EN ISO 9001:2000 Approved Manufacturer | |
| Series | 651 Series | |
| Lens Finish | Domed | |
| Select all | ||
|---|---|---|
Brand Marl | ||
Product Type Panel Mount Indicator | ||
Lens Colour Red | ||
Maximum Forward Current 20mA | ||
Sub Type Panel Mount LED Indicator | ||
LED Colour Red | ||
Terminal Type Solder Tab | ||
IP Rating IP67 | ||
Mount Hole Size 12.7 mm | ||
Viewing Angle Wide | ||
Minimum Supply Voltage 24V | ||
Maximum Supply Voltage 28V dc | ||
Multicolour/Single Colour Single Colour | ||
Input Voltage Type DC | ||
Luminous Intensity 500mcd | ||
Length 38.5mm | ||
Standards/Approvals RoHS,IP67,BS EN ISO 9001:2000 Approved Manufacturer | ||
Series 651 Series | ||
Lens Finish Domed | ||
- COO (Country of Origin):
- GB
LED Indicator, 12.7mm Mount, 5/12/24Vdc, 651 Series
All products are sealed to IP67, have a mounting hole of 12.7mm, life expectancy of 90000 hours and are supplied with sealing washer, fixing nut and lock washer.
10mm coloured diffused domed lens
Body designed to prevent rotation
17mm bezel, black anodised aluminium housing
Fully internally potted
Shock and vibration resistant
0.11in. (2.8 x 0.5mm) terminals
