Marl Panel Mount LED Indicator, Green Panel Mount Indicator 651 Series Series, 12.7 mm, Solder Tab Termination, IP67
- RS Stock No.:
- 249-8471
- Mfr. Part No.:
- 651-114-04
- Brand:
- Marl

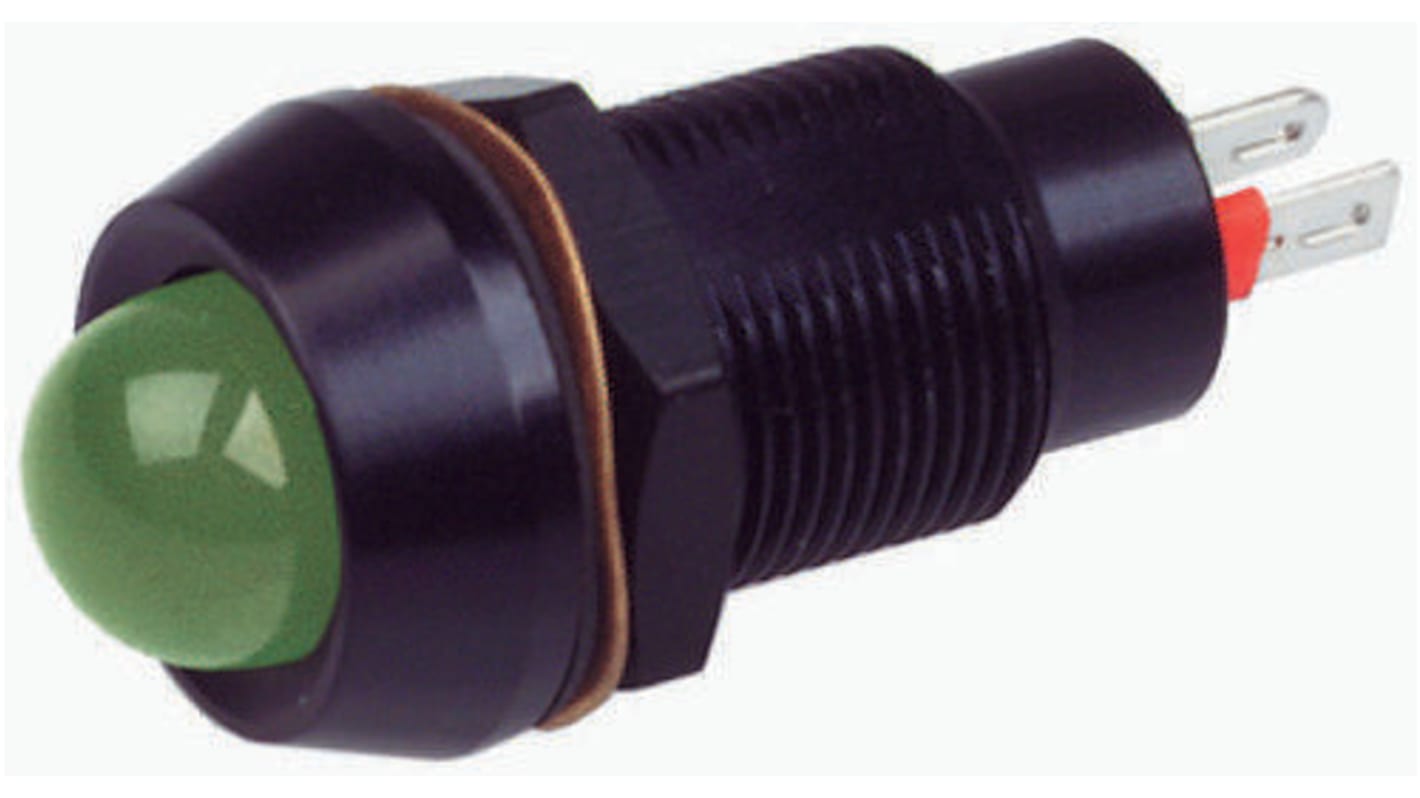

Image representative of range
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 249-8471
- Mfr. Part No.:
- 651-114-04
- Brand:
- Marl
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marl | |
| Lens Colour | Green | |
| Product Type | Panel Mount Indicator | |
| Maximum Forward Current | 20mA | |
| Sub Type | Panel Mount LED Indicator | |
| LED Colour | Green | |
| Terminal Type | Solder Tab | |
| IP Rating | IP67 | |
| Mount Hole Size | 12.7 mm | |
| Viewing Angle | Wide | |
| Maximum Supply Voltage | 2.2V dc | |
| Input Voltage Type | DC | |
| Multicolour/Single Colour | Single Colour | |
| Luminous Intensity | 45mcd | |
| Standards/Approvals | RoHS,IP67,BS EN ISO 9001:2000 Approved Manufacturer | |
| Length | 38.5mm | |
| Series | 651 Series | |
| Select all | ||
|---|---|---|
Brand Marl | ||
Lens Colour Green | ||
Product Type Panel Mount Indicator | ||
Maximum Forward Current 20mA | ||
Sub Type Panel Mount LED Indicator | ||
LED Colour Green | ||
Terminal Type Solder Tab | ||
IP Rating IP67 | ||
Mount Hole Size 12.7 mm | ||
Viewing Angle Wide | ||
Maximum Supply Voltage 2.2V dc | ||
Input Voltage Type DC | ||
Multicolour/Single Colour Single Colour | ||
Luminous Intensity 45mcd | ||
Standards/Approvals RoHS,IP67,BS EN ISO 9001:2000 Approved Manufacturer | ||
Length 38.5mm | ||
Series 651 Series | ||
- COO (Country of Origin):
- GB
LED Indicators 12.7mm Mount, 651 Series
10mm tinted diffused domed lens
Black anodised aluminium housing
IP67 rated
Fully internally potted
Shock and vibration resistant
Body designed to prevent rotation
0.11in. (2.8 x 0.5mm) terminals
6mm length solder terminal connection
Life Expectancy: 90000 Hours
10mm - 15.8mm Mounting
All products have a reverse voltage of 5V.
Note
These LED indicators should not be operated without a suitable series resistor or other current-limiting device
Supplied with
sealing washer, fixing nut, lock washer.
