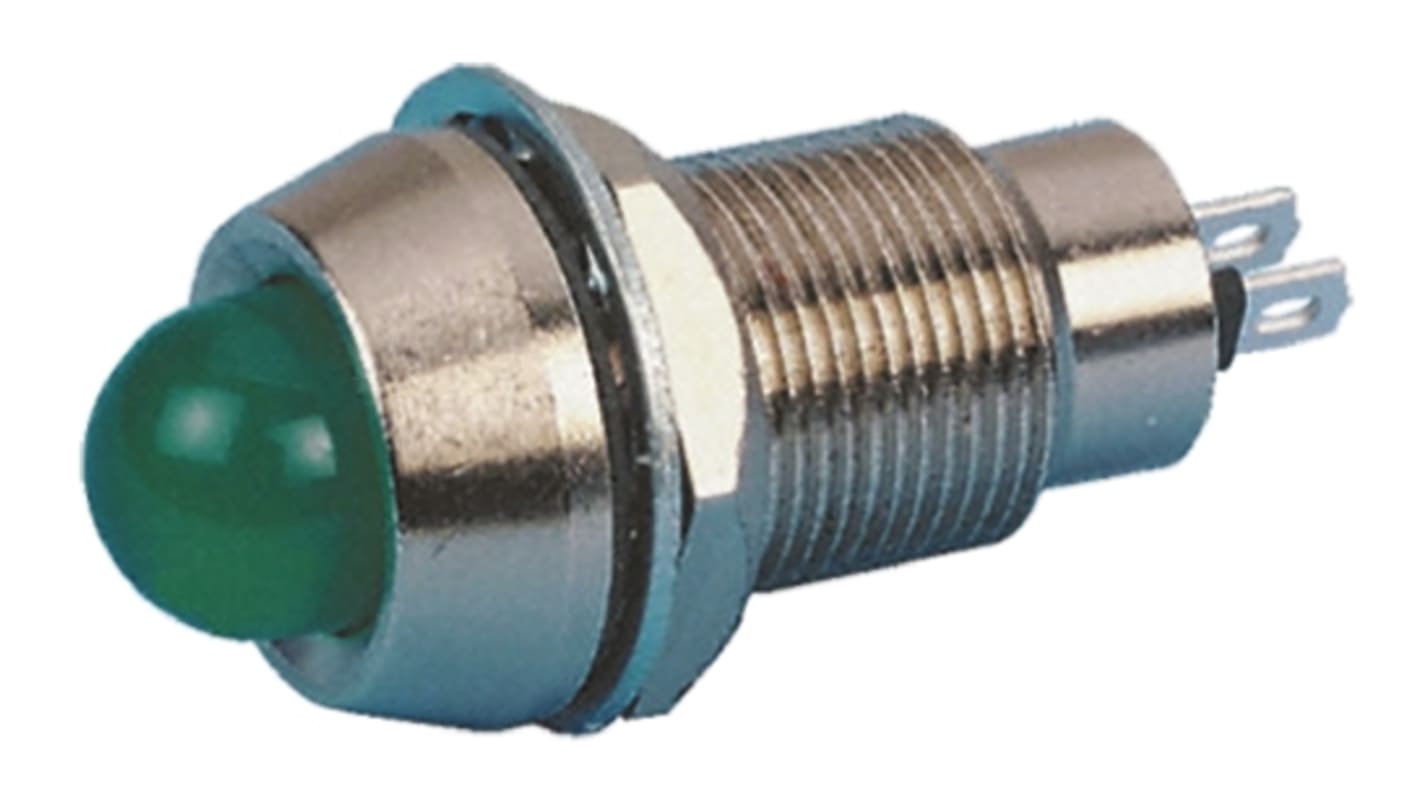

Marl Panel Mount LED Indicator, Green Panel Mount Indicator 514 Series, 12.7 mm, Solder Tab Termination, IP67 230V ac
- RS Stock No.:
- 360-5298
- Mfr. Part No.:
- 514-114-76
- Brand:
- Marl
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£45.83
(exc. VAT)
£55.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 40 unit(s) shipping from 15 October 2026
- Plus 40 unit(s) shipping from 12 November 2026
- Plus 40 unit(s) shipping from 10 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 24 | £45.83 |
| 25 - 49 | £40.89 |
| 50 - 99 | £35.75 |
| 100 - 249 | £30.71 |
| 250 + | £25.67 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£36.94
(exc. VAT)
£44.33
(inc. VAT)
- RS Stock No.:
- 360-5298
- Mfr. Part No.:
- 514-114-76
- Brand:
- Marl
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Marl | |
| Product Type | Panel Mount Indicator | |
| Lens Colour | Green | |
| Maximum Forward Current | 3mA | |
| Sub Type | Panel Mount LED Indicator | |
| Terminal Type | Solder Tab | |
| LED Colour | Green | |
| IP Rating | IP67 | |
| Viewing Angle | Wide | |
| Mount Hole Size | 12.7 mm | |
| Maximum Supply Voltage | 230V ac | |
| Multicolour/Single Colour | Single Colour | |
| Input Voltage Type | AC | |
| Luminous Intensity | 3mcd | |
| Standards/Approvals | CE, UKCA, RoHS | |
| Length | 38.5mm | |
| Series | 514 | |
| Lens Finish | Domed | |
| Select all | ||
|---|---|---|
Brand Marl | ||
Product Type Panel Mount Indicator | ||
Lens Colour Green | ||
Maximum Forward Current 3mA | ||
Sub Type Panel Mount LED Indicator | ||
Terminal Type Solder Tab | ||
LED Colour Green | ||
IP Rating IP67 | ||
Viewing Angle Wide | ||
Mount Hole Size 12.7 mm | ||
Maximum Supply Voltage 230V ac | ||
Multicolour/Single Colour Single Colour | ||
Input Voltage Type AC | ||
Luminous Intensity 3mcd | ||
Standards/Approvals CE, UKCA, RoHS | ||
Length 38.5mm | ||
Series 514 | ||
Lens Finish Domed | ||
- COO (Country of Origin):
- GB
LED Indicator, 12.7mm Mount, 24/110/230Vac, 514 Series
10mm coloured diffused domed lens
IP67 rated
17mm bright nickel plated brass housing
Full internal encapsulation
Shock and vibration resistant
0.11in. (2.8x0.5mm) terminals
Supplied with
sealing washer, fixing nut and lock washer
