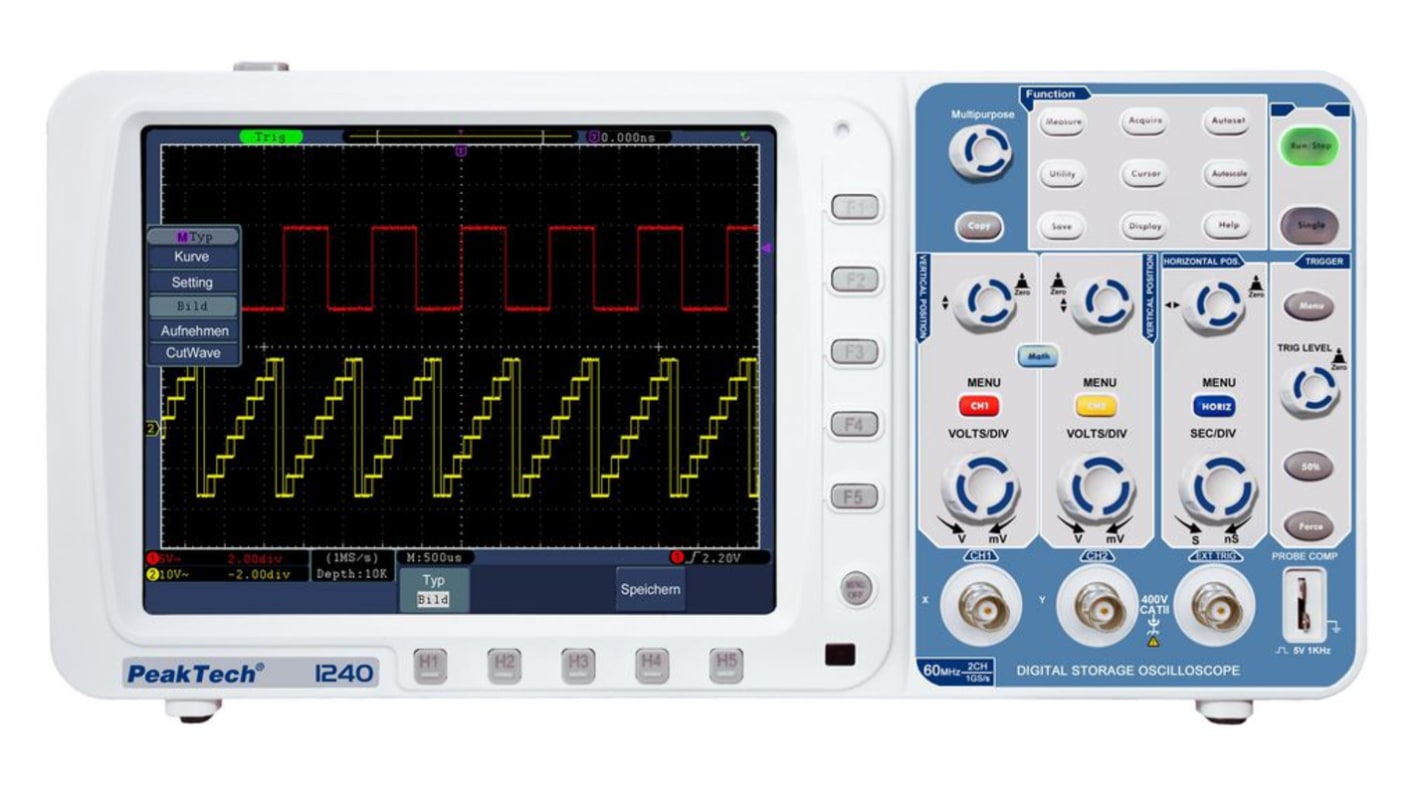

PeakTech 1200 Series, 60 MHz Bench Oscilloscope 2-Channel
- RS Stock No.:
- 288-5062
- Distrelec Article No.:
- 110-95-193
- Mfr. Part No.:
- P1240
- Brand:
- PeakTech
Subtotal (1 unit)*
£429.07
(exc. VAT)
£514.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £429.07 |
*price indicative
- RS Stock No.:
- 288-5062
- Distrelec Article No.:
- 110-95-193
- Mfr. Part No.:
- P1240
- Brand:
- PeakTech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | PeakTech | |
| Product Type | Oscilloscope | |
| Bandwidth | 60MHz | |
| Number of Channels | 2 | |
| Oscilloscope Type | Bench | |
| Interface Type | LAN, USB, VGA | |
| Series | 1200 | |
| Standards/Approvals | No | |
| Length | 7mm | |
| Width | 340 mm | |
| Height | 155mm | |
| Vertical Resolution | 8 bit | |
| Rise Time | 5.8ns | |
| Minimum Vertical Sensitivity | 2mV/div | |
| Maximum Time Base | 100s/div | |
| Minimum Time Base | 5ns/div | |
| Select all | ||
|---|---|---|
Brand PeakTech | ||
Product Type Oscilloscope | ||
Bandwidth 60MHz | ||
Number of Channels 2 | ||
Oscilloscope Type Bench | ||
Interface Type LAN, USB, VGA | ||
Series 1200 | ||
Standards/Approvals No | ||
Length 7mm | ||
Width 340 mm | ||
Height 155mm | ||
Vertical Resolution 8 bit | ||
Rise Time 5.8ns | ||
Minimum Vertical Sensitivity 2mV/div | ||
Maximum Time Base 100s/div | ||
Minimum Time Base 5ns/div | ||
- COO (Country of Origin):
- CN
The 20 cm LCD with 65536 colors and 800 x 600 pixel resolution is a versatile device with 2 channels for normal, peak detect, and average input signals. It offers a wide range of vertical and horizontal systems for precise measurements and accurate readings.
2 channels for simultaneous measurements
Various input coupling options including AC, DC, and GND
High input impedance of 1 MW +/- 2% in parallel with 15 pF +/- 5 pF
Multiple trigger types such as edge, video, pulse, and slope
10 M points record length for detailed analysis
Interfaces include USB 2.0, VGA, and LAN for connectivity
