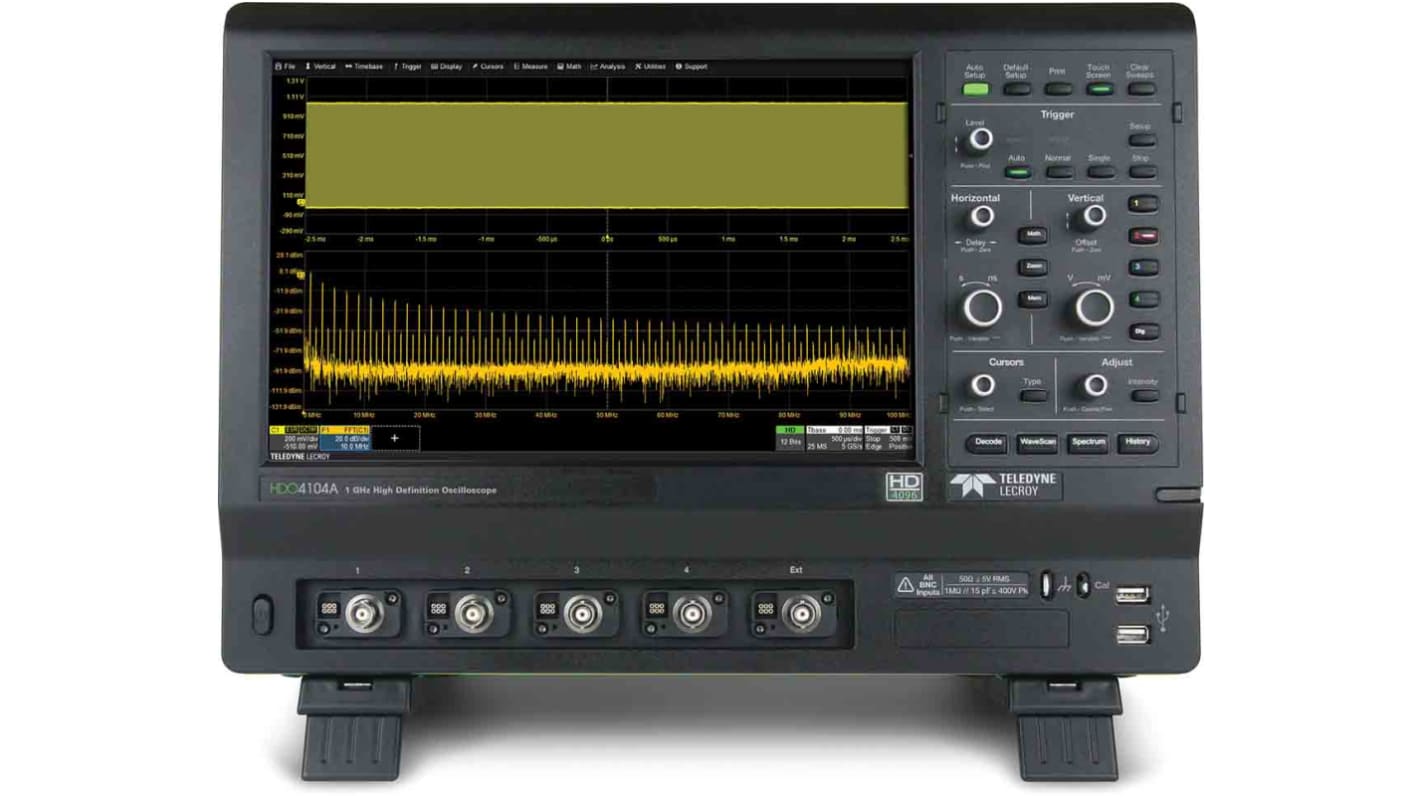

Teledyne LeCroy HDO4104A HDO4000A Series, 1GHz Bench Oscilloscope, 4 Analogue Channels - RS Calibrated

RS Stock No.:: 280-6449
Mfr. Part No.:: HDO4104A
Brand:: Teledyne LeCroy

Teledyne LeCroy HDO4104A HDO4000A Series, 1GHz Bench Oscilloscope, 4 Analogue Channels - RS Calibrated

Subtotal (1 unit)*

£26,552.00

(exc. VAT)

£31,862.40

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

1 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£26,552.00

*price indicative

Don't forget your Probe

Whatever Oscilloscope you're in the market for, we have the probe to match.

Shop our full range of Probes here

RS Stock No.:: 280-6449
Mfr. Part No.:: HDO4104A
Brand:: Teledyne LeCroy

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Teledyne LeCroy
	Bandwidth	1GHz
	Number of Analogue Channels	4
	Calibrated	RSCAL
	Oscilloscope Type	Bench
	Oscilloscope Form	Digital Storage
	Interface	CAN, IIC, LIN, RS232, SPI, UART, USB
	Sample Rate Random	10 Gsps, 125 Gsps
	Screen Size	12.1in
	Series	HDO4000A
	Record Length	12.5M points/ch
	Power Source	Mains
	Minimum Time Base	200ps/div
	Vertical Resolution	12 bit, 15 bit
	Dimensions	291.7 x 339.4 x 131.31mm
	Weight	5.9kg
	Minimum Vertical Sensitivity	1mV/div
	Digital/Analogue	Digital
	Maximum Vertical Sensitivity	10V/div
	Display Type	TFT LCD
	Rise Time	450ps
	Safety Category	CAT II 300V

	Select all
	Brand Teledyne LeCroy
	Bandwidth 1GHz
	Number of Analogue Channels 4
	Calibrated RSCAL
	Oscilloscope Type Bench
	Oscilloscope Form Digital Storage
	Interface CAN, IIC, LIN, RS232, SPI, UART, USB
	Sample Rate Random 10 Gsps, 125 Gsps
	Screen Size 12.1in
	Series HDO4000A
	Record Length 12.5M points/ch
	Power Source Mains
	Minimum Time Base 200ps/div
	Vertical Resolution 12 bit, 15 bit
	Dimensions 291.7 x 339.4 x 131.31mm
	Weight 5.9kg
	Minimum Vertical Sensitivity 1mV/div
	Digital/Analogue Digital
	Maximum Vertical Sensitivity 10V/div
	Display Type TFT LCD
	Rise Time 450ps
	Safety Category CAT II 300V

Teledyne LeCroy HDO4000A Series Oscilloscopes with HD4096 Technology

Oscilloscopes are tools used by engineers, designers, and technicians to analyse and measure complicated electronic signals. Oscilloscopes enable you to develop and verify high-performance systems and electronic designs. They are an indispensable tool in any workshop, laboratory or test station.

Options include:
HDO4024A 200MHz - 1368336
HDO4034A 350MHz - 1368337
HDO4054A 500MHz - 136-8338
HDO4104A 1GHz - 1368339

HDO4000A Series

Teledyne LeCroy’s HDO4000A series of digital oscilloscopes come with 4 input channels 12-bit resolution and are available in bandwidths ranging from 200 MHz up to 1 GHz. Compact and only 5” deep the HDO4000A oscilloscopes are one of the most space-efficient bench scopes around. Combine this with Teledyne LeCroy’s HD4096 HD technology, long memory, and a compact form factor the HDO4000A series of oscilloscopes provide superior and uncompromised measurement performance.

With a large 12.1” multi-touch colour LCD display and mixed-signal capabilities the Teledyne LeCroy HDO4000A oscilloscopes are the ideal instrument for debug and troubleshooting. Particularly in power electronics designs, digital power management, power integrity analysis, automotive electronics and embedded or mechatronics designs.

Features and Benefits

High-definition digital storage oscilloscope with 12-bit ADC resolution

4 Analog channels

200 MHz, 350 MHz, 500 MHz and 1 GHz bandwidths

Long memory – up to 50 Mpts

2.1” easy to read WXGA multi-touch screen display

Extensive signal triggering function

Advanced digital debug tools

Wavescan advanced Search and find

Advanced math and measure including statistics and histocons

History mode waveform playback

Advanced waveform capture with sequence mode

Features Lab Notebook Documentation and Report Generator tools

Includes LAN and USB ports for connectivity

What is HD4096 Technology?

HD4096 technology enables the capture and display of signals up to 1 GHz with a high sample rate and 16 times more resolution than other digital oscilloscopes. The waveform is displayed with precision, accuracy and clear detail.

MAUI with OneTouch

The Most Advanced User Interface or MAUI provides the user with superior user experience. Designed for touch, the unique feature allows you to operate the scope exactly like a phone or tablet. All the important oscilloscope controls are accessed through the intelligent touch screen, simply flick or drag and drop. MAUI with OneTouch dramatically reduces set up time and helps identify problems and find solutions quickly.

Applications

Digital oscilloscopes are used in a wide array of applications in a multitude of different industries. The oscilloscope is a vital piece of equipment for any professional who is designing, testing or repairing electronic equipment. Some of the most common are;

Automotive industry

Power electronics industry

Telecommunications

Military

Mechatronics

Diagnostics

Why Teledyne LeCroy?

Teledyne LeCroy oscilloscopes and probes have been designed, manufactured and tested to the highest standards. This ensures high reliability and quality. In the unlikely event, you experience any problems all Teledyne LeCroy digital oscilloscopes are covered by a 3-year manufactures warranty and probes a 1-year warranty.

FAQ’s

Q: Are there any accessories available?

A: Yes, a wide range of software packages and probes are available for use with the HDO4000A digital oscilloscopes, they are;

Software Packages

878-7635 is for the HDO4K-Auto

878-7654 is for the HD04K-EMB

878-7749 Is for the HDO4K-PWR

Current Probes

801-4858 is for the CP030

724-0911 is for the CP031

801-4855 is for the CP150

Current Probe and Clamp

724-0918 is for the CP500

Test Probe

144-4394 is for the RP4030

Differential Probes

738-9366 is for the ZD1000

878-7613 is for the ZD500

HV Differential Probes

174-8867 is for the HVD3102A

174-8866 is for the HVD3102A-NOACC

918-6866 is for the HVD3206-6M

878-7601 is for the HVD3106-6M

174-8872 is for the HVD3206A-6M

174-8870 is for the HVD3106A-6M

174-8868 is for the HVD3106A-NOACC

174-8873 is for the HVD3605A

174-8871 is for the HVD3206A

174-8869 is for the HVD3106A
