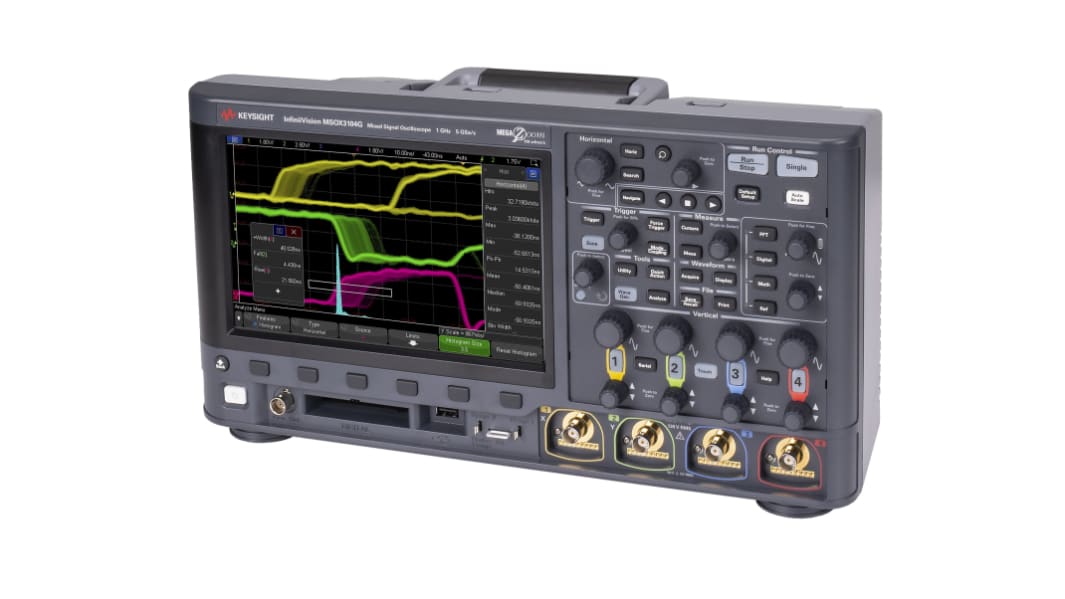

Keysight Technologies MSOX3052G InfiniiVision 3000G X Series, 500MHz Bench Oscilloscope, 2 Analogue Channels, 16
- RS Stock No.:
- 237-2487
- Mfr. Part No.:
- MSOX3052G
- Brand:
- Keysight Technologies
Subtotal (1 unit)*
£12,838.21
(exc. VAT)
£15,405.85
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £12,838.21 |
*price indicative
- RS Stock No.:
- 237-2487
- Mfr. Part No.:
- MSOX3052G
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Keysight Technologies | |
| Bandwidth | 500MHz | |
| Number of Analogue Channels | 2 | |
| Number of Digital Channels | 16 | |
| Calibrated | RSCAL | |
| Oscilloscope Type | Bench | |
| Oscilloscope Form | Mixed Signal | |
| Memory Depth | 2Mpts | |
| Sample Rate Random | 5 Gsps half channels, 2.5 Gsps | |
| Screen Size | 8.5in | |
| Series | InfiniiVision 3000G X | |
| Weight | 4.2kg | |
| Dimensions | 381 x 204 x 142mm | |
| Vertical Resolution | 8 bit | |
| Input Impedance | 1 MΩ | |
| Digital/Analogue | Digital | |
| Display Type | Capacitive Touch Gesture-Enabled Display | |
| Input Capacitance | 8 pF | |
| Rise Time | ≤700ps | |
Select all | ||
|---|---|---|
Brand Keysight Technologies | ||
Bandwidth 500MHz | ||
Number of Analogue Channels 2 | ||
Number of Digital Channels 16 | ||
Calibrated RSCAL | ||
Oscilloscope Type Bench | ||
Oscilloscope Form Mixed Signal | ||
Memory Depth 2Mpts | ||
Sample Rate Random 5 Gsps half channels, 2.5 Gsps | ||
Screen Size 8.5in | ||
Series InfiniiVision 3000G X | ||
Weight 4.2kg | ||
Dimensions 381 x 204 x 142mm | ||
Vertical Resolution 8 bit | ||
Input Impedance 1 MΩ | ||
Digital/Analogue Digital | ||
Display Type Capacitive Touch Gesture-Enabled Display | ||
Input Capacitance 8 pF | ||
Rise Time ≤700ps | ||
- COO (Country of Origin):
- MY
MSOX3052G Mixed Signal Oscilloscope
The MSOX3052G from Keysight Technologies is part of the high performance InfiniiVision 3000G X-series oscilloscopes and has a bandwidth of 500MHz.
If you are looking for a high-performance, feature-rich oscilloscope that combines digital and analog measurement capabilities, the MSOX3052G mixed signal oscilloscopes will be your instrument of choice. These versatile digital instruments can help you maintain high test speed and flexibilty in the most complex applications and provides engineers with a flexible solution for collecting performance and debug information from today’s complex embedded systems. The instrument delivers the industry’s best visualisation technology, as well as exceptional data capture properties and precise waveform measurements.
These oscilloscopes offer high-end technology in a small form factor. Its intuitive touch user-interface, industry-leading waveform update rate, zone trigger and standard features enables you to capture and isolate elusive glitches which cannot be performed on other scopes.
If you are looking for a high-performance, feature-rich oscilloscope that combines digital and analog measurement capabilities, the MSOX3052G mixed signal oscilloscopes will be your instrument of choice. These versatile digital instruments can help you maintain high test speed and flexibilty in the most complex applications and provides engineers with a flexible solution for collecting performance and debug information from today’s complex embedded systems. The instrument delivers the industry’s best visualisation technology, as well as exceptional data capture properties and precise waveform measurements.
These oscilloscopes offer high-end technology in a small form factor. Its intuitive touch user-interface, industry-leading waveform update rate, zone trigger and standard features enables you to capture and isolate elusive glitches which cannot be performed on other scopes.
The Keysight Technologies has InfiniiVision 3000G X-series oscilloscopes with bandwidth of 500 MHz offer high-end technology in a small form factor. Its intuitive touch user-interface, industry-leading waveform update rate, and zone trigger can capture and isolate elusive glitches. This oscilloscope has 2 analog channels and 16 digital channels.
Features and Benefits:
High performance mask and measurement limit testing enabled in hardware
Frequency response analysis
Best in usability
Designed for touch operation to simplify use
Waveform and measurement histograms
Built-in function, arbitrary waveform generator
Frequency response analysis
Best in usability
Designed for touch operation to simplify use
Waveform and measurement histograms
Built-in function, arbitrary waveform generator
Applications
Mixed Signal oscilloscopes are designed to work with a mixture of analog, digital and RF signals. They are suited for applications such as high-speed communications and networking, PCs, printers, motors and drives, robotics, vision systems packages in aerospace/defense and automotive industries.
Note
Manufacturer’s Warranty
