Keysight Technologies MSOX3032G InfiniiVision 3000G X Series, 350MHz Bench Oscilloscope, 2 Analogue Channels, 16
- RS Stock No.:
- 237-2463
- Mfr. Part No.:
- MSOX3032G
- Brand:
- Keysight Technologies
Subtotal (1 unit)*
£10,598.03
(exc. VAT)
£12,717.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 01 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £10,598.03 |
*price indicative
- RS Stock No.:
- 237-2463
- Mfr. Part No.:
- MSOX3032G
- Brand:
- Keysight Technologies
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Keysight Technologies | |
Bandwidth | 350MHz | |
Number of Analogue Channels | 2 | |
Number of Digital Channels | 16 | |
Calibrated | RSCAL | |
Oscilloscope Type | Bench | |
Oscilloscope Form | Mixed Signal | |
Memory Depth | 2Mpts | |
Sample Rate Random | 5 Gsps half channels, 2.5 Gsps | |
Screen Size | 8.5in | |
Series | InfiniiVision 3000G X | |
Weight | 4.2kg | |
Digital/Analogue | Digital | |
Input Impedance | 1 MΩ | |
Input Capacitance | 8 pF | |
Vertical Resolution | 8 bit | |
Dimensions | 381 x 204 x 142mm | |
Rise Time | ≤1ns | |
Display Type | Capacitive Touch Gesture-Enabled Display | |
Select all | ||
---|---|---|
Brand Keysight Technologies | ||
Bandwidth 350MHz | ||
Number of Analogue Channels 2 | ||
Number of Digital Channels 16 | ||
Calibrated RSCAL | ||
Oscilloscope Type Bench | ||
Oscilloscope Form Mixed Signal | ||
Memory Depth 2Mpts | ||
Sample Rate Random 5 Gsps half channels, 2.5 Gsps | ||
Screen Size 8.5in | ||
Series InfiniiVision 3000G X | ||
Weight 4.2kg | ||
Digital/Analogue Digital | ||
Input Impedance 1 MΩ | ||
Input Capacitance 8 pF | ||
Vertical Resolution 8 bit | ||
Dimensions 381 x 204 x 142mm | ||
Rise Time ≤1ns | ||
Display Type Capacitive Touch Gesture-Enabled Display | ||
- COO (Country of Origin):
- MY

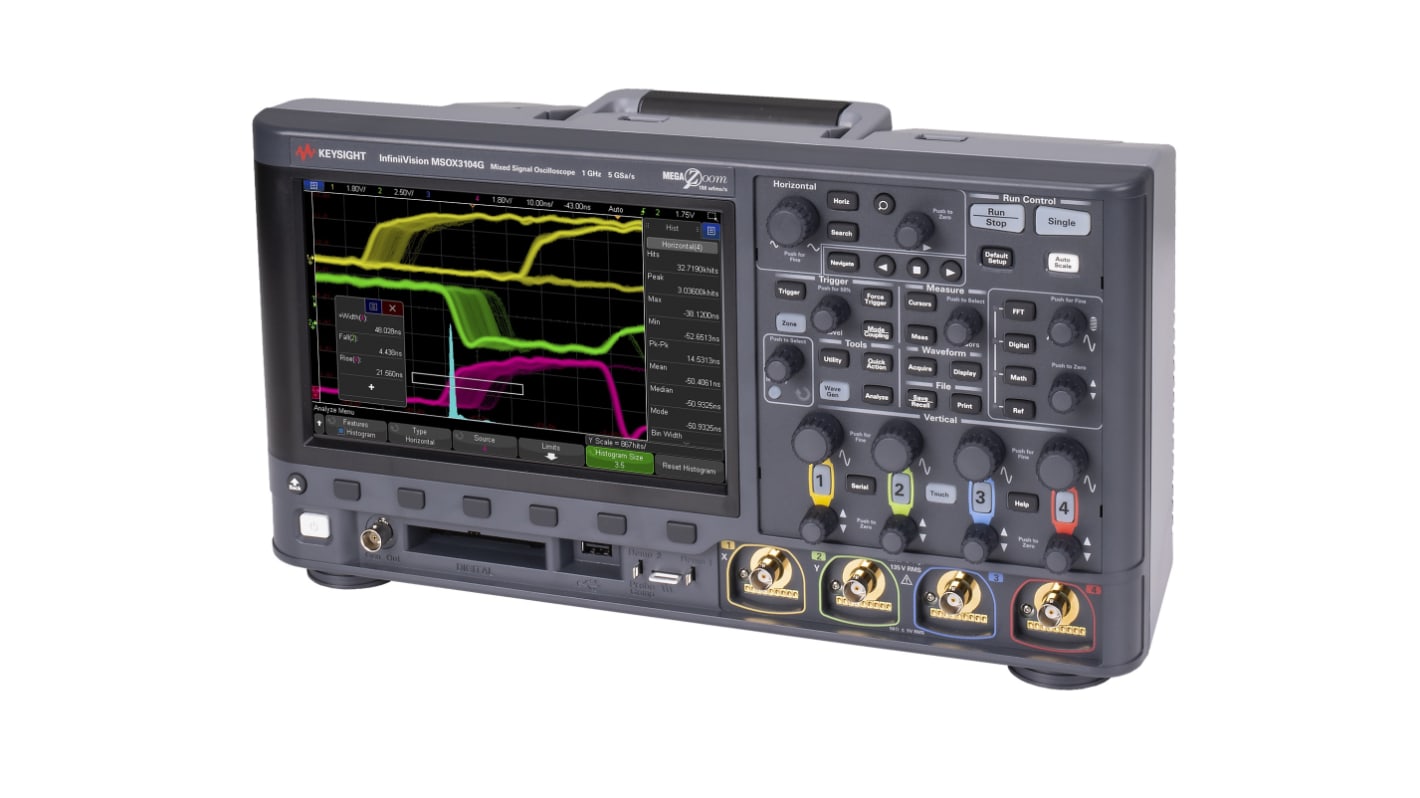

MSOX3032G Mixed Signal Oscilloscope
The MSOX3032G from Keysight Technologies is part of the high performance InfiniiVision 3000G X-series oscilloscopes and has a bandwidth of 350MHz.
If you are looking for a high-performance, feature-rich oscilloscope that combines digital and analog measurement capabilities, the MSOX3032G mixed signal oscilloscopes will be your instrument of choice. These versatile digital instruments can help you maintain high test speed and flexibilty in the most complex applications and provides engineers with a flexible solution for collecting performance and debug information from todays complex embedded systems. The instrument delivers the industrys best visualisation technology, as well as exceptional data capture properties and precise waveform measurements.
These oscilloscopes offer high-end technology in a small form factor. Its intuitive touch user-interface, industry-leading waveform update rate, zone trigger and standard features enables you to capture and isolate elusive glitches which cannot be performed on other scopes.
If you are looking for a high-performance, feature-rich oscilloscope that combines digital and analog measurement capabilities, the MSOX3032G mixed signal oscilloscopes will be your instrument of choice. These versatile digital instruments can help you maintain high test speed and flexibilty in the most complex applications and provides engineers with a flexible solution for collecting performance and debug information from todays complex embedded systems. The instrument delivers the industrys best visualisation technology, as well as exceptional data capture properties and precise waveform measurements.
These oscilloscopes offer high-end technology in a small form factor. Its intuitive touch user-interface, industry-leading waveform update rate, zone trigger and standard features enables you to capture and isolate elusive glitches which cannot be performed on other scopes.
The Keysight Technologies has InfiniiVision 3000G X-series oscilloscopes with bandwidth of 350 MHz offer high-end technology in a small form factor. Its intuitive touch user-interface, industry-leading waveform update rate, and zone trigger can capture and isolate elusive glitches. This oscilloscope has 2 analog channels and 16 digital channels.
Features and Benefits:
High performance mask and measurement limit testing enabled in hardware
Frequency response analysis
Best in usability
Designed for touch operation to simplify use
Waveform and measurement histograms
Built-in function, arbitrary waveform generator
Frequency response analysis
Best in usability
Designed for touch operation to simplify use
Waveform and measurement histograms
Built-in function, arbitrary waveform generator
Applications
Mixed Signal oscilloscopes are designed to work with a mixture of analog, digital and RF signals. They are suited for applications such as high-speed communications and networking, PCs, printers, motors and drives, robotics, vision systems packages in aerospace/defense and automotive industries.
For a limited time, get a FREE bandwidth upgrade on selected InfiniiVision Oscilloscopes worth up to £9,500. Promotion starts July 1st 2025, and ends December 31st 2025.
Get a single-step bandwidth licence upgrade (e.g. 100 MHz to 200 MHz). Only selected models listed qualify for this upgrade promotion.
How to Claim
• Place an order at RS for selected InfiniiVision Oscilloscopes
• After receiving your purchase, complete the claim form at www.keysight.com, quote promo code, 9.058 or email infiniivisionpromo@keysight.com
• Keysight will provide the bandwidth upgrade licence certificate to your email address
• Redeem the certificate on the Keysight Licence Manager portal to get your upgrade
Get a single-step bandwidth licence upgrade (e.g. 100 MHz to 200 MHz). Only selected models listed qualify for this upgrade promotion.
How to Claim
• Place an order at RS for selected InfiniiVision Oscilloscopes
• After receiving your purchase, complete the claim form at www.keysight.com, quote promo code, 9.058 or email infiniivisionpromo@keysight.com
• Keysight will provide the bandwidth upgrade licence certificate to your email address
• Redeem the certificate on the Keysight Licence Manager portal to get your upgrade
