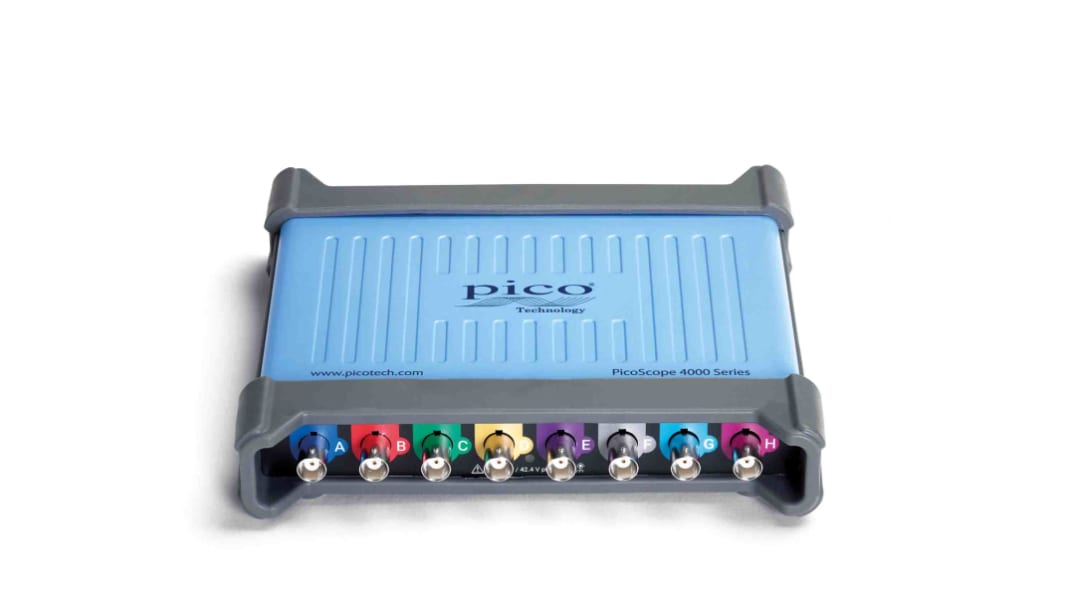

The 4824A digital oscilloscope from Pico Technology is a versatile instrument that is used in various fields, including electronics, engineering, and research, to measure and analyse electrical signals.

The 4824A is a PC-based oscilloscope which means it doesn't have a standalone display like traditional oscilloscopes. Instead, it connects to a computer via USB and displays waveforms and measurements on the computer screen using the provided software. This allows for a larger display area and more advanced analysis capabilities.

The PicoScope 4000A Series boasts 12-bit hardware resolution (to 16 bits with Resolution Enhancement), 256 MS deep capture memory, 20 MHz bandwidth with 80 MS/s sampling speed, up to 70 dB SFDR and a built-in 14-bit trigger able signal generator and 80 MS/s AWG. A SuperSpeed USB 3.0 interface powers the instrument and delivers up to 160 MS/s communications to the host PC.

All models run with the popular PicoScope 6 user interface and benefit from the free PicoSDK software development kit, which gives users direct programming control of the hardware for custom applications. The scopes also work with PicoLog 6 data logging software for lower-speed long-duration captures.

8 channels
20 MHz bandwidth
12-bit resolution
256 MS capture memory
80 MS/s sampling rate
1% DC accuracy
10 000 segment waveform buffer
14-bit resolution signal generator
SuperSpeed USB 3.0 interface
Split-screen waveform viewing
Up to 70 dB SFDR
Advanced digital triggering
Serial bus decoding
PicoScope and PicoSDK software included

USB 3.0 cable
USB Oscilloscope Quick Start Guide
Two 10:1/1:1 switched probes

PiscoScope 4224A – 2182726, 2 channels
PiscoScope 4424A - 2182727, 4 channels
