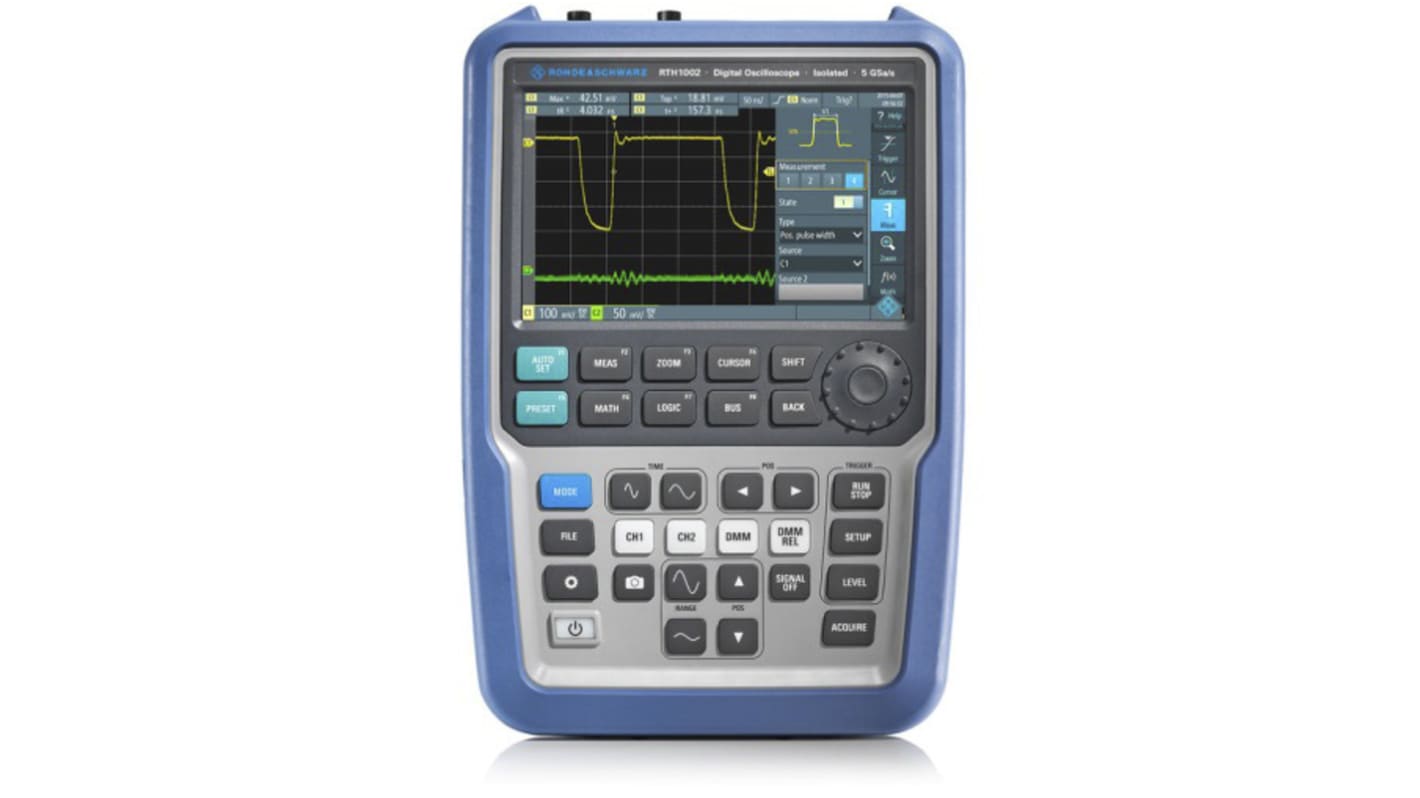

Rohde & Schwarz Scope Rider Series, 200 MHz Handheld Oscilloscope, 8 Channels - RSCAL

RS Stock No.:: 179-6281
Mfr. Part No.:: RTH1024MSO
Brand:: Rohde & Schwarz

Rohde & Schwarz Scope Rider Series, 200 MHz Handheld Oscilloscope, 8 Channels - RSCAL

Subtotal (1 unit)*

£7,155.37

(exc. VAT)

£8,586.44

(inc. VAT)

FREE delivery for orders over £50.00

Temporarily out of stock

Shipping from 23 April 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£7,155.37

*price indicative

Don't forget your Probe

Whatever Oscilloscope you're in the market for, we have the probe to match.

Shop our full range of Probes here

RS Stock No.:: 179-6281
Mfr. Part No.:: RTH1024MSO
Brand:: Rohde & Schwarz

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Rohde & Schwarz
	Product Type	Oscilloscope
	Bandwidth	200MHz
	Number of Channels	8
	Oscilloscope Type	Handheld
	Memory Depth	125kpts
	Interface Type	CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
	Screen Size	7 in
	Series	Scope Rider
	Standards/Approvals	No
	Width	201 mm
	Height	293mm
	Depth	74mm
	Minimum Time Base	1ns/div
	Maximum Vertical Sensitivity	100V/div
	Battery Life	4h
	Safety Category Level	CAT II, CAT III, CAT IV
	Maximum Time Base	500s/div
	Calibrated	RSCAL
	Safety Category Voltage	1000V
	Power Source	Battery, Mains
	Minimum Vertical Sensitivity	2mV/div
	Rise Time	1.75ns
	Display Type	TFT LCD
	Waveform Refresh Rate	50000per sec
	Vertical Resolution	9 bit
	Battery Type	Lithium-ion
	Plug Type	USB

	Select all
	Brand Rohde & Schwarz
	Product Type Oscilloscope
	Bandwidth 200MHz
	Number of Channels 8
	Oscilloscope Type Handheld
	Memory Depth 125kpts
	Interface Type CAN, IIC, LIN, RS232, RS422, RS485, SPI, UART, USB
	Screen Size 7 in
	Series Scope Rider
	Standards/Approvals No
	Width 201 mm
	Height 293mm
	Depth 74mm
	Minimum Time Base 1ns/div
	Maximum Vertical Sensitivity 100V/div
	Battery Life 4h
	Safety Category Level CAT II, CAT III, CAT IV
	Maximum Time Base 500s/div
	Calibrated RSCAL
	Safety Category Voltage 1000V
	Power Source Battery, Mains
	Minimum Vertical Sensitivity 2mV/div
	Rise Time 1.75ns
	Display Type TFT LCD
	Waveform Refresh Rate 50000per sec
	Vertical Resolution 9 bit
	Battery Type Lithium-ion
	Plug Type USB

Datasheet - Scope Rider RTH

COO (Country of Origin):: CZ

Rohde & Schwarz RTH100 Series RTH1004 Oscilloscope

The Rohde & Schwarz RTH100 series handheld digital oscilloscope is a portable universal tool for laboratory and field use. It is a mixed signal oscilloscope. The oscilloscope allows a bandwidth of 200MHz, memory depth up to 50MS and sampling rate up to 5GS/s. The input signal voltage required to operate this oscilloscope is 300V. It has LCD TFT, touch display of 7in with a resolution of 800x480 pixels. The analogue to digital converter resolution is 10 bit. It has four channels. This oscilloscope has isolated channels for power signal measurements up to CAT IV 600V. It performs multiple functions like lab performance oscilloscope, logical and protocol analyser, waveform and pattern generator in one instrument.

Features and Benefits

• Wireless LAN for web-based remote control

• Bandwidth is upgradeable via software keycode

• Includes 8 channel logic probe and micro-test connectors

• Optional software packages available

• Works on Lithium-ion rechargeable battery

• Automatic measurement of multiple parameters

Applications

• Educational institutes

• Used by service technicians

• R&D troubleshooting

• Production testing

• Power electronics

Note

History and segmented memory software is now included in standard RTH configuration for free, offering a saving of up to 18%. This option enables automatic storage of up to 5000 waveforms in a separate history buffer of the oscilloscope. The waveform data can be accessed any time to analyze past acquisitions using all oscilloscope capabilities.
