RS PRO, 100MHz Bench Mixed Domain Oscilloscope, 2 Digital Channels - UKAS Calibrated

RS Stock No.:: 561-197
Brand:: RS PRO

RS PRO, 100MHz Bench Mixed Domain Oscilloscope, 2 Digital Channels - UKAS Calibrated

Subtotal (1 unit)*

£1,127.88

(exc. VAT)

£1,353.46

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

7 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,127.88

*price indicative

Don't forget your Probe

Whatever Oscilloscope you're in the market for, we have the probe to match.

Shop our full range of Probes here

RS Stock No.:: 561-197
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Bandwidth	100MHz
	Number of Digital Channels	2
	Oscilloscope Type	Bench
	Calibrated	UKAS
	Oscilloscope Form	Mixed Domain
	Sample Rate Random	2 GSa/s
	Screen Size	8in
	Record Length	20Mpts
	Vertical Resolution	8 bit
	Dimensions	384 x 208 x 127.3mm
	Rise Time	3.5ns
	Display Type	LCD
	Safety Category	CAT I
	Digital/Analogue	Digital
	Power Source	Mains
	Weight	3kg

	Select all
	Brand RS PRO
	Bandwidth 100MHz
	Number of Digital Channels 2
	Oscilloscope Type Bench
	Calibrated UKAS
	Oscilloscope Form Mixed Domain
	Sample Rate Random 2 GSa/s
	Screen Size 8in
	Record Length 20Mpts
	Vertical Resolution 8 bit
	Dimensions 384 x 208 x 127.3mm
	Rise Time 3.5ns
	Display Type LCD
	Safety Category CAT I
	Digital/Analogue Digital
	Power Source Mains
	Weight 3kg

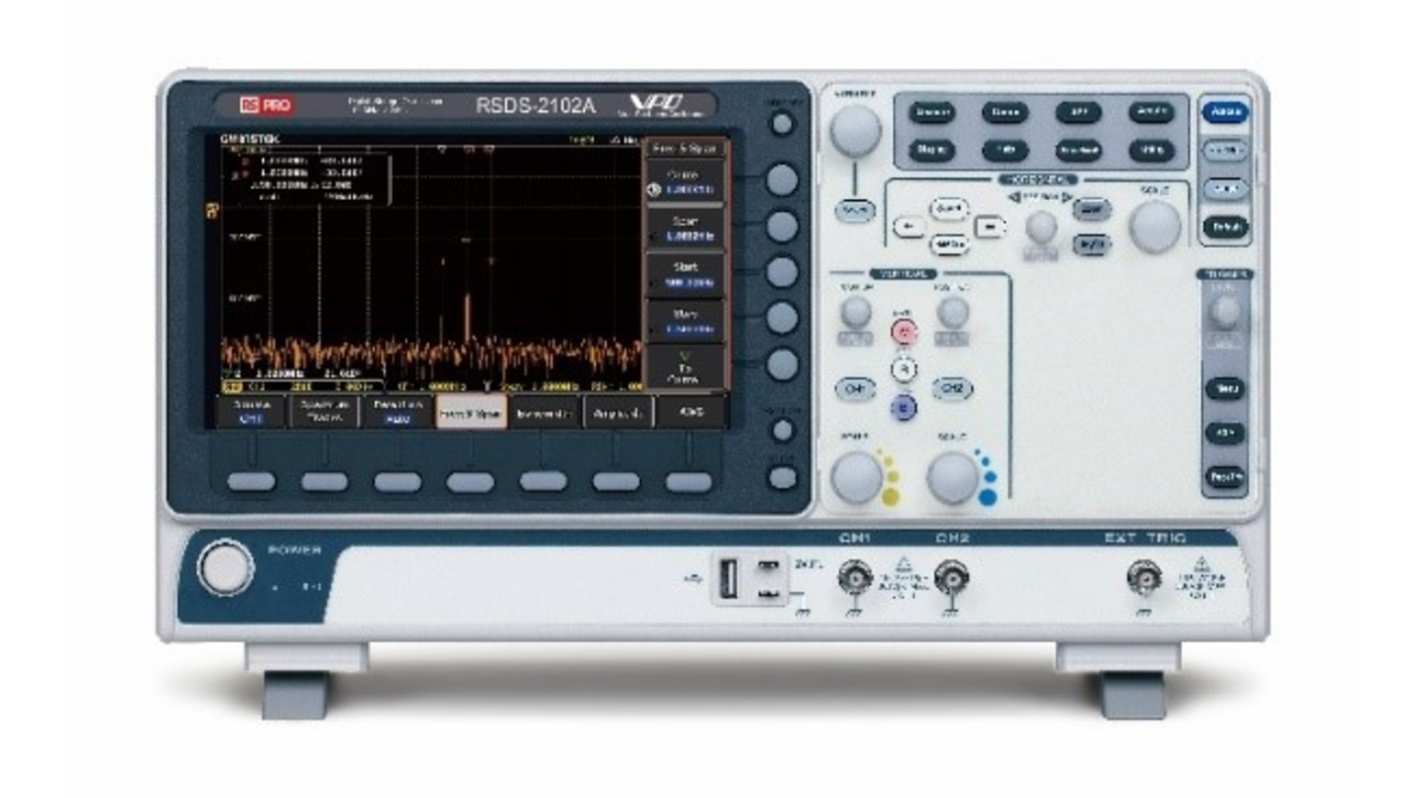

RS PRO Mixed-Domain Oscilloscope -100MHz

Unleash the full potential of your signal analysis with the RS PRO Mixed-Domain Oscilloscope, a versatile and powerful tool designed for precision in waveform analysis. Featuring a 100MHz bandwidth across 2 channels and a real-time sample rate of up to 2GSa/s, this oscilloscope ensures you capture every detail with unmatched accuracy, making it ideal for a wide range of applications.

The RS PRO Mixed-Domain Oscilloscope is equipped with 20M memory depth per channel and utilises VPO (Visual Persistence Oscilloscope) waveform display technology. This combination guarantees an accurate and detailed representation of waveforms, enabling you to analyse even the most complex signals with confidence.

With an impressive waveform update rate of up to 120,000 wfms/s, this oscilloscope ensures you never miss a critical moment in your signal analysis. The 8-inch WVGA TFT LCD further enhances your experience, providing clear and sharp visualisation of waveforms and data, allowing you to easily interpret and analyse results.

Why Would You Choose This Oscilloscope?

For those working with high-frequency signals, the RS PRO oscilloscope supports a maximum of 1M FFT for high-resolution frequency domain measurements. Combined with built-in high, low, and band-pass filter functions, this oscilloscope offers comprehensive tools for detailed frequency analysis, helping you pinpoint issues and optimise performance.

The oscilloscope also features 29,000 segmented memories and advanced waveform search functions, making it easy to manage and analyse large datasets. Additionally, with I2C, UART, CAN, and LIN serial bus trigger and decoding capabilities, the RS PRO Mixed-Domain Oscilloscope can handle complex protocol analysis, making it an invaluable asset for engineers and technicians.

Features and Benefits

100MHz bandwidth

2 channels

Real time sample rate is 2GSa/s max

Per Channel 20M memory depth and VPO waveform display technology

Waveform update rate up to 120,000 wfms/s

8 in. WVGA TFT LCD

Maximum 1M FFT provides higher frequency domain resolution measurements

High, low and band pass filter functions

29,000 segmented memories and waveform search functions

I2C/UART/CAN/LIN serial bus trigger and decoding function

Data log function can track signal changes up to 1,000 hours

Network storage function

Mask test function

Applications

Signal analysis

Troubleshooting

Developing new systems
