- RS Stock No.:
- 228-8065
- Mfr. Part No.:
- T3RC0060-LF
- Brand:
- Teledyne LeCroy
1 In stock for delivery within 1 working days
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£2,755.00
(exc. VAT)
£3,306.00
(inc. VAT)
Units | Per unit |
1 + | £2,755.00 |
- RS Stock No.:
- 228-8065
- Mfr. Part No.:
- T3RC0060-LF
- Brand:
- Teledyne LeCroy
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details

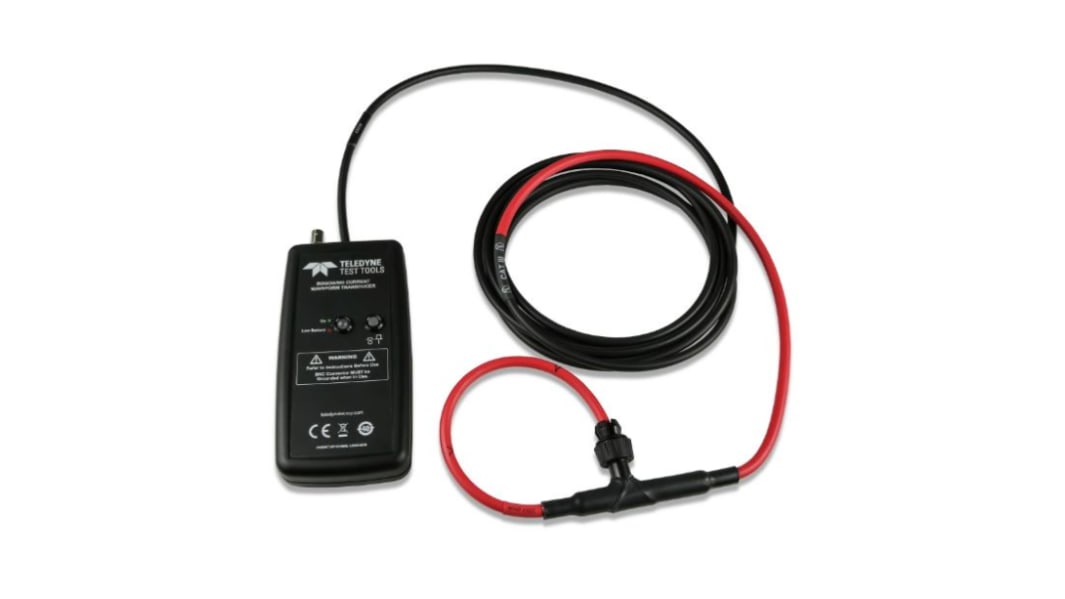

Teledyne LeCroy, AC rogowski coil current probe, 100 mV/A, 60A, 11 Hz LF bandwidth, 5MHz HF bandwidth, 1m cable.
Teledyne Test Tools Rogowski Current probes offer a broad range of products covering a wide frequency span and current measurement ranges for maximum application coverage whilst being easy to use in difficult to reach parts of the circuit.
The flexibility of the probe sense coil means that measurements can often be made without modification to the circuit under test, giving more accurate results, whilst remaining isolated, with very low insertion load of only a few pH. The inclusion of both battery power and wall plug operation means that the Teledyne Test Tools Rogowski Current Probes are as happy working out in the field as they are working on the bench.
The flexibility of the probe sense coil means that measurements can often be made without modification to the circuit under test, giving more accurate results, whilst remaining isolated, with very low insertion load of only a few pH. The inclusion of both battery power and wall plug operation means that the Teledyne Test Tools Rogowski Current Probes are as happy working out in the field as they are working on the bench.
Features & Benefits
The teledyne test tools rogowski probes are compatible with all of the teledyne test tools oscilloscopes as well as the teledyne lecroy oscilloscopes
The teledyne test tools rogowski probes have a simple connection requirement of a BNC input with 1 MOhm impedance. These probes will therefore work with the majority of oscilloscopes in the market
The probes can be made even more useful by using your oscilloscopes attenuation function to re-scale the channel vertical range
Frequency coverage from <11 Hz to 5 MHz
100 mm coil circumference
1 Meter cable length (coil to electronics)
Peak coil insulation voltage - 2 kV
Attenuation ratio - 20
Maximum Conductor Size: 100mm
The teledyne test tools rogowski probes have a simple connection requirement of a BNC input with 1 MOhm impedance. These probes will therefore work with the majority of oscilloscopes in the market
The probes can be made even more useful by using your oscilloscopes attenuation function to re-scale the channel vertical range
Frequency coverage from <11 Hz to 5 MHz
100 mm coil circumference
1 Meter cable length (coil to electronics)
Peak coil insulation voltage - 2 kV
Attenuation ratio - 20
Maximum Conductor Size: 100mm
Applications
Component level design and development such as semiconductor switching waveforms in MOSFET or IGBT, also capacitor and inductor devices
System level development such as motor drives in hybrid and fully electric transportation systems (automotive, rail, sea, etc)
Power converter design and development for wind farms and other renewable energy
Research and Development
Long term system monitoring and maintenance
System level development such as motor drives in hybrid and fully electric transportation systems (automotive, rail, sea, etc)
Power converter design and development for wind farms and other renewable energy
Research and Development
Long term system monitoring and maintenance
Specifications
Attribute | Value |
---|---|
Probe Type | AC Current |
Bandwidth | 5MHz |
Connector Type | BNC |
Model Number p | T3RC0060-LF |
Series | T3RC |
