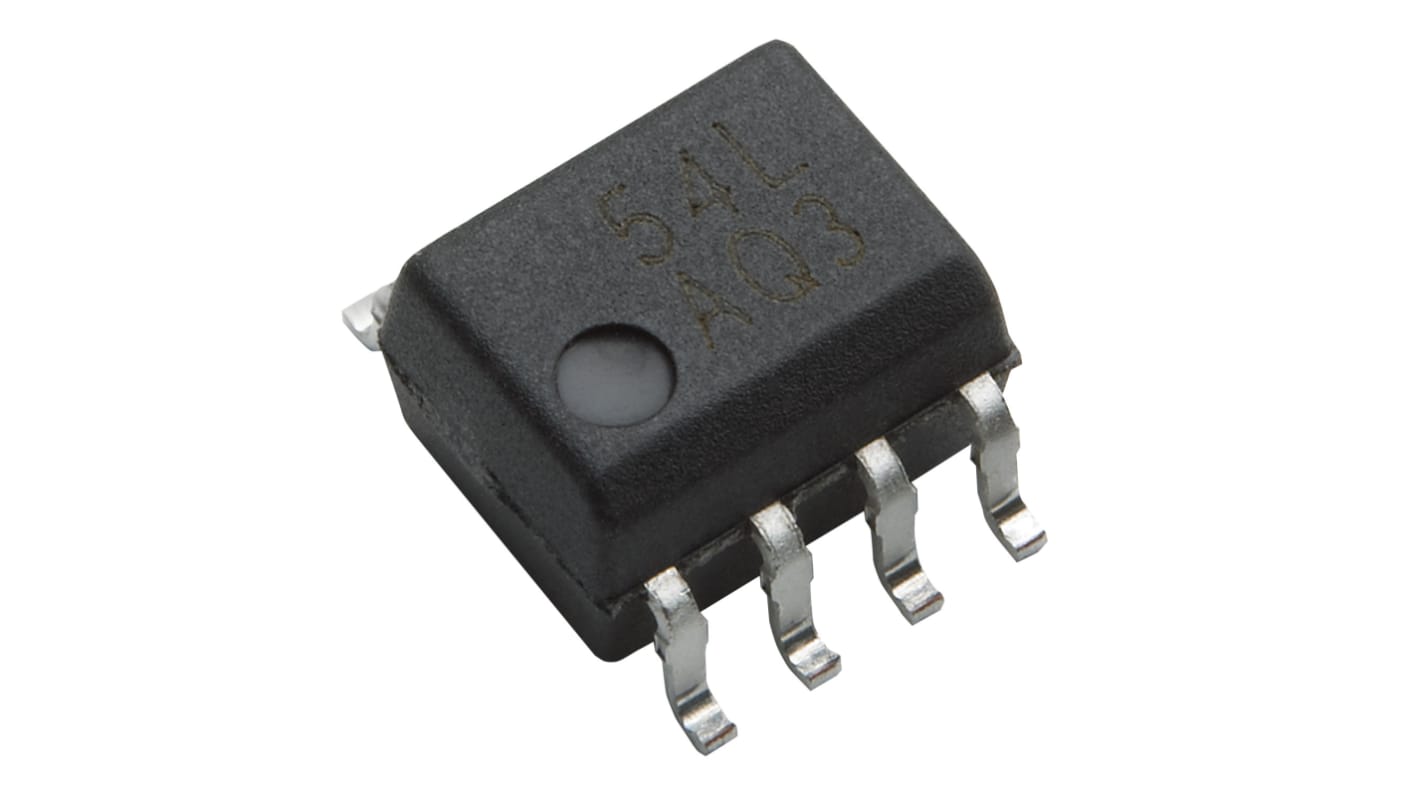

Broadcom ACPL-054L-060E DC Input 2-Channel Optocoupler, Surface, 8-Pin SO-8
- RS Stock No.:
- 239-9293
- Mfr. Part No.:
- ACPL-054L-060E
- Brand:
- Broadcom
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 2 units)*
£7.44
(exc. VAT)
£8.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,726 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 2 - 8 | £3.72 | £7.44 |
| 10 - 48 | £3.075 | £6.15 |
| 50 - 98 | £2.66 | £5.32 |
| 100 + | £2.505 | £5.01 |
*price indicative
- RS Stock No.:
- 239-9293
- Mfr. Part No.:
- ACPL-054L-060E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Product Type | Optocoupler | |
| Mount Type | Surface | |
| Maximum Forward Voltage | 1.5V | |
| Number of Channels | 2 | |
| Number of Pins | 8 | |
| Package Type | SO-8 | |
| Input Current Type | DC | |
| Maximum Input Current | 230mA | |
| Minimum Operating Temperature | -40°C | |
| Maximum Current Transfer Ratio | 200% | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | IEC/EN/DIN EN 60747-5-5, CSA approval, RoHS | |
| Minimum Current Transfer Ratio | 0.93% | |
| Series | ACPL-054L | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Broadcom | ||
Product Type Optocoupler | ||
Mount Type Surface | ||
Maximum Forward Voltage 1.5V | ||
Number of Channels 2 | ||
Number of Pins 8 | ||
Package Type SO-8 | ||
Input Current Type DC | ||
Maximum Input Current 230mA | ||
Minimum Operating Temperature -40°C | ||
Maximum Current Transfer Ratio 200% | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals IEC/EN/DIN EN 60747-5-5, CSA approval, RoHS | ||
Minimum Current Transfer Ratio 0.93% | ||
Series ACPL-054L | ||
Automotive Standard No | ||
The Broadcom ACPL-054L (dual-channel in SO-8 footprint), low-input current, 1-MBd digital opt couplers. These digital opt couplers use an insulating layer between the light-emitting diode and an integrated photon detector to provide electrical insulation between input and output. Separate connections for the photodiode bias and output transistor collector increase the speed up to a hundred times over that of a conventional photo-transistor coupler by reducing the base-collector capacitance.
Wide supply voltage VCC 27V to 24V
Low drive current 3 mA
Open-collector output
TTL compatible
Compact SO-5, SO-8, stretched SO-6, and stretched SO-8 package
15 kV/μs high common-mode rejection at VCM = 1500V
Guaranteed performance from temperature range – 40°C to +105°C
Low propagation delay 1 μs max at 5V
