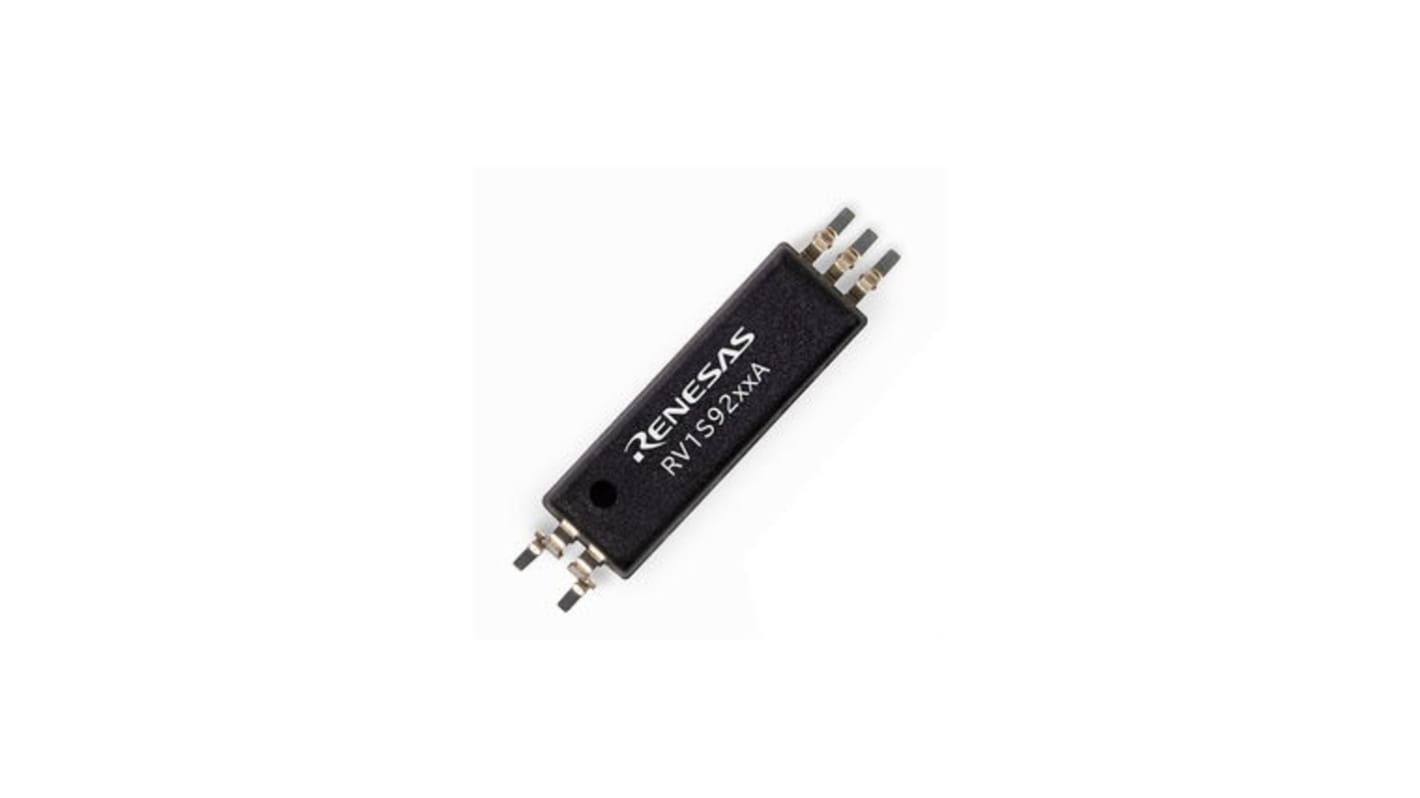

Renesas Electronics RV1S9231ACCSP-10YV#SC0 DC Input Photocoupler, Surface, 5-Pin SSOP
- RS Stock No.:
- 236-4617
- Mfr. Part No.:
- RV1S9231ACCSP-10YV#SC0
- Brand:
- Renesas Electronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 236-4617
- Mfr. Part No.:
- RV1S9231ACCSP-10YV#SC0
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Mount Type | Surface | |
| Product Type | Photocoupler | |
| Maximum Forward Voltage | 1.75V | |
| Packaging | Reel | |
| Number of Channels | 1 | |
| Number of Pins | 5 | |
| Package Type | SSOP | |
| Input Current Type | DC | |
| Typical Rise Time | 40ns | |
| Maximum Input Current | 5.2mA | |
| Isolation Voltage | 1075V | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | UL, DIN, CSA | |
| Typical Fall Time | 40ns | |
| Series | RV | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Mount Type Surface | ||
Product Type Photocoupler | ||
Maximum Forward Voltage 1.75V | ||
Packaging Reel | ||
Number of Channels 1 | ||
Number of Pins 5 | ||
Package Type SSOP | ||
Input Current Type DC | ||
Typical Rise Time 40ns | ||
Maximum Input Current 5.2mA | ||
Isolation Voltage 1075V | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals UL, DIN, CSA | ||
Typical Fall Time 40ns | ||
Series RV | ||
Automotive Standard No | ||
The Renesas Electronics optical coupled isolator contains AlGaAs LED on the input side and a photodiode, a signal processing circuit, and power output MOSFETs on the output side on one chip. It is designed specifically for high common-mode transient immunity and high switching speed. It is suitable for driving IGBTs.
It has small and long creepage
Large Peak output current
High speed switching
High isolation voltage
