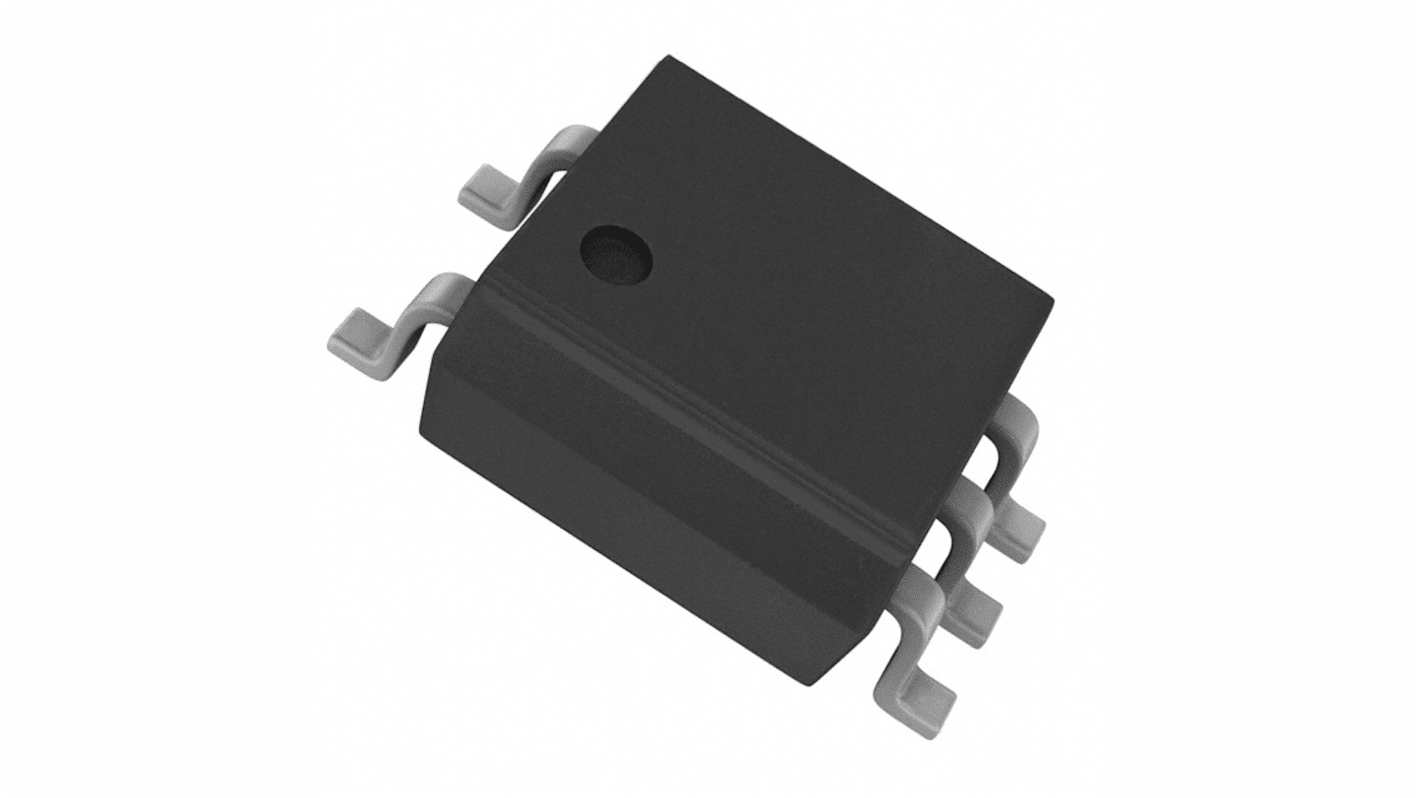

Renesas Electronics PS9151-V-F3-AX DC Input Photocoupler, Surface, 5-Pin SO
- RS Stock No.:
- 234-7110
- Mfr. Part No.:
- PS9151-V-F3-AX
- Brand:
- Renesas Electronics
Subtotal (1 pack of 5 units)*
£3.19
(exc. VAT)
£3.83
(inc. VAT)
FREE delivery for orders over £60.00
Last RS stock
- Final 6,395 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £0.638 | £3.19 |
*price indicative
- RS Stock No.:
- 234-7110
- Mfr. Part No.:
- PS9151-V-F3-AX
- Brand:
- Renesas Electronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Renesas Electronics | |
| Mount Type | Surface | |
| Product Type | Photocoupler | |
| Maximum Forward Voltage | 1.8V | |
| Number of Channels | 1 | |
| Packaging | 2500 pcs/Reel | |
| Number of Pins | 5 | |
| Package Type | SO | |
| Input Current Type | DC | |
| Typical Rise Time | 4ns | |
| Maximum Input Current | 20mA | |
| Isolation Voltage | 3750Vrms | |
| Minimum Operating Temperature | -40°C | |
| Logic Output | Yes | |
| Maximum Operating Temperature | 100°C | |
| Typical Fall Time | 4ns | |
| Standards/Approvals | UL Approved:UL1577, VDE Approved:DIN EN 60747-5-5 | |
| Series | PS | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Renesas Electronics | ||
Mount Type Surface | ||
Product Type Photocoupler | ||
Maximum Forward Voltage 1.8V | ||
Number of Channels 1 | ||
Packaging 2500 pcs/Reel | ||
Number of Pins 5 | ||
Package Type SO | ||
Input Current Type DC | ||
Typical Rise Time 4ns | ||
Maximum Input Current 20mA | ||
Isolation Voltage 3750Vrms | ||
Minimum Operating Temperature -40°C | ||
Logic Output Yes | ||
Maximum Operating Temperature 100°C | ||
Typical Fall Time 4ns | ||
Standards/Approvals UL Approved:UL1577, VDE Approved:DIN EN 60747-5-5 | ||
Series PS | ||
Automotive Standard No | ||
The Renesas Electronics optically coupled isolator containing an AlGaAs LED on the input side and a CMOS output IC on the output side.
High-speed response
High common mode transient immunity
Pulse width distortion
Operable at high temperature from -40 to +100°C
