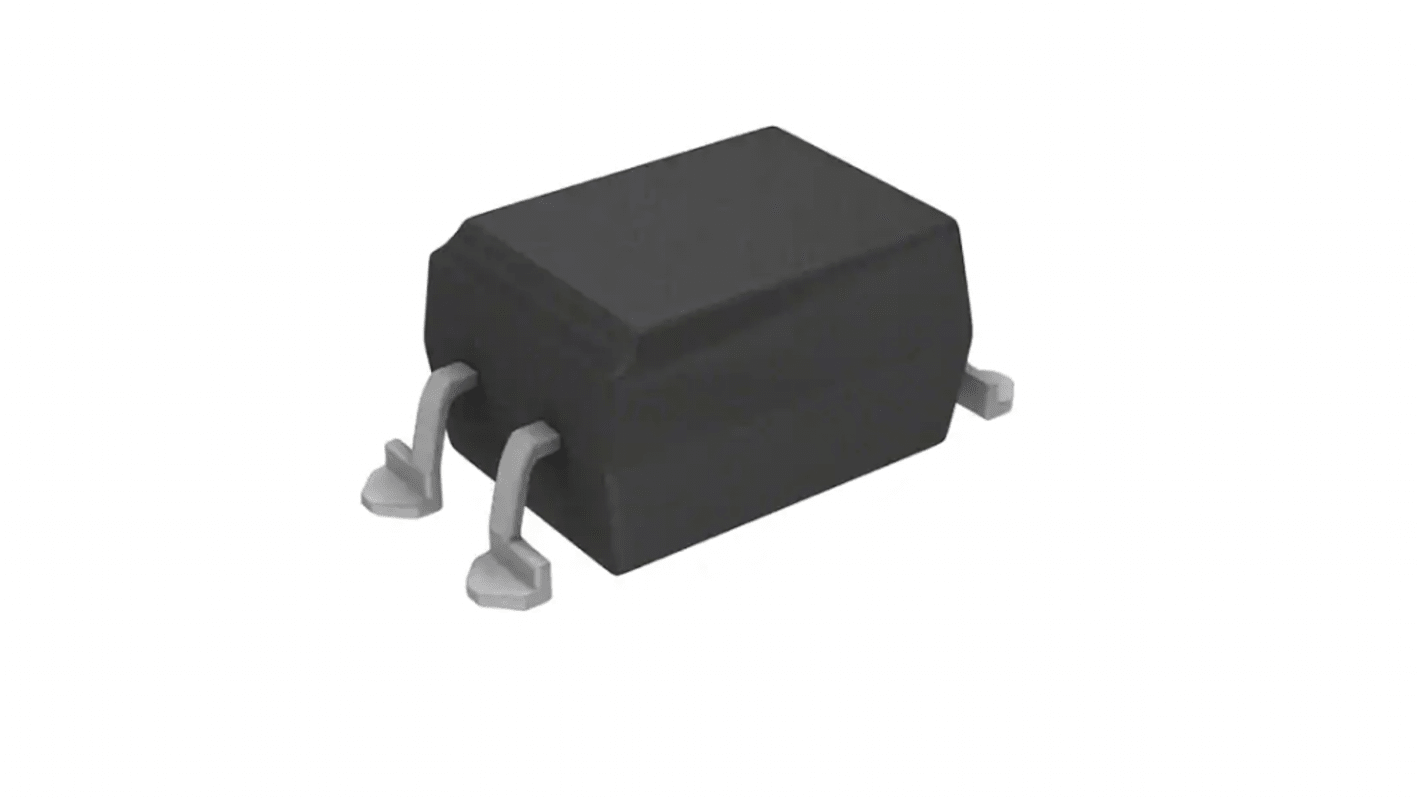

Vishay AC Input Optocoupler, Through Hole, Surface, 4-Pin Surface Mount
- RS Stock No.:
- 180-7920
- Mfr. Part No.:
- SFH6206-3
- Brand:
- Vishay
Subtotal (1 pack of 20 units)*
£3.04
(exc. VAT)
£3.64
(inc. VAT)
FREE delivery for orders over £50.00
Last RS stock
- Final 80 unit(s), ready to ship
Units | Per unit | Per Pack* |
|---|---|---|
| 20 + | £0.152 | £3.04 |
*price indicative
- RS Stock No.:
- 180-7920
- Mfr. Part No.:
- SFH6206-3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Optocoupler | |
| Mount Type | Through Hole, Surface | |
| Maximum Forward Voltage | 1.65V | |
| Packaging | Tape & Reel | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | Surface Mount | |
| Input Current Type | AC | |
| Typical Rise Time | 2μs | |
| Maximum Input Current | 60mA | |
| Isolation Voltage | 5300Vrms | |
| Logic Output | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum Current Transfer Ratio | 320% | |
| Maximum Operating Temperature | 100°C | |
| Standards/Approvals | BSI EN 60950, GB4943.1-2011, EN 60065, CSA 93751, UL1577, DIN EN 60747-5-5 (VDE 0884-5), CQC GB8898-2011 | |
| Minimum Current Transfer Ratio | 40% | |
| Typical Fall Time | 2μs | |
| Series | SFH | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Optocoupler | ||
Mount Type Through Hole, Surface | ||
Maximum Forward Voltage 1.65V | ||
Packaging Tape & Reel | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type Surface Mount | ||
Input Current Type AC | ||
Typical Rise Time 2μs | ||
Maximum Input Current 60mA | ||
Isolation Voltage 5300Vrms | ||
Logic Output Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum Current Transfer Ratio 320% | ||
Maximum Operating Temperature 100°C | ||
Standards/Approvals BSI EN 60950, GB4943.1-2011, EN 60065, CSA 93751, UL1577, DIN EN 60747-5-5 (VDE 0884-5), CQC GB8898-2011 | ||
Minimum Current Transfer Ratio 40% | ||
Typical Fall Time 2μs | ||
Series SFH | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The Vishay SFH6206 feature a high current transfer ratio, low coupling capacitance and high isolation voltage. These coupler have a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic SMD package. The coupling devices are designed for signal transmission between two electrically separated circuits.
Good CTR linearity depending on forward current
Low saturation voltage
Fast switching times
Low CTR degradation
