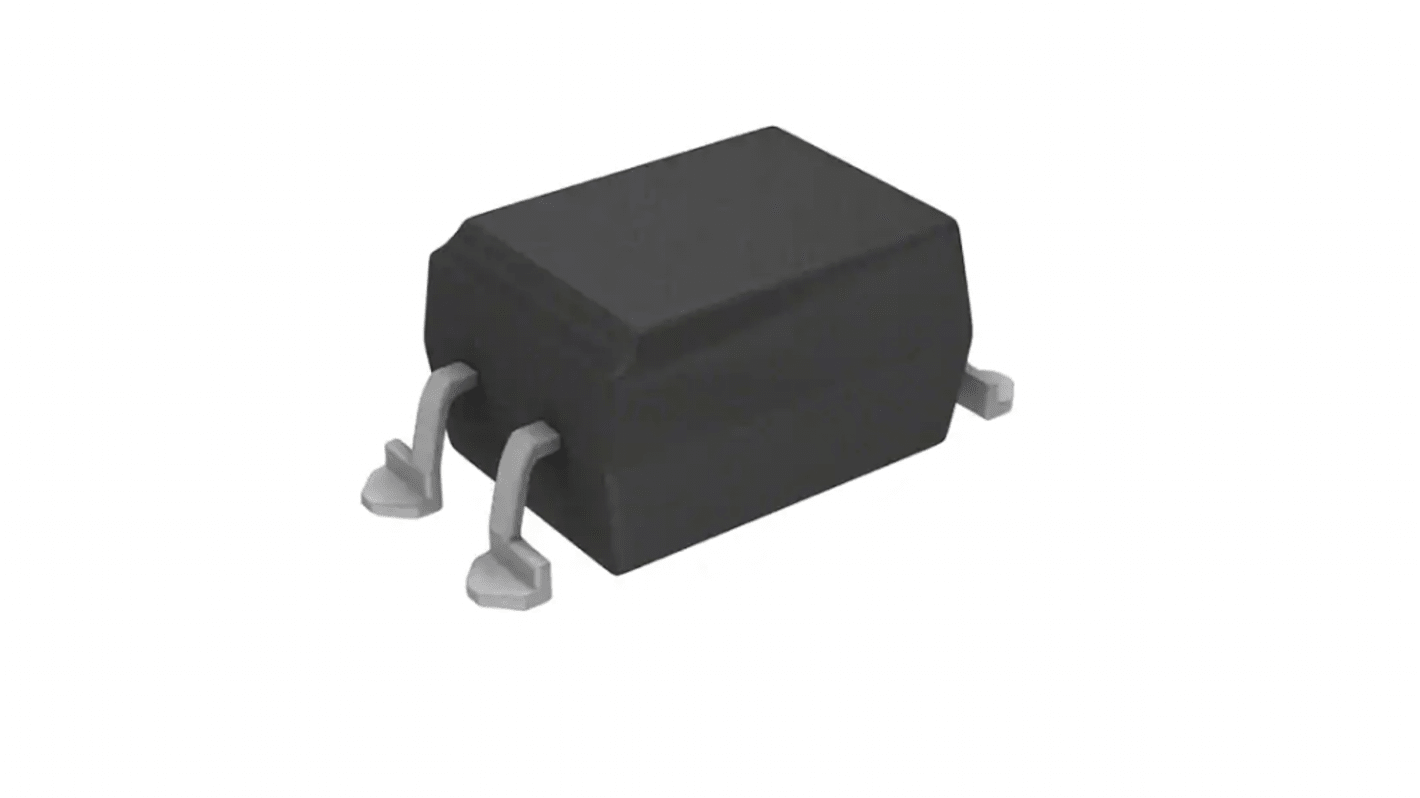

Vishay SFH6206-3 AC Input Optocoupler, Through Hole, Surface, 4-Pin Surface Mount
- RS Stock No.:
- 180-7249
- Mfr. Part No.:
- SFH6206-3
- Brand:
- Vishay
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 180-7249
- Mfr. Part No.:
- SFH6206-3
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Mount Type | Through Hole, Surface | |
| Product Type | Optocoupler | |
| Maximum Forward Voltage | 1.65V | |
| Number of Channels | 1 | |
| Packaging | Tape & Reel | |
| Number of Pins | 4 | |
| Package Type | Surface Mount | |
| Input Current Type | AC | |
| Typical Rise Time | 2μs | |
| Maximum Input Current | 60mA | |
| Isolation Voltage | 5300Vrms | |
| Logic Output | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum Current Transfer Ratio | 320% | |
| Maximum Operating Temperature | 100°C | |
| Minimum Current Transfer Ratio | 40% | |
| Typical Fall Time | 2μs | |
| Standards/Approvals | BSI EN 60950, GB4943.1-2011, EN 60065, CSA 93751, UL1577, DIN EN 60747-5-5 (VDE 0884-5), CQC GB8898-2011 | |
| Series | SFH | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Mount Type Through Hole, Surface | ||
Product Type Optocoupler | ||
Maximum Forward Voltage 1.65V | ||
Number of Channels 1 | ||
Packaging Tape & Reel | ||
Number of Pins 4 | ||
Package Type Surface Mount | ||
Input Current Type AC | ||
Typical Rise Time 2μs | ||
Maximum Input Current 60mA | ||
Isolation Voltage 5300Vrms | ||
Logic Output Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum Current Transfer Ratio 320% | ||
Maximum Operating Temperature 100°C | ||
Minimum Current Transfer Ratio 40% | ||
Typical Fall Time 2μs | ||
Standards/Approvals BSI EN 60950, GB4943.1-2011, EN 60065, CSA 93751, UL1577, DIN EN 60747-5-5 (VDE 0884-5), CQC GB8898-2011 | ||
Series SFH | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The Vishay SFH6206 feature a high current transfer ratio, low coupling capacitance and high isolation voltage. These coupler have a GaAs infrared diode emitter, which is optically coupled to a silicon planar phototransistor detector, and is incorporated in a plastic SMD package. The coupling devices are designed for signal transmission between two electrically separated circuits.
Good CTR linearity depending on forward current
Low saturation voltage
Fast switching times
Low CTR degradation
