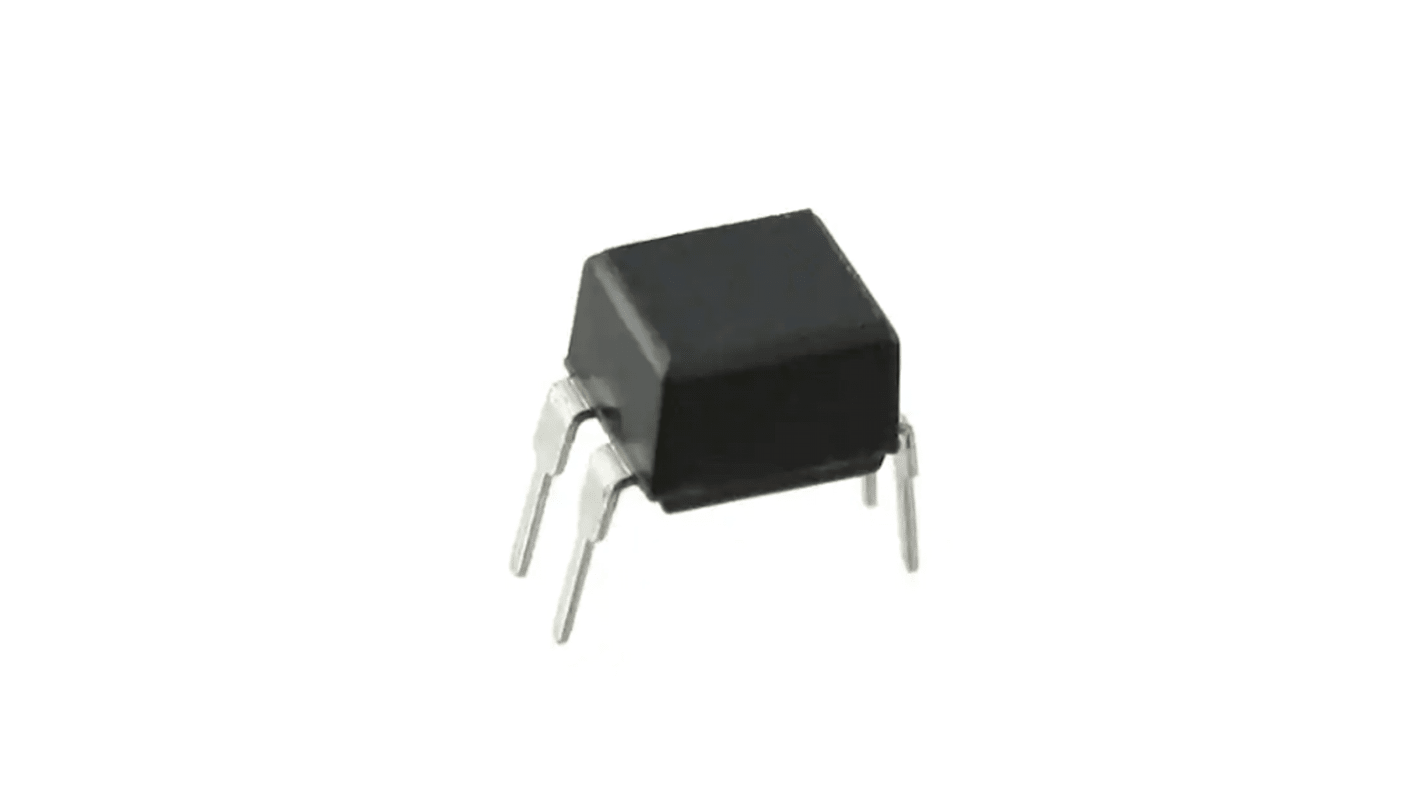

Vishay AC Input Optocoupler, Through Hole, 4-Pin DIP
- RS Stock No.:
- 180-7756
- Mfr. Part No.:
- SFH628A-4
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 10 units)*
£6.60
(exc. VAT)
£7.90
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 50 unit(s) shipping from 27 April 2026
- Plus 2,410 unit(s) shipping from 28 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 - 90 | £0.66 | £6.60 |
| 100 - 240 | £0.515 | £5.15 |
| 250 - 490 | £0.409 | £4.09 |
| 500 - 990 | £0.357 | £3.57 |
| 1000 + | £0.35 | £3.50 |
*price indicative
- RS Stock No.:
- 180-7756
- Mfr. Part No.:
- SFH628A-4
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Optocoupler | |
| Mount Type | Through Hole | |
| Maximum Forward Voltage | 1.5V | |
| Number of Channels | 1 | |
| Number of Pins | 4 | |
| Package Type | DIP | |
| Input Current Type | AC | |
| Typical Rise Time | 3.5μs | |
| Maximum Input Current | 50mA | |
| Isolation Voltage | 5300Vrms | |
| Logic Output | Yes | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 100°C | |
| Maximum Current Transfer Ratio | 500% | |
| Typical Fall Time | 5μs | |
| Standards/Approvals | UL1577, IEC 60065, DIN EN 60747-5-5 (VDE0884-5), BSI IEC 60950 | |
| Minimum Current Transfer Ratio | 32% | |
| Series | SFH628 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Optocoupler | ||
Mount Type Through Hole | ||
Maximum Forward Voltage 1.5V | ||
Number of Channels 1 | ||
Number of Pins 4 | ||
Package Type DIP | ||
Input Current Type AC | ||
Typical Rise Time 3.5μs | ||
Maximum Input Current 50mA | ||
Isolation Voltage 5300Vrms | ||
Logic Output Yes | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 100°C | ||
Maximum Current Transfer Ratio 500% | ||
Typical Fall Time 5μs | ||
Standards/Approvals UL1577, IEC 60065, DIN EN 60747-5-5 (VDE0884-5), BSI IEC 60950 | ||
Minimum Current Transfer Ratio 32% | ||
Series SFH628 | ||
Automotive Standard No | ||
- COO (Country of Origin):
- MY
The Vishay SFH628A feature a high current transfer ratio, low coupling capacitance and high isolation voltage. These coupler have a GaAs infrared emitting diode, which is optically coupled to a silicon Planar phototransistor detector, and is incorporated in a plastic DIP-4 package.
High common mode interference immunity
Low coupling capacitance
Low CTR degradation
