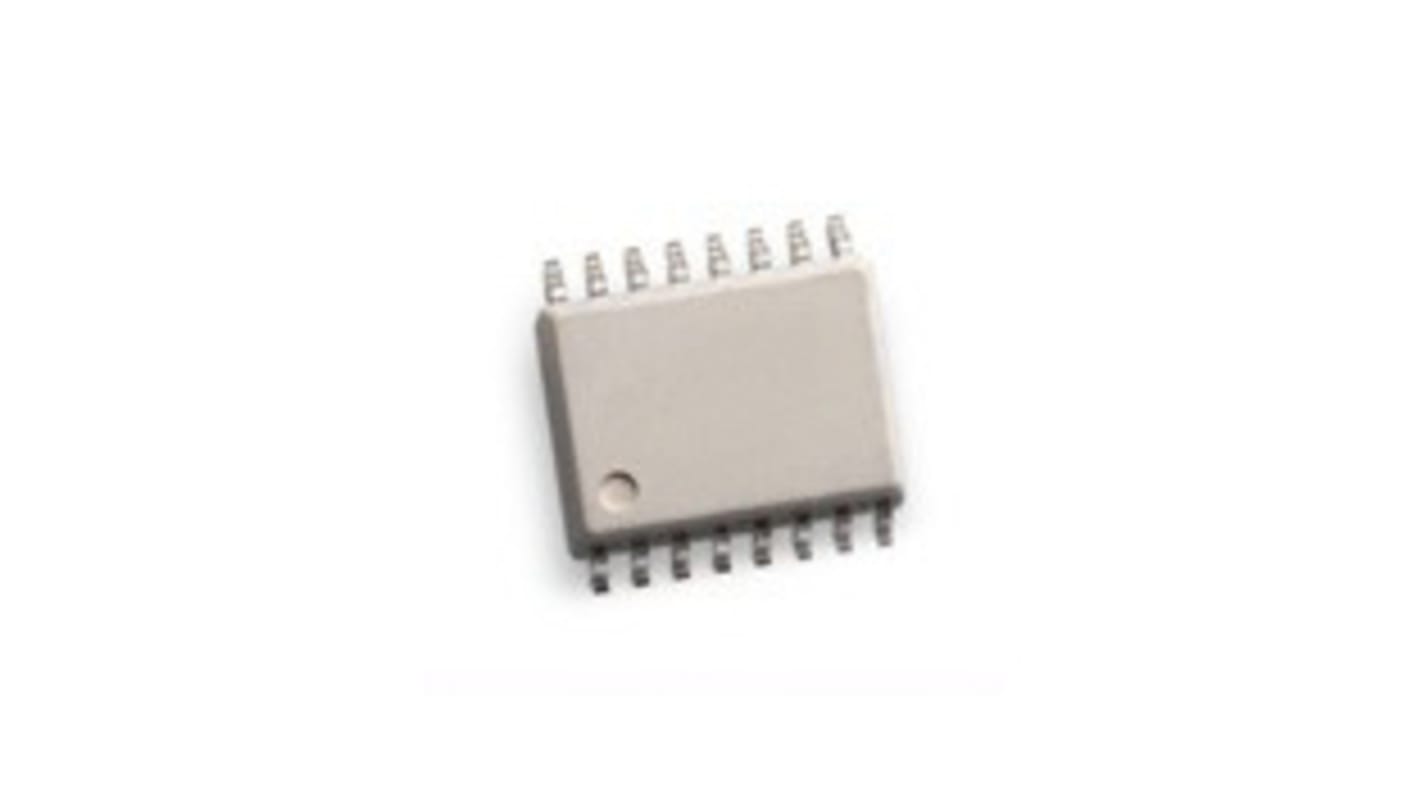

Broadcom, HCPL-316J-500E DC Input IGBT Gate Drive Output Optocoupler, Surface Mount, 16-Pin SO
- RS Stock No.:
- 174-3673
- Mfr. Part No.:
- HCPL-316J-500E
- Brand:
- Broadcom
Subtotal (1 reel of 850 units)*
£1,989.00
(exc. VAT)
£2,388.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1,700 unit(s) shipping from 12 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 850 + | £2.34 | £1,989.00 |
*price indicative
- RS Stock No.:
- 174-3673
- Mfr. Part No.:
- HCPL-316J-500E
- Brand:
- Broadcom
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Broadcom | |
| Mounting Type | Surface Mount | |
| Output Device | IGBT Gate Drive | |
| Number of Channels | 1 | |
| Number of Pins | 16 | |
| Package Type | SO | |
| Input Current Type | DC | |
| Typical Rise Time | 0.1µs | |
| Maximum Input Current | 400 mA | |
| Isolation Voltage | 5000 Vrms | |
| Logic Output | Yes | |
| Typical Fall Time | 0.1µs | |
| Series | HCPL | |
Select all | ||
|---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device IGBT Gate Drive | ||
Number of Channels 1 | ||
Number of Pins 16 | ||
Package Type SO | ||
Input Current Type DC | ||
Typical Rise Time 0.1µs | ||
Maximum Input Current 400 mA | ||
Isolation Voltage 5000 Vrms | ||
Logic Output Yes | ||
Typical Fall Time 0.1µs | ||
Series HCPL | ||
