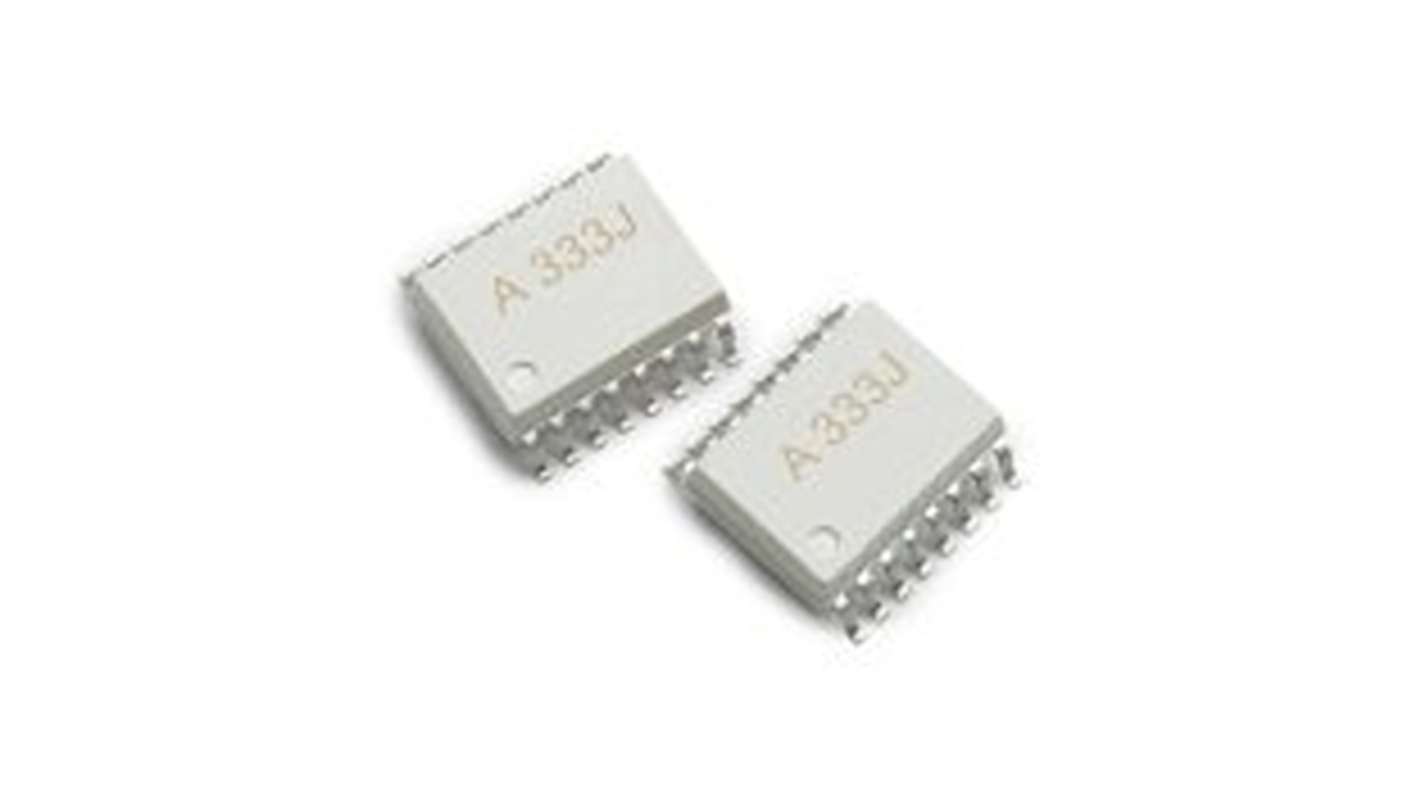

Broadcom, ACPL-333J-500E DC Input IGBT, MOSFET Output Dual Optocoupler, Surface Mount, 16-Pin SO16
- RS Stock No.:
- 242-553
- Mfr. Part No.:
- ACPL-333J-500E
- Brand:
- Broadcom
Bulk discount available
Subtotal (1 tape of 1 unit)*
£4.84
(exc. VAT)
£5.81
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1,634 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape |
---|---|
1 - 9 | £4.84 |
10 - 99 | £4.36 |
100 - 499 | £4.02 |
500 - 999 | £3.73 |
1000 + | £3.35 |
*price indicative
- RS Stock No.:
- 242-553
- Mfr. Part No.:
- ACPL-333J-500E
- Brand:
- Broadcom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Broadcom | |
Mounting Type | Surface Mount | |
Output Device | IGBT, MOSFET | |
Maximum Forward Voltage | 1.95V | |
Number of Channels | 2 | |
Number of Pins | 16 | |
Package Type | SO16 | |
Input Current Type | DC | |
Select all | ||
---|---|---|
Brand Broadcom | ||
Mounting Type Surface Mount | ||
Output Device IGBT, MOSFET | ||
Maximum Forward Voltage 1.95V | ||
Number of Channels 2 | ||
Number of Pins 16 | ||
Package Type SO16 | ||
Input Current Type DC | ||
The Broadcom Optocoupler is an advanced, easy-to-use intelligent gate driver with a 2.5 A output current. It simplifies IGBT VCE fault protection, making it compact, affordable, and easy to implement. Key features include integrated VCE detection, under-voltage lockout (UVLO), "soft" IGBT turn-off, isolated open collector fault feedback, active Miller clamping, and auto-fault reset. These features provide maximum design flexibility and ensure robust circuit protection.
2.0 A minimum peak output current
250 ns maximum propagation delay over temperature range
1.7A Active Miller Clamp
Desaturation detection
250 ns maximum propagation delay over temperature range
1.7A Active Miller Clamp
Desaturation detection
