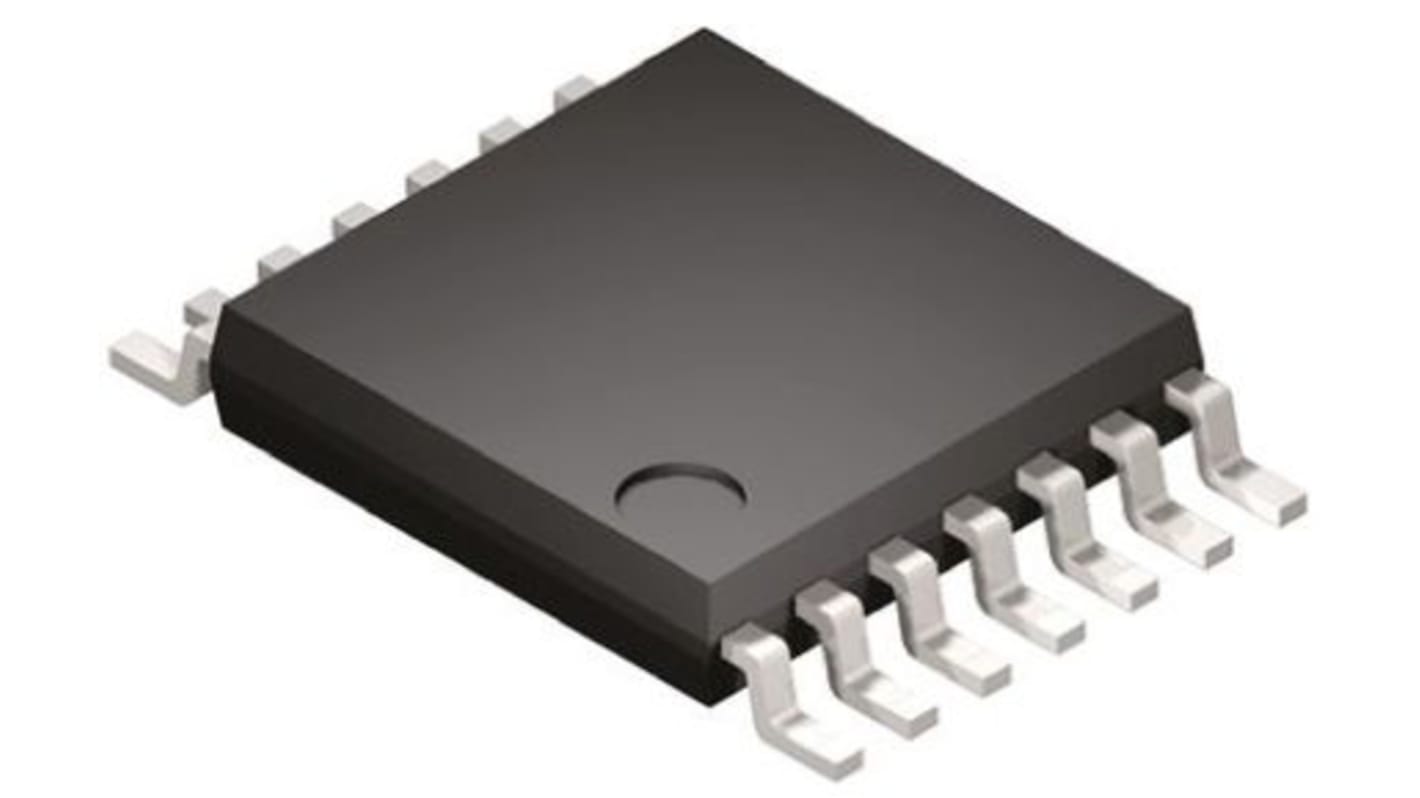

TSV714IPT STMicroelectronics, Op Amp, RRIO, 120kHz 10 kHz, 1.5 → 5.5 V, 14-Pin TSSOP
- RS Stock No.:
- 920-8985
- Mfr. Part No.:
- TSV714IPT
- Brand:
- STMicroelectronics
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 920-8985
- Mfr. Part No.:
- TSV714IPT
- Brand:
- STMicroelectronics
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | STMicroelectronics | |
| Amplifier Type | Low Power, Precision | |
| Mounting Type | Surface Mount | |
| Package Type | TSSOP | |
| Power Supply Type | Single | |
| Number of Channels per Chip | 4 | |
| Pin Count | 14 | |
| Typical Single Supply Voltage | 1.5 → 5.5 V | |
| Typical Gain Bandwidth Product | 120kHz | |
| Typical Slew Rate | 0.05V/µs | |
| Maximum Operating Frequency | 10 kHz | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Typical Voltage Gain | 95 dB | |
| Rail to Rail | Rail to Rail Input/Output | |
| Dimensions | 5.1 x 4.5 x 1.05mm | |
| Width | 4.5mm | |
| Height | 1.05mm | |
| Length | 5.1mm | |
| Typical Input Voltage Noise Density | 100nV/√Hz | |
Select all | ||
|---|---|---|
Brand STMicroelectronics | ||
Amplifier Type Low Power, Precision | ||
Mounting Type Surface Mount | ||
Package Type TSSOP | ||
Power Supply Type Single | ||
Number of Channels per Chip 4 | ||
Pin Count 14 | ||
Typical Single Supply Voltage 1.5 → 5.5 V | ||
Typical Gain Bandwidth Product 120kHz | ||
Typical Slew Rate 0.05V/µs | ||
Maximum Operating Frequency 10 kHz | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Typical Voltage Gain 95 dB | ||
Rail to Rail Rail to Rail Input/Output | ||
Dimensions 5.1 x 4.5 x 1.05mm | ||
Width 4.5mm | ||
Height 1.05mm | ||
Length 5.1mm | ||
Typical Input Voltage Noise Density 100nV/√Hz | ||
TSV71x, High Accuracy, Micro-Power CMOS Operational Amplifiers
The TSV711 (Single), TSV712 (Dual) and TSV714 (Quad) operational amplifiers offer an excellent speed/power consumption ratio.
Low offset voltage: 200 μV max.
Low power consumption: 10 μA typical (5 V)
Power supply operation from 1.5 V to 5.5 V
Gain bandwidth product: 150 kHz
Low input bias current: 1 pA typical
Rail-to-Rail input and output
EMI hardened operational amplifiers
ESD high tolerance: 4 kV (HBM)
Extended temperature range: -40°C to +125°C
Low power consumption: 10 μA typical (5 V)
Power supply operation from 1.5 V to 5.5 V
Gain bandwidth product: 150 kHz
Low input bias current: 1 pA typical
Rail-to-Rail input and output
EMI hardened operational amplifiers
ESD high tolerance: 4 kV (HBM)
Extended temperature range: -40°C to +125°C
