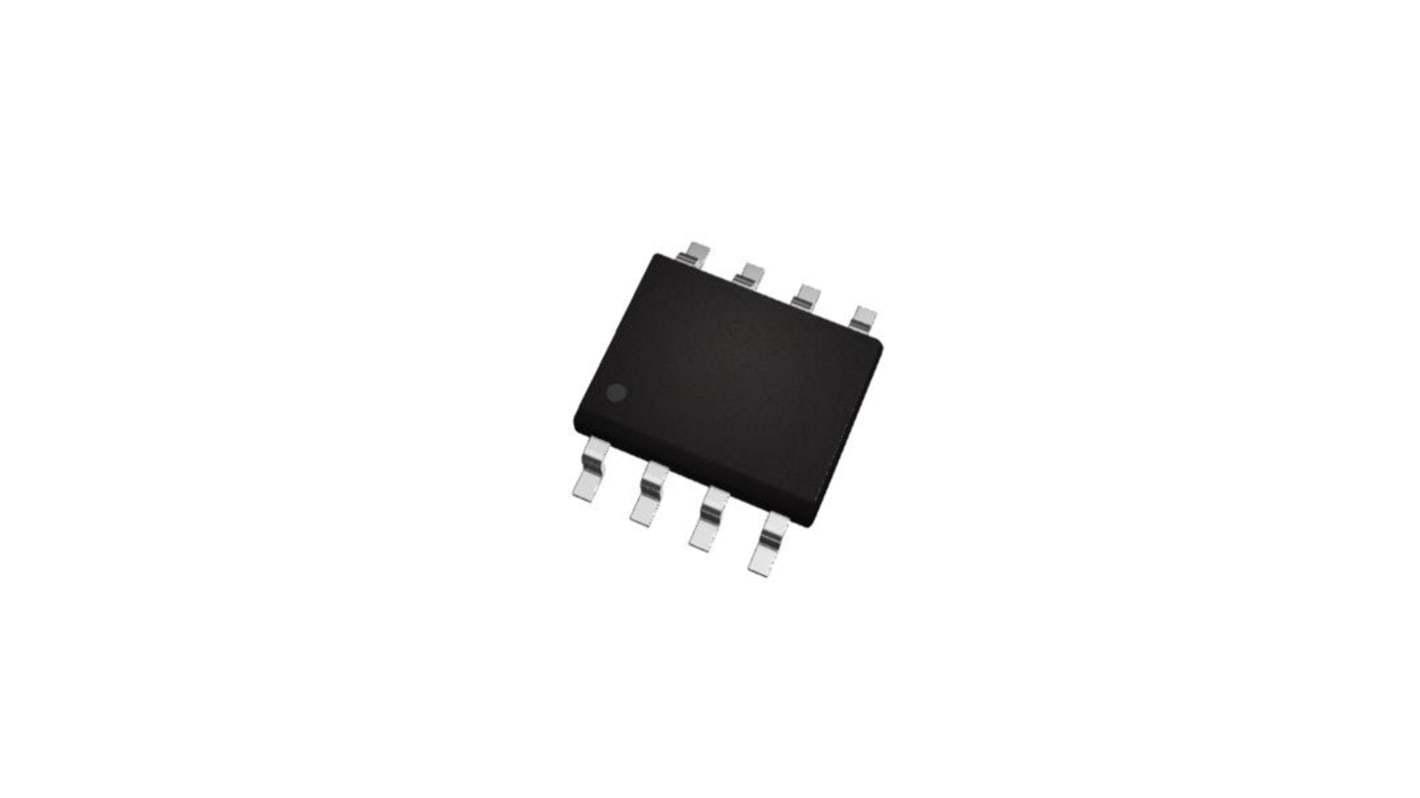

Nisshinbo Micro Devices, Operational Amplifier, 15 MHz, 8-Pin 18 V SOP-8

View all Op Amps

Subtotal (1 reel of 2500 units)*

£635.00

(exc. VAT)

£762.50

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 12,500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.254£635.00

*price indicative

RS Stock No.:
244-9798
Mfr. Part No.:
NJM4580CG-TE2
Brand:
Nisshinbo Micro Devices
Find similar products by selecting one or more attributes.
Select all

Brand

Nisshinbo Micro Devices

Product Type

Operational Amplifier

Mount Type

Surface

Package Type

SOP-8

Number of Channels

2

Pin Count

8

GBP - Gain Bandwidth Product

15MHz

Minimum Supply Voltage

4V

Maximum Supply Voltage

18V

Minimum Operating Temperature

-40°C

Slew Rate

5V/μs

Input Bias Current

100 to 500 nA

Maximum Operating Temperature

85°C

Height

1.55mm

Length

4.9mm

Width

3.9 mm

Standards/Approvals

No

Series

NJM4580C

Automotive Standard

No

Input Offset Current

5 to 200 nA

The New Japan Radio NJM4580C series is of dual operational amplifier, specially designed for improving the tone control, which is suitable for the audio application. Featuring noiseless, higher gain bandwidth, high output current and low distortion ratio, and it is most suitable not only for acoustic electronic parts of audio pre amp and Active filter, but also for the industrial measurement tools. It is also suitable for the head phone amp at higher output current, and further more, it can be applied for the handy type set operational amplifier of general purpose in application of low voltage single supply type which is properly biased of the low voltage source.

Low Input Noise Voltage

Gain Bandwidth Product is 15MHz .

Low Distortion

Slew Rate is 5V/μs typ.

Bipolar Technology

Package Outline are SOP8, SSOP8

Internal ESD protection
