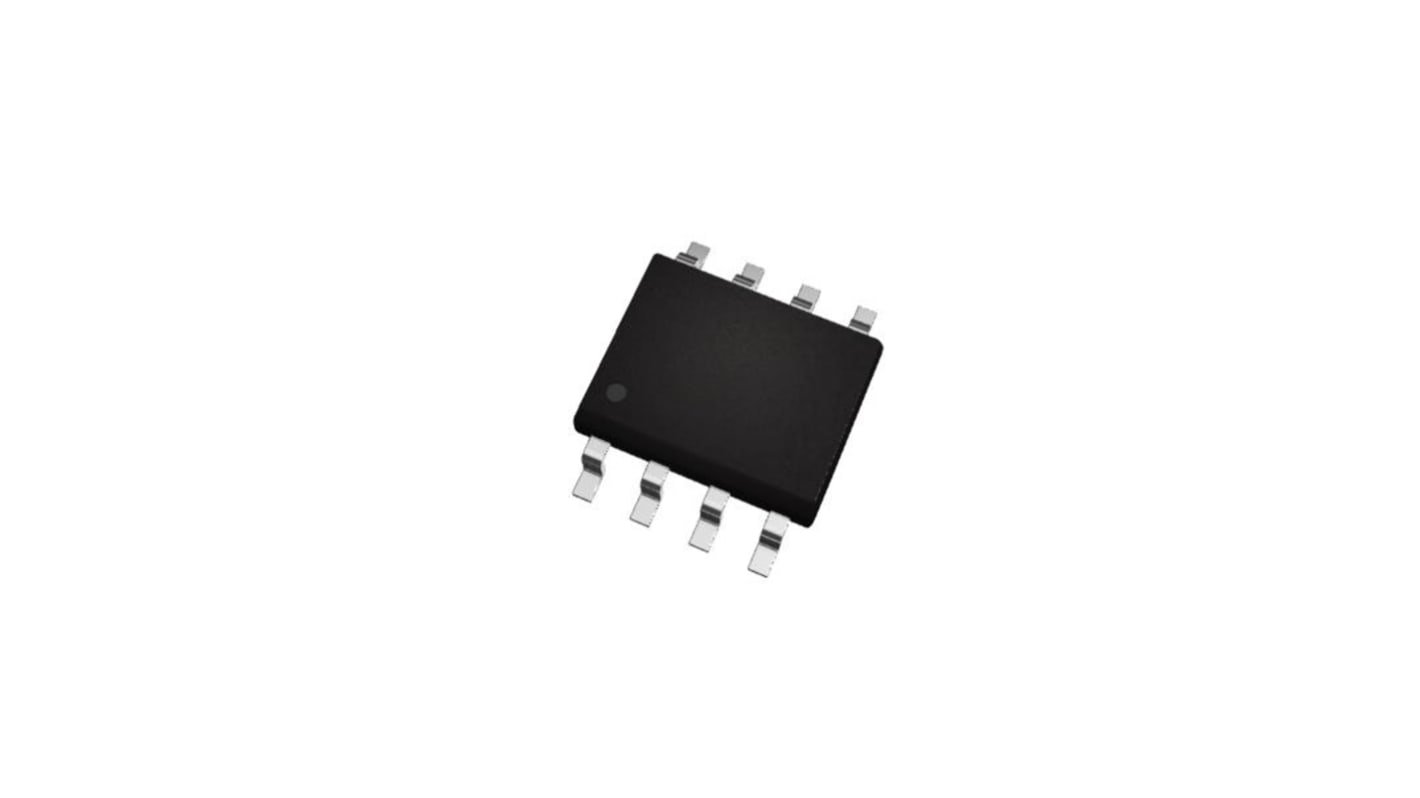

NJM8068G-TE2 Nisshinbo Micro Devices, Operational Amplifier, 19 MHz, 8-Pin 18V SOP-8
- RS Stock No.:
- 244-8620
- Mfr. Part No.:
- NJM8068G-TE2
- Brand:
- Nisshinbo Micro Devices
Bulk discount available
View bulk pricing optionsSubtotal (1 pack of 5 units)*
£2.89
(exc. VAT)
£3.47
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,160 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | £0.578 | £2.89 |
| 10 - 95 | £0.548 | £2.74 |
| 100 - 245 | £0.522 | £2.61 |
| 250 - 495 | £0.494 | £2.47 |
| 500 + | £0.47 | £2.35 |
*price indicative
- RS Stock No.:
- 244-8620
- Mfr. Part No.:
- NJM8068G-TE2
- Brand:
- Nisshinbo Micro Devices
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nisshinbo Micro Devices | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | SOP-8 | |
| Number of Channels | 1 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 19MHz | |
| Maximum Supply Voltage | 18V | |
| Minimum Supply Voltage | 4V | |
| Slew Rate | 6.8V/μs | |
| Minimum Operating Temperature | -40°C | |
| Input Bias Current | 260 to 1000 nA | |
| Maximum Operating Temperature | 125°C | |
| Series | NJM8068 | |
| Standards/Approvals | EIA/JDEC | |
| Length | 5mm | |
| Height | 1.75mm | |
| Automotive Standard | No | |
| Input Offset Current | 5 to 200 nA | |
| Select all | ||
|---|---|---|
Brand Nisshinbo Micro Devices | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type SOP-8 | ||
Number of Channels 1 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 19MHz | ||
Maximum Supply Voltage 18V | ||
Minimum Supply Voltage 4V | ||
Slew Rate 6.8V/μs | ||
Minimum Operating Temperature -40°C | ||
Input Bias Current 260 to 1000 nA | ||
Maximum Operating Temperature 125°C | ||
Series NJM8068 | ||
Standards/Approvals EIA/JDEC | ||
Length 5mm | ||
Height 1.75mm | ||
Automotive Standard No | ||
Input Offset Current 5 to 200 nA | ||
The New Japan Radio NJM8068 series is a low noise bipolar input dual audio operational amplifier. It has unity gain stable allows voltage-follower operation which is Ideal for audio pre amplifier, microphone amplifier, line amplifier and other audio applications.
Operating temperature range is -40°C to 125°C
High Slew Rate
Wide Bandwidth
