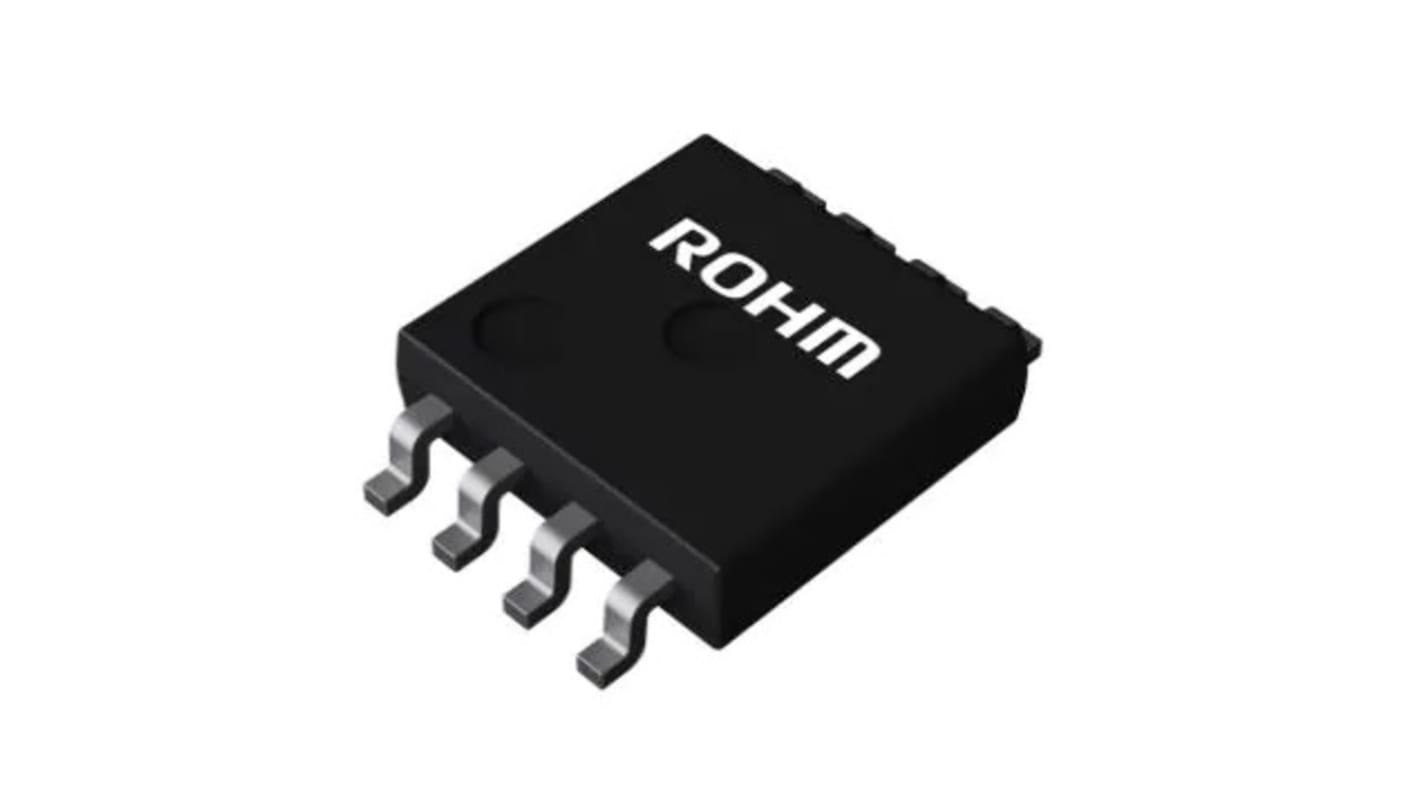

BD87582YFVM-CTR ROHM, CMOS, Op Amp, RRIO, 4MHz, 15.5 V, 8-Pin MSOP
- RS Stock No.:
- 235-2595
- Mfr. Part No.:
- BD87582YFVM-CTR
- Brand:
- ROHM
Save 44% when you buy 1000 units
Subtotal (1 pack of 5 units)*
£6.65
(exc. VAT)
£8.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 2,585 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 - 45 | £1.33 | £6.65 |
50 - 95 | £1.132 | £5.66 |
100 - 245 | £0.96 | £4.80 |
250 - 995 | £0.788 | £3.94 |
1000 + | £0.732 | £3.66 |
*price indicative
- RS Stock No.:
- 235-2595
- Mfr. Part No.:
- BD87582YFVM-CTR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | ROHM | |
Amplifier Type | CMOS | |
Mounting Type | Surface Mount | |
Package Type | MSOP | |
Power Supply Type | Dual, Single | |
Number of Channels per Chip | 2 | |
Pin Count | 8 | |
Typical Single Supply Voltage | 15.5 V | |
Typical Gain Bandwidth Product | 4MHz | |
Rail to Rail | Rail to Rail Input/Output | |
Select all | ||
---|---|---|
Brand ROHM | ||
Amplifier Type CMOS | ||
Mounting Type Surface Mount | ||
Package Type MSOP | ||
Power Supply Type Dual, Single | ||
Number of Channels per Chip 2 | ||
Pin Count 8 | ||
Typical Single Supply Voltage 15.5 V | ||
Typical Gain Bandwidth Product 4MHz | ||
Rail to Rail Rail to Rail Input/Output | ||
The ROHM EMARMOUR series input/output rail-to-rail CMOS operational amplifier has an operating voltage range from 4V to 14V. This operational amplifier is the most suitable for automotive requirements such as sensor amplifier, engine control unit, electric power steering, anti-lock braking system and so on because it has features of high slew rate and low input bias current.
AEC-Q100 qualified
Low supply current
EMI tolerance
Easier replacing with conventional products
High open loop voltage gain
Low supply current
EMI tolerance
Easier replacing with conventional products
High open loop voltage gain
