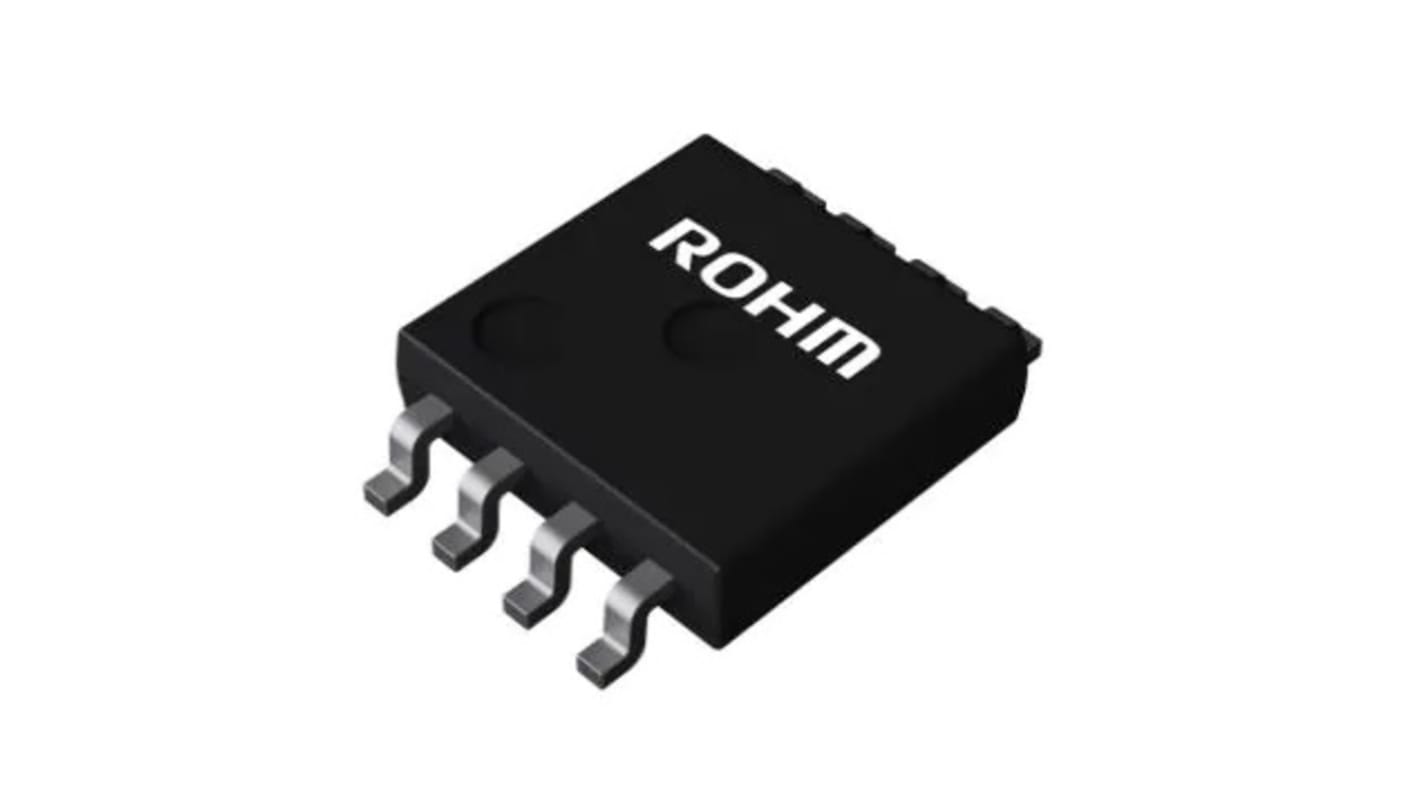

BD87582YFVM-CTR ROHM, Operational Amplifier, 4 MHz, 8-Pin 15.5V MSOP
- RS Stock No.:
- 235-2594
- Mfr. Part No.:
- BD87582YFVM-CTR
- Brand:
- ROHM
Subtotal (1 reel of 3000 units)*
£2,154.00
(exc. VAT)
£2,586.00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | £0.718 | £2,154.00 |
*price indicative
- RS Stock No.:
- 235-2594
- Mfr. Part No.:
- BD87582YFVM-CTR
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | MSOP | |
| Number of Channels | 2 | |
| Pin Count | 8 | |
| GBP - Gain Bandwidth Product | 4MHz | |
| Maximum Supply Voltage | 15.5V | |
| Minimum Supply Voltage | 15.5V | |
| Vos - Input Offset Voltage | 10 mV | |
| Slew Rate | 3.5V/μs | |
| Minimum Operating Temperature | -40°C | |
| Input Bias Current | 1 pA | |
| Maximum Operating Temperature | 125°C | |
| Height | 0.9mm | |
| Series | BD87582 | |
| Length | 2.9mm | |
| Standards/Approvals | No | |
| Output Current | 6mA | |
| Automotive Standard | AEC-Q100 | |
| Input Offset Current | 1 pA | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type MSOP | ||
Number of Channels 2 | ||
Pin Count 8 | ||
GBP - Gain Bandwidth Product 4MHz | ||
Maximum Supply Voltage 15.5V | ||
Minimum Supply Voltage 15.5V | ||
Vos - Input Offset Voltage 10 mV | ||
Slew Rate 3.5V/μs | ||
Minimum Operating Temperature -40°C | ||
Input Bias Current 1 pA | ||
Maximum Operating Temperature 125°C | ||
Height 0.9mm | ||
Series BD87582 | ||
Length 2.9mm | ||
Standards/Approvals No | ||
Output Current 6mA | ||
Automotive Standard AEC-Q100 | ||
Input Offset Current 1 pA | ||
The ROHM EMARMOUR series input/output rail-to-rail CMOS operational amplifier has an operating voltage range from 4V to 14V. This operational amplifier is the most suitable for automotive requirements such as sensor amplifier, engine control unit, electric power steering, anti-lock braking system and so on because it has features of high slew rate and low input bias current.
AEC-Q100 qualified
Low supply current
EMI tolerance
Easier replacing with conventional products
High open loop voltage gain
