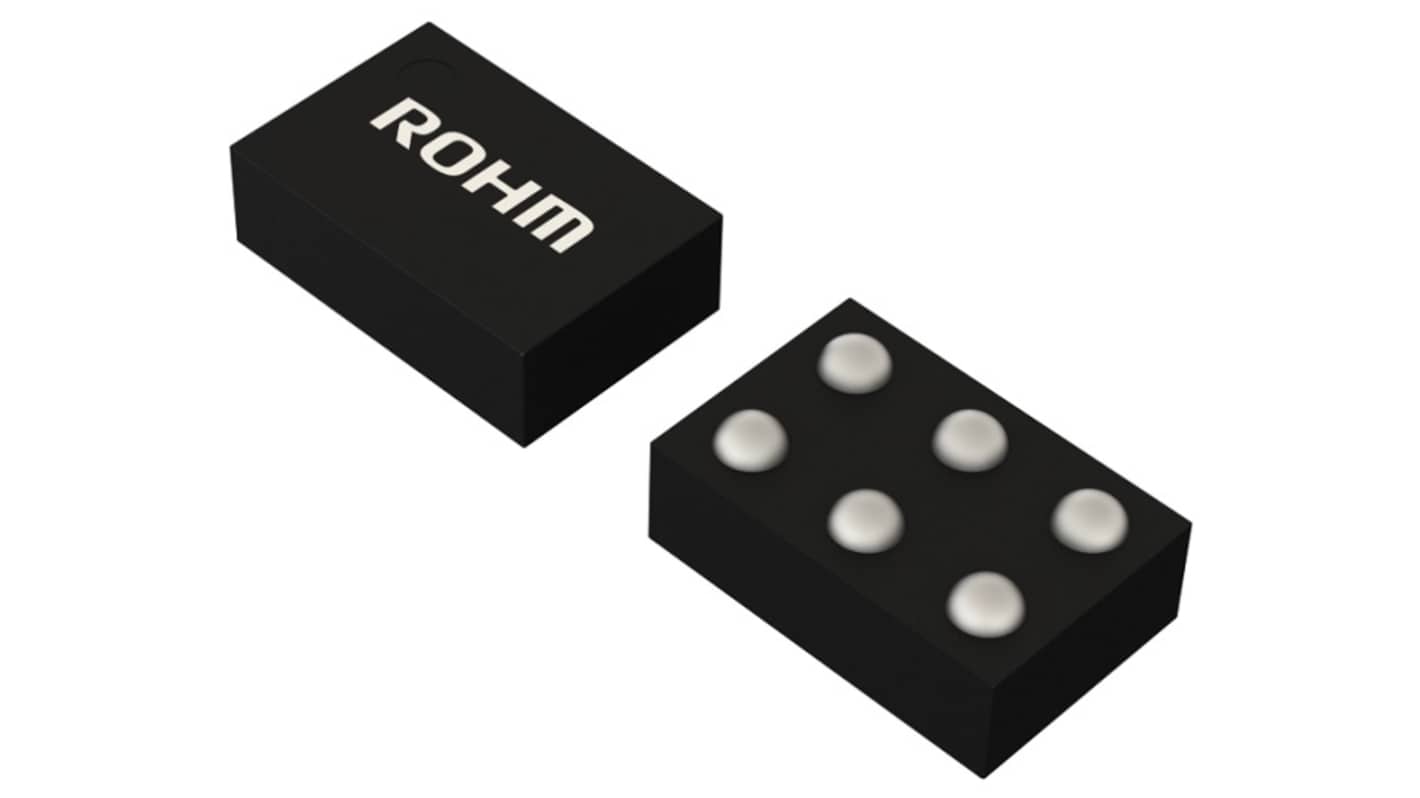

TLR377GYZ-E2 ROHM, Operational Amplifier, 4 MHz, 6-Pin 5.5V WLCSP-6
- RS Stock No.:
- 264-264
- Mfr. Part No.:
- TLR377GYZ-E2
- Brand:
- ROHM
Bulk discount available
Subtotal (1 tape of 10 units)*
£15.41
(exc. VAT)
£18.49
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 90 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tape* |
|---|---|---|
| 10 - 90 | £1.541 | £15.41 |
| 100 - 240 | £1.464 | £14.64 |
| 250 + | £1.357 | £13.57 |
*price indicative
- RS Stock No.:
- 264-264
- Mfr. Part No.:
- TLR377GYZ-E2
- Brand:
- ROHM
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | ROHM | |
| Product Type | Operational Amplifier | |
| Mount Type | Surface | |
| Package Type | WLCSP-6 | |
| Number of Channels | 1 | |
| Pin Count | 6 | |
| GBP - Gain Bandwidth Product | 4MHz | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Supply Voltage | 1.8V | |
| Vos - Input Offset Voltage | 1.0 mV | |
| Input Bias Current | 0.5 pA | |
| Minimum Operating Temperature | -20°C | |
| Slew Rate | 2V/μs | |
| Maximum Operating Temperature | 85°C | |
| Height | 0.33mm | |
| Standards/Approvals | No | |
| Length | 0.58mm | |
| Series | TLR377GYZ | |
| Automotive Standard | No | |
| Output Current | 12mA | |
| Input Offset Current | 0 pA | |
| Select all | ||
|---|---|---|
Brand ROHM | ||
Product Type Operational Amplifier | ||
Mount Type Surface | ||
Package Type WLCSP-6 | ||
Number of Channels 1 | ||
Pin Count 6 | ||
GBP - Gain Bandwidth Product 4MHz | ||
Maximum Supply Voltage 5.5V | ||
Minimum Supply Voltage 1.8V | ||
Vos - Input Offset Voltage 1.0 mV | ||
Input Bias Current 0.5 pA | ||
Minimum Operating Temperature -20°C | ||
Slew Rate 2V/μs | ||
Maximum Operating Temperature 85°C | ||
Height 0.33mm | ||
Standards/Approvals No | ||
Length 0.58mm | ||
Series TLR377GYZ | ||
Automotive Standard No | ||
Output Current 12mA | ||
Input Offset Current 0 pA | ||
The ROHM Op Amps is an ultra Small Package and Rail to Rail Input/output single CMOS operational amplifier. This product features low input offset voltage, low noise and low input bias current. It is suitable for equipment operating from battery power and using sensors that an amplifier.
Low input offset voltage
Low noise
RoHS compliant
