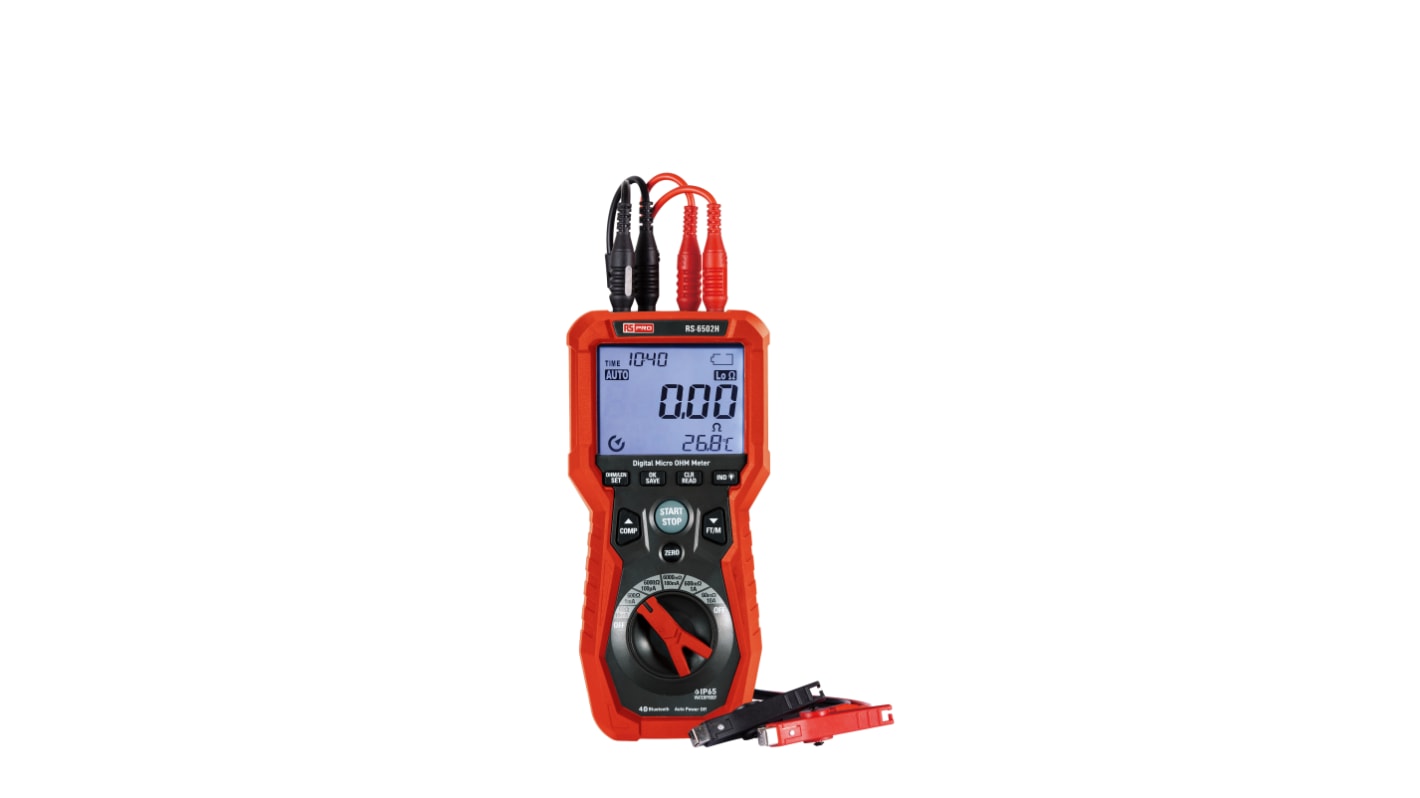

RS PRO RS-6202H Handheld Ohmmeter, 6000 Ω Max, 4 Wire - RS Calibrated
- RS Stock No.:
- 275-0042
- Brand:
- RS PRO
Subtotal (1 unit)*
£373.50
(exc. VAT)
£448.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 63 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £373.50 |
*price indicative
- RS Stock No.:
- 275-0042
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | RS PRO | |
Maximum Resistance Measurement | 6000 Ω | |
Measurement Type | 4 Wire | |
Calibrated | RSCAL | |
Battery Type | Li-Ion | |
Power Source | Battery, Mains | |
Handheld | Yes | |
Dimensions | 212 x 100 x 67mm | |
Weight | 600g | |
Height | 67mm | |
Length | 212mm | |
Model Number p | RS-6202H | |
Maximum Operating Temperature | +40°C | |
Plug Type | UK | |
Width | 100mm | |
Minimum Operating Temperature | 0°C | |
Select all | ||
---|---|---|
Brand RS PRO | ||
Maximum Resistance Measurement 6000 Ω | ||
Measurement Type 4 Wire | ||
Calibrated RSCAL | ||
Battery Type Li-Ion | ||
Power Source Battery, Mains | ||
Handheld Yes | ||
Dimensions 212 x 100 x 67mm | ||
Weight 600g | ||
Height 67mm | ||
Length 212mm | ||
Model Number p RS-6202H | ||
Maximum Operating Temperature +40°C | ||
Plug Type UK | ||
Width 100mm | ||
Minimum Operating Temperature 0°C | ||
- COO (Country of Origin):
- CN
RS PRO RS6502H Digital Micro Ohm Insulation Tester
An accurate and simple to use low resistance insulation tester with a large LCD display employing the four-wire method for the measurement of time, resistance, temperature and length.
Capable of use as an ohm meter the digital resistance tester is idea for the measurement of bonding resistance, shunt resistance, metallics and cables or wires up to 30000m.
The RS6052H resistance tester features data hold with storage for up to 999 messages with 4.0 Bluetooth communication for straightforward data transfer.
Portable and compact the insulation resistance tester can be powered from a mains supply or by its powerful 7.4V rechargeable Li-Ion battery complete with low battery indicator and auto power off extending battery life.
Features and Benefits
Micro Ohm meter and low resistance tester
LCD screen
Mains or battery operated
4.0 Bluetooth 2 way communication
8 programmable cable gauges
Insulation test range 60mΩ to 6000 Ω
Length measurement range 0.1 to 30000M
Temperature measurement range -5 to 50°C
Insulation test Voltage Max 60V overload protection
7.4V Li-In rechargeable battery
Low power indicator
Auto off
Data hold
Storage for up to 99 messages
LCD screen
Mains or battery operated
4.0 Bluetooth 2 way communication
8 programmable cable gauges
Insulation test range 60mΩ to 6000 Ω
Length measurement range 0.1 to 30000M
Temperature measurement range -5 to 50°C
Insulation test Voltage Max 60V overload protection
7.4V Li-In rechargeable battery
Low power indicator
Auto off
Data hold
Storage for up to 99 messages
Standards and Approvals: CAT IV 600V / CAT III 600V
Why RS PRO?
RS PRO is the own brand of RS, offering professional quality products and solutions across all industries and technologies. Our product range is rigorously tested, inspected, and audited against demanding international standards to provide you with industrial-grade quality, at the right price. Making RS PRO your smart choice.
