Brainboxes Unmanaged 4 Port Ethernet Switch
- RS Stock No.:
- 209-6165
- Mfr. Part No.:
- SW-104
- Brand:
- Brainboxes
Subtotal (1 unit)*
£47.55
(exc. VAT)
£57.06
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 10 unit(s) shipping from 30 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £47.55 |
*price indicative
- RS Stock No.:
- 209-6165
- Mfr. Part No.:
- SW-104
- Brand:
- Brainboxes
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Brainboxes | |
Number of Ports | 4 | |
Switch Type | Unmanaged | |
RJ45 Ports | 4 | |
Height | 99mm | |
Network Speed | 10/100Mbit/s | |
Depth | 23mm | |
Dimensions | 99x94x23mm | |
Width | 94mm | |
Select all | ||
---|---|---|
Brand Brainboxes | ||
Number of Ports 4 | ||
Switch Type Unmanaged | ||
RJ45 Ports 4 | ||
Height 99mm | ||
Network Speed 10/100Mbit/s | ||
Depth 23mm | ||
Dimensions 99x94x23mm | ||
Width 94mm | ||
- COO (Country of Origin):
- GB

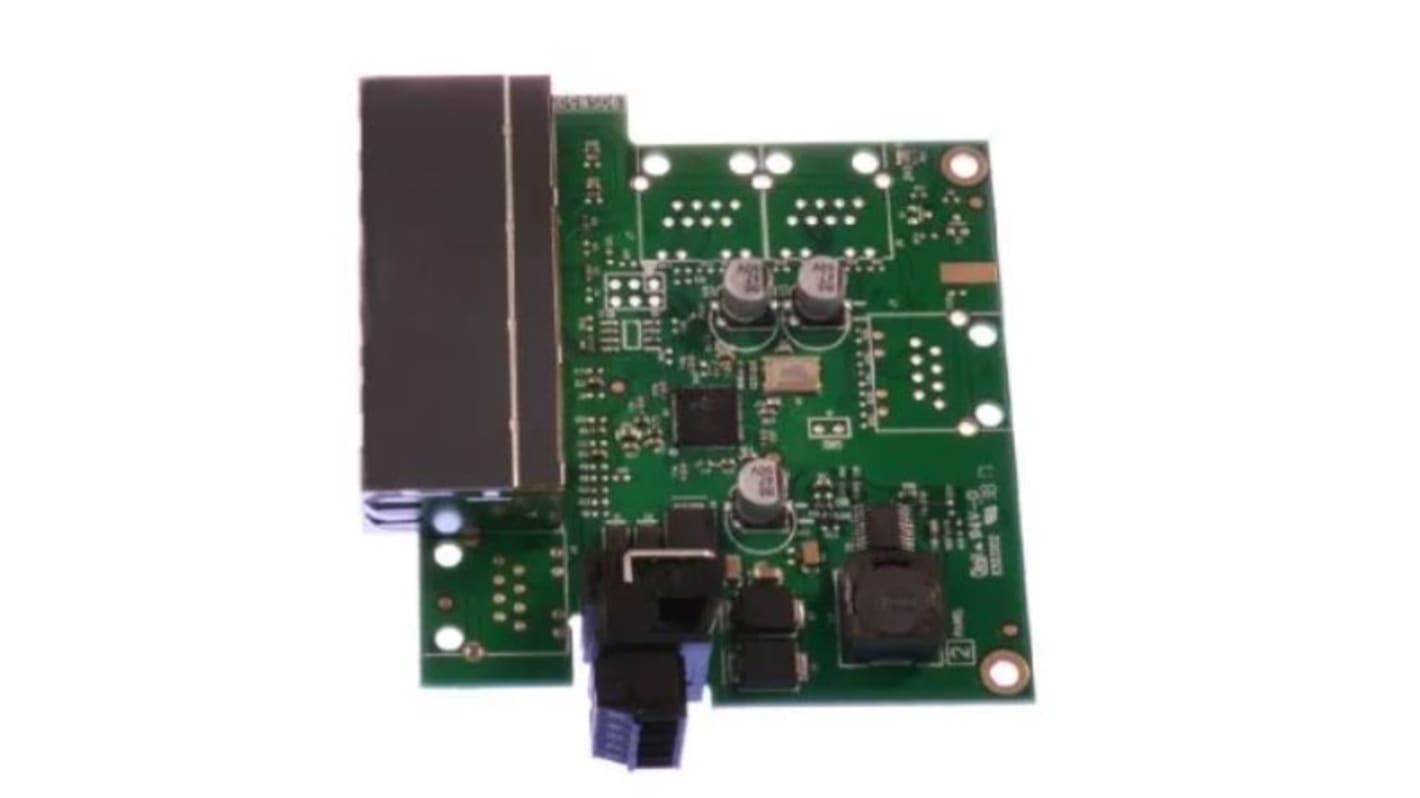

The Brainbox SW series a compact design,4xRJ45 port Ethernet switch with 10 or 100Mbps transmission speed. All Ethernet ports are Auto MDI/ device MDIX supporting straight through or crossover Ethernet cables. The wall mount Ethernet switch compatible with MK-048 DIN mount clips. Power consumption is optimised based on the status of the link device.
Screw terminal block
Connection LEDs on each Port
Wide input range = 5 to 30VDC
Polyamide case
IP30 rated
Temperature range = -40ºC to +80ºC/-40-ºF to +176ºF
Connection LEDs on each Port
Wide input range = 5 to 30VDC
Polyamide case
IP30 rated
Temperature range = -40ºC to +80ºC/-40-ºF to +176ºF
