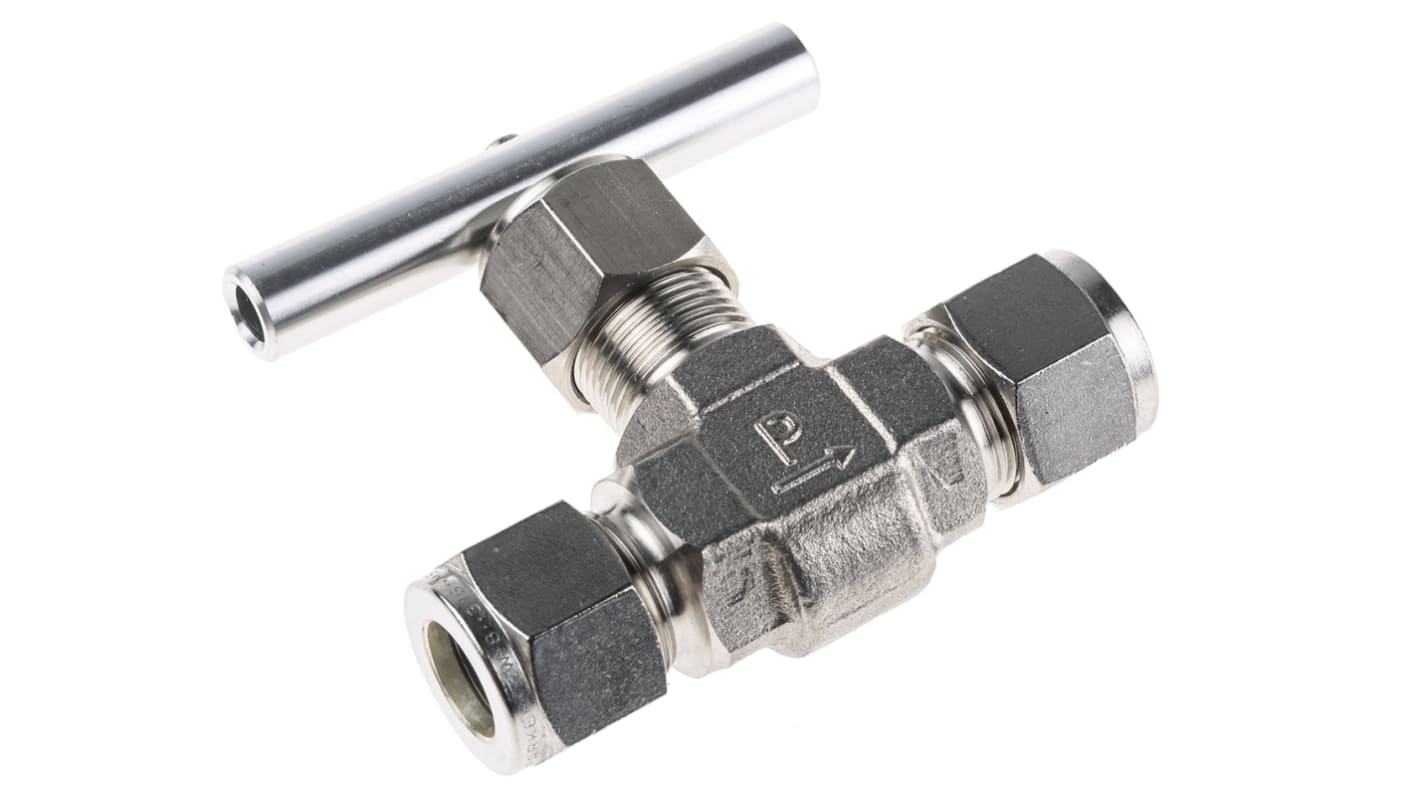

Parker Stainless Steel Needle Valve 1/2 in
- RS Stock No.:
- 432-5224
- Mfr. Part No.:
- 8A-V8LR-SS
- Brand:
- Parker
Subtotal (1 unit)*
£198.34
(exc. VAT)
£238.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 5 unit(s) shipping from 23 October 2025
- Plus 10 unit(s) shipping from 19 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £198.34 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£188.66
(exc. VAT)
£226.39
(inc. VAT)
- RS Stock No.:
- 432-5224
- Mfr. Part No.:
- 8A-V8LR-SS
- Brand:
- Parker
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Parker | |
Connection | 1/2 in | |
Body Material | Stainless Steel | |
Connection Orientation | Straight | |
Maximum Liquid Pressure | 345bar | |
Valve Orientation | Inline | |
Flow Factor Kv | 1.05m³/h | |
Maximum Working Pressure | 345 bar | |
Select all | ||
---|---|---|
Brand Parker | ||
Connection 1/2 in | ||
Body Material Stainless Steel | ||
Connection Orientation Straight | ||
Maximum Liquid Pressure 345bar | ||
Valve Orientation Inline | ||
Flow Factor Kv 1.05m³/h | ||
Maximum Working Pressure 345 bar | ||
RoHS Status: Exempt
V Series Needle Valve
Designed for positive leak-tight shut-off and regulation in process, power and instrumentation applications
Pressure rating 5000 psig (345 bar)
Body material ASTM A182 Type F316
Operating temperature range -54 to +232°C
Blunt stem tip (30 degrees) for isolation and coarse flow control
PTFE stem seal material
Pressure rating 5000 psig (345 bar)
Body material ASTM A182 Type F316
Operating temperature range -54 to +232°C
Blunt stem tip (30 degrees) for isolation and coarse flow control
PTFE stem seal material






Stainless Steel Valves and Filters
The Parker Hannifin range of stainless steel Instrumentation tubing, tube fittings, valves, regulators and manifolds are manufactured to meet the demand for precision-engineered instrumentation components of the highest quality. All products meet or exceed the relevant worldwide standards.,A range of high quality valves for analytical, chemical, oil and gas, power, pulp and paper applications.
