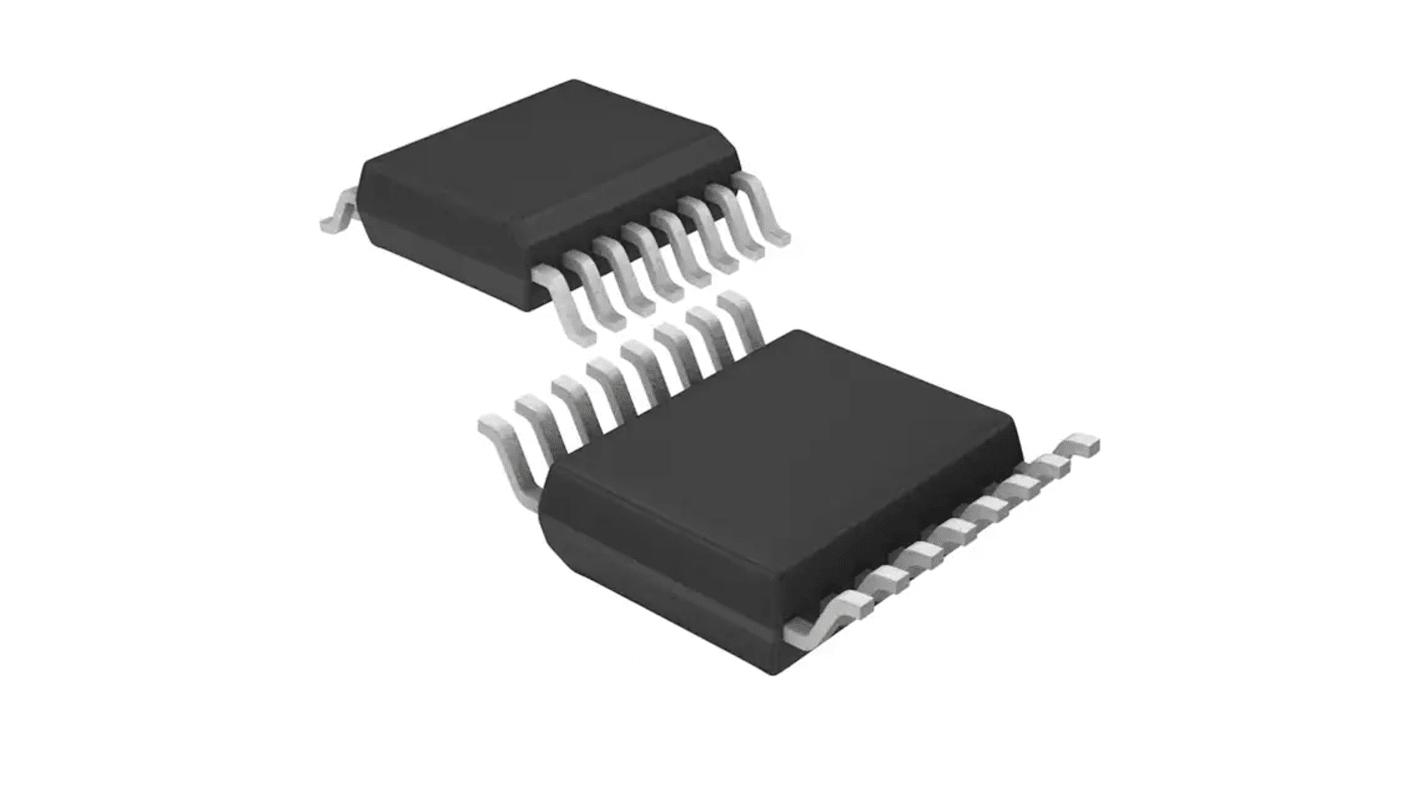

Renesas Electronics QS3257QG8 Multiplexer/Demultiplexer, Demultiplexer, Multiplexer, 16-Pin QSOP

View this category
Bulk discount available

Subtotal (1 pack of 25 units)*

£7.325

(exc. VAT)

£8.80

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 625 unit(s), ready to ship
Units
Per unit
Per Pack*
25 - 25£0.293£7.33
50 - 75£0.287£7.18
100 - 225£0.224£5.60
250 - 975£0.208£5.20
1000 +£0.186£4.65

*price indicative

Packaging Options:
RS Stock No.:
235-8734
Mfr. Part No.:
QS3257QG8
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Logic Family

LVTTL

Logic Function

Demultiplexer, Multiplexer

Pin Count

16

Mounting Type

Surface Mount

Package Type

QSOP

Dimensions

4.90 x 3.80 x 1.47mm

Maximum Operating Supply Voltage

5.25 V

Maximum Operating Temperature

85 °C

Minimum Operating Temperature

-40 °C

Minimum Operating Supply Voltage

4.75 V

The Renesas Electronics high speed CMOS LVTTL compatible quad 2:1 multiplexer or demultiplexer. The QS3257 is a function and pinout compatible quick switch version of the quad 2:1 multiplexers. The low on resistance of the allows inputs to be connected to outputs without adding propagation delay and without generating additional ground bounce noise.

Enhanced n channel fet with no inherent diode to vcc
Five ohm bidirectional switches connect inputs to outputs
Zero propagation delay, zero ground bounce
Undershoot clamp diodes on all switch and control inputs
