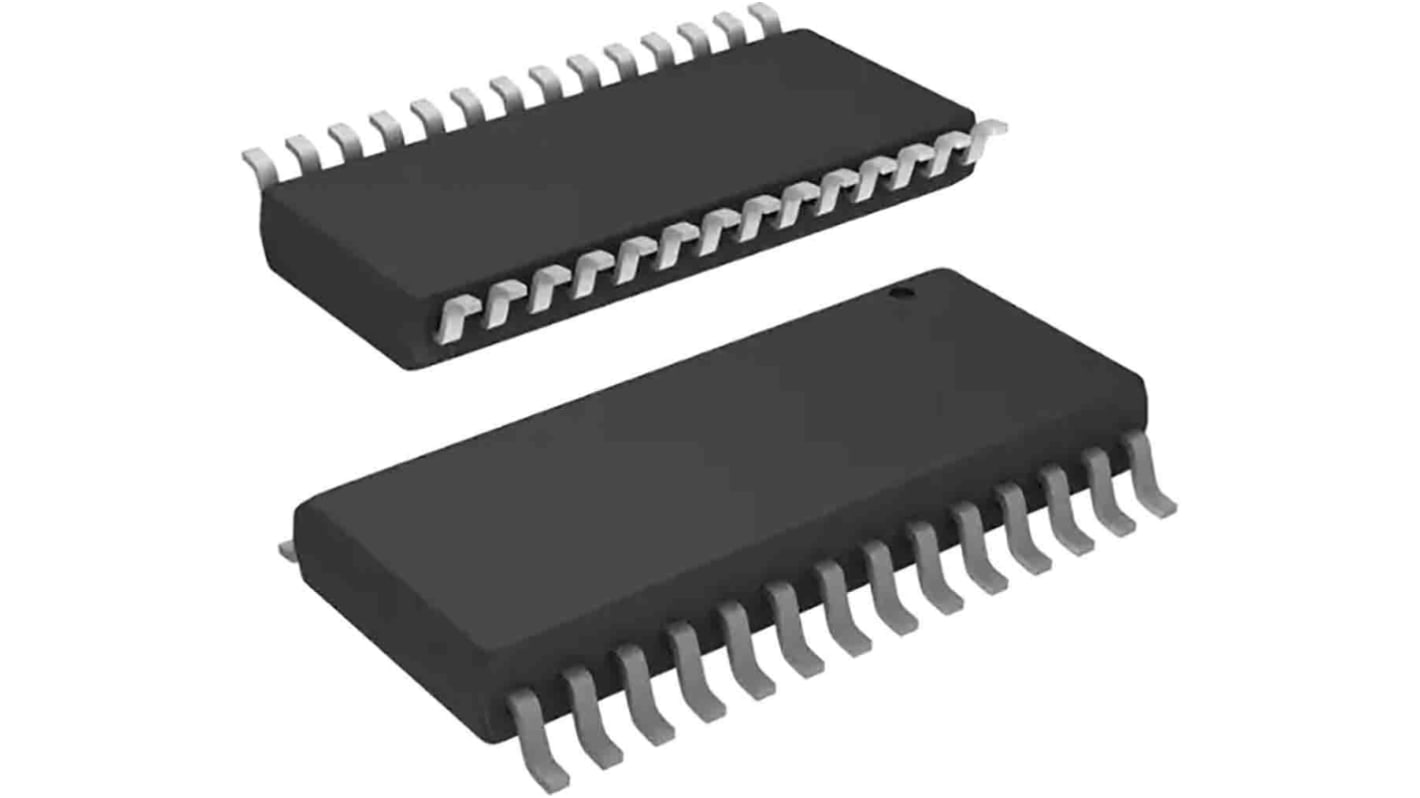

Renesas Electronics DG406DYZ-T Multiplexer, 1, 1, Multiplexer, 1-of-16 15 V, 28-Pin SOIC

View this category

Subtotal (1 reel of 1000 units)*

£4,444.00

(exc. VAT)

£5,333.00

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 1,000 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
1000 +£4.444£4,444.00

*price indicative

RS Stock No.:
196-9018
Mfr. Part No.:
DG406DYZ-T
Brand:
Renesas Electronics
Find similar products by selecting one or more attributes.
Select all

Brand

Renesas Electronics

Logic Family

CMOS, TTL

Logic Function

Multiplexer

Demultiplexing Capability

1-of-16

Number of Elements per Chip

1, 1

Pin Count

28

Mounting Type

Surface Mount

Package Type

SOIC

The Renesas Electronics DG406 monolithic CMOS analog multiplexers is a drop-in replacements for the popular DG506A and DG507A series devices. It include an array of sixteen analog switches, a TTL and CMOS compatible digital decode circuit for channel selection, a voltage reference for logic thresholds, and an ENABLE input for device selection when several multiplexers are present.

ON-Resistance (Max): 100Ω
Low Power Consumption (PD): <1.2mW
Fast Transition Time (Max): 300ns
Low Charge InjectionTTL, CMOS Compatible
Single or Split Supply Operation
Pb-Free (RoHS Compliant)
