Beha-Amprobe HEX120 Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated
- RS Stock No.:
- 912-0061
- Mfr. Part No.:
- HEX120-D
- Brand:
- Beha-Amprobe
- RS Stock No.:
- 912-0061
- Mfr. Part No.:
- HEX120-D
- Brand:
- Beha-Amprobe
Select all | Attribute | Value |
|---|---|---|
| Brand | Beha-Amprobe | |
| Multimeter Type | Handheld | |
| Model Number p | HEX120 | |
| Display Type | Digital | |
| Calibrated | RSCAL | |
| Functions Measured | AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature | |
| Absolute Maximum AC Voltage Measurement | 1000V ac | |
| Absolute Maximum DC Current Measurement | 10A dc | |
| Absolute Maximum AC Current Measurement | 10A ac | |
| Absolute Maximum Resistance Measurement | 40MΩ | |
| Absolute Maximum DC Voltage Measurement | 1000V dc | |
| Absolute Maximum Capacitance Measurement | 3mF | |
| Absolute Maximum Temperature Measurement | +300°C | |
| Maximum Frequency | 1MHz | |
| AC Current Measurement Resolution | 0.1µA ac | |
| DC Current Measurement Resolution | 0.1µA dc | |
| Resistance Measurement Resolution | 100mΩ | |
| DC Voltage Measurement Resolution | 0.1mV dc | |
| AC Voltage Measurement Resolution | 0.1mV ac | |
| Safety Category Level | CAT II, CAT III | |
| Capacitance Measurement Resolution | 100pF | |
| Height | 55mm | |
| Minimum Operating Temperature | 0°C | |
| Best Capacitance Measurement Accuracy | ±3.5% +6 Digit | |
| Battery Type | AAA x 2 | |
| Safety Category Voltage | 600 V, 1000V | |
| Best DC Current Accuracy | ±1.2% + 3 Digits | |
| Weight | 396g | |
| Best AC Voltage Accuracy | ±4% + 5 Digits | |
| Best Temperature Measurement Accuracy | ±2% + 3°C | |
| Best AC Current Accuracy | ±1.8% + 4 Digits | |
| Width | 97mm | |
| Length | 198mm | |
| Best DC Voltage Accuracy | ±1% + 4 Digits | |
| Dimensions | 198 x 97 x 55mm | |
| Maximum Operating Temperature | +35°C | |
| Best Resistance Measurement Accuracy | ±2% + 4 Digits | |
| Select all | ||
|---|---|---|
Brand Beha-Amprobe | ||
Multimeter Type Handheld | ||
Model Number p HEX120 | ||
Display Type Digital | ||
Calibrated RSCAL | ||
Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Resistance, Temperature | ||
Absolute Maximum AC Voltage Measurement 1000V ac | ||
Absolute Maximum DC Current Measurement 10A dc | ||
Absolute Maximum AC Current Measurement 10A ac | ||
Absolute Maximum Resistance Measurement 40MΩ | ||
Absolute Maximum DC Voltage Measurement 1000V dc | ||
Absolute Maximum Capacitance Measurement 3mF | ||
Absolute Maximum Temperature Measurement +300°C | ||
Maximum Frequency 1MHz | ||
AC Current Measurement Resolution 0.1µA ac | ||
DC Current Measurement Resolution 0.1µA dc | ||
Resistance Measurement Resolution 100mΩ | ||
DC Voltage Measurement Resolution 0.1mV dc | ||
AC Voltage Measurement Resolution 0.1mV ac | ||
Safety Category Level CAT II, CAT III | ||
Capacitance Measurement Resolution 100pF | ||
Height 55mm | ||
Minimum Operating Temperature 0°C | ||
Best Capacitance Measurement Accuracy ±3.5% +6 Digit | ||
Battery Type AAA x 2 | ||
Safety Category Voltage 600 V, 1000V | ||
Best DC Current Accuracy ±1.2% + 3 Digits | ||
Weight 396g | ||
Best AC Voltage Accuracy ±4% + 5 Digits | ||
Best Temperature Measurement Accuracy ±2% + 3°C | ||
Best AC Current Accuracy ±1.8% + 4 Digits | ||
Width 97mm | ||
Length 198mm | ||
Best DC Voltage Accuracy ±1% + 4 Digits | ||
Dimensions 198 x 97 x 55mm | ||
Maximum Operating Temperature +35°C | ||
Best Resistance Measurement Accuracy ±2% + 4 Digits | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- TW

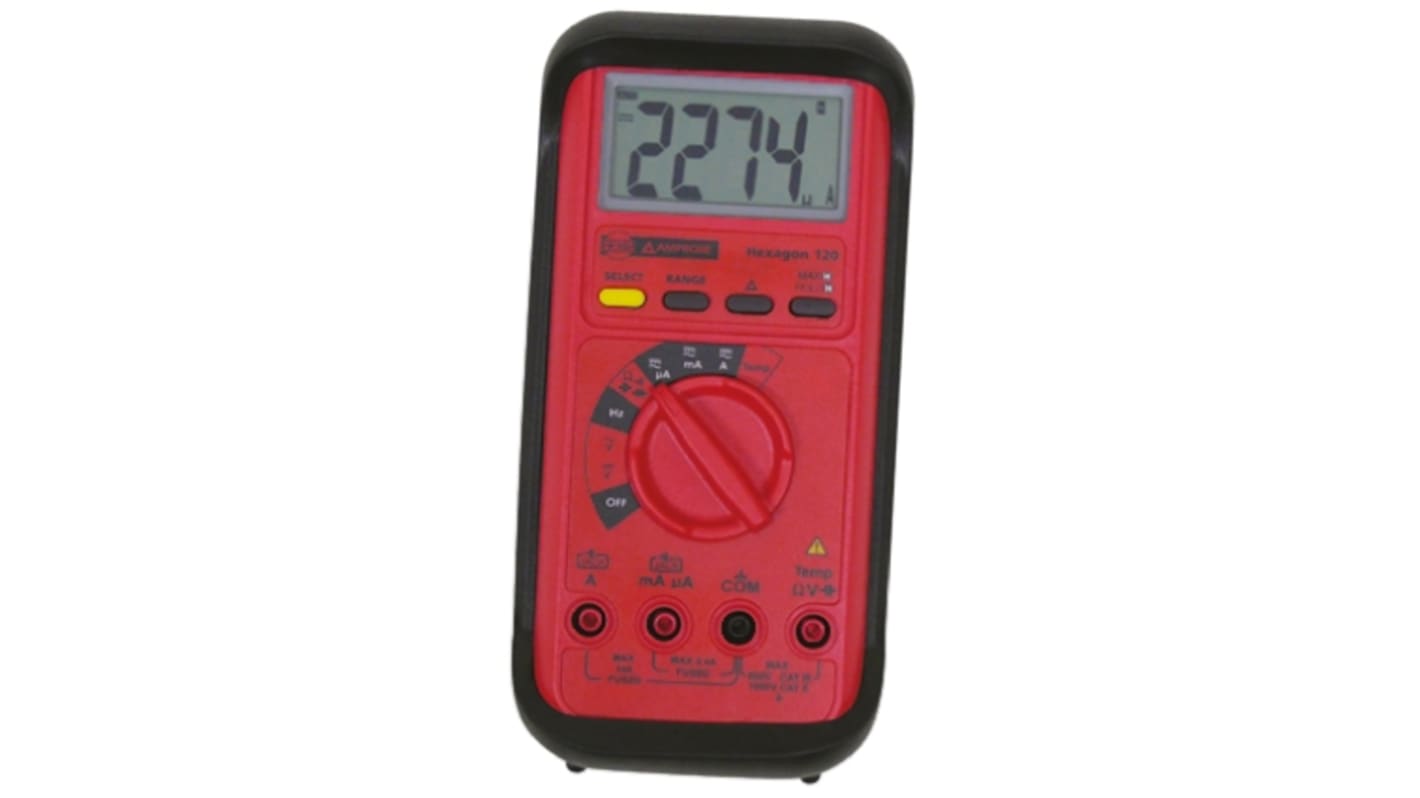

Hexagon 120-D Digital Multimeter
3 3/4 digit, digital display with 4000 digits
True RMS measurement
Voltage, current and resistance measurement
Capacitance and frequency measurement
Diode test and continuity beeper
Thermometer
Automatic and manual range selection
Max Hold
Relative measurement
Auto power-off
Safety in compliance with DIN VDE 0411, EN 61010, IEC61010, CAT III/600 V
