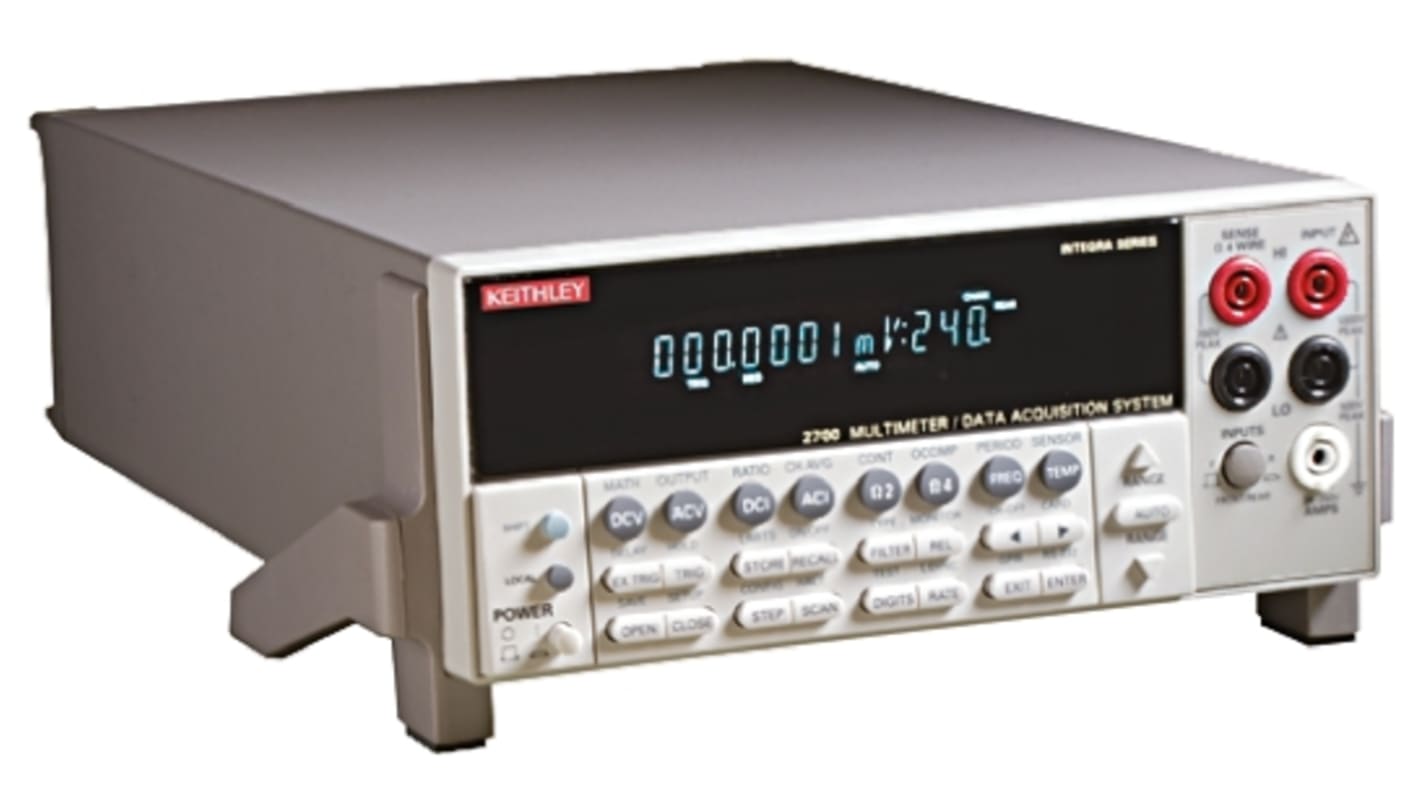

Keithley 2700/E Bench Front Panel Digital Multimeter, True RMS, 3A ac Max, 3A dc Max, 750V ac Max

RS Stock No.:: 760-0357
Mfr. Part No.:: 2700/E
Brand:: Keithley

Keithley 2700/E Bench Front Panel Digital Multimeter, True RMS, 3A ac Max, 3A dc Max, 750V ac Max

Currently unavailable

We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.

Alternative

This product is not currently available. Here is our alternative recommendation.

Keithley DAQ6510 Data Acquisition System

RS Stock No.: 173-9961

Each

£1,805.53

(exc. VAT)

£2,166.64

(inc. VAT)

RS Stock No.:: 760-0357
Mfr. Part No.:: 2700/E
Brand:: Keithley

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Keithley
	Multimeter Type	Bench
	Display Type	Front Panel
	Model Number p	2700/E
	Functions Measured	DC Current, DC Voltage, Resistance, Temperature
	Absolute Maximum DC Current Measurement	3A dc
	Absolute Maximum AC Current Measurement	3A ac
	Absolute Maximum Resistance Measurement	100MΩ
	Absolute Maximum DC Voltage Measurement	1000V dc
	Absolute Maximum AC Voltage Measurement	750V ac
	Absolute Maximum Temperature Measurement	+1820°C
	True RMS	Yes
	Maximum Frequency	500kHz
	DC Current Measurement Resolution	1µA dc
	DC Voltage Measurement Resolution	0.1µV dc
	Resistance Measurement Resolution	1µΩ
	Temperature Measurement Resolution	0.001°C
	Best DC Voltage Accuracy	±0.003% + 3.5 Digits
	Weight	6.5kg
	Best DC Current Accuracy	±0.05% + 8 Digits
	Best Temperature Measurement Accuracy	±0.2 °C
	Battery Type	Lithium Battery
	Best Resistance Measurement Accuracy	±0.01% + 4 Digits
	Dimensions	89 x 213 x 370mm

	Select all
	Brand Keithley
	Multimeter Type Bench
	Display Type Front Panel
	Model Number p 2700/E
	Functions Measured DC Current, DC Voltage, Resistance, Temperature
	Absolute Maximum DC Current Measurement 3A dc
	Absolute Maximum AC Current Measurement 3A ac
	Absolute Maximum Resistance Measurement 100MΩ
	Absolute Maximum DC Voltage Measurement 1000V dc
	Absolute Maximum AC Voltage Measurement 750V ac
	Absolute Maximum Temperature Measurement +1820°C
	True RMS Yes
	Maximum Frequency 500kHz
	DC Current Measurement Resolution 1µA dc
	DC Voltage Measurement Resolution 0.1µV dc
	Resistance Measurement Resolution 1µΩ
	Temperature Measurement Resolution 0.001°C
	Best DC Voltage Accuracy ±0.003% + 3.5 Digits
	Weight 6.5kg
	Best DC Current Accuracy ±0.05% + 8 Digits
	Best Temperature Measurement Accuracy ±0.2 °C
	Battery Type Lithium Battery
	Best Resistance Measurement Accuracy ±0.01% + 4 Digits
	Dimensions 89 x 213 x 370mm

Keithley 2700, 2701, 2750 Multimeter/Data Acquisition/Switch Systems

Keithley's Integra series systems 2700, 2701 and 2750 combine precision measurement, switching and control in a single, tightly integrated enclosure for either rack-mounted or benchtop applications. Built-in measurement functions include: DCV, ACV, DCI, ACI; Resistance, 2- or 4-wire, offset compensation selectable; Temperature (with thermocouples, RTDs or thermistors; Frequency/Period; Continuity.

Models include:

2701/E - 2 slots (RS Stock No. 760-0351)
2700/7700/E - 2 slots (RS Stock No. 760-0351)
2700/E - 2 slots (RS Stock No. 760-0357)
2750/E - 5 slots (RS Stock No. 760-0360)

Similar Features and Benefits:

Cost effective - Combines functions of digital multimeter, switch system and datalogger
True 6-digit (22 bit) resolution
Can select 12 switch/control plug-in modules
Up to 200 differential input channels (with 300 V isolation) for measurement and control
Convenient front panel inputs
ExceLINX - 1A datalogging software

Setup and Operation

These Integra systems are fully integrated measurement and control systems and are fast and easy to set up and start working within minutes of installation.

Advantages of Integrated Design

Due to their flexible modular architecture and integrated measurement, switching, and control capabilities save rack space by reducing the number of separate instruments needed.
As the number of channels grows, new test requirements evolve.
Integrated signal conditioning, scaling, stimulus, filtering and I/O capabilities eliminate the need for external circuitry when designing and building data acquisition systems.
Integra systems offer greater accuracy and repeatability to plug-in data acquisition boards, while providing faster test times than typical DMM/switch systems. This makes it possible to combine higher test yields with higher test throughput.

Different features between the models: (Please see selector guide on page 5 of the datasheet for more information)

2701
Ethernet and RS-232 interfaces – offers an Ethernet connection for high-speed and long-distance communication between a computer and various instruments. Includes 2 slots for the plug-in modules.
2700
GPIB and RS-232 interfaces
2750
GPIB and RS-232 interfaces
Dry circuit ohms (20 mV clamp) - Protects sensitive devices from damage and prevents self-heating errors during testing.

Applications include:

Production test of electronic products and devices, accelerated stress testing (AST), process monitor and control, device characterisation/R&D and low ohms, multichannel measurements.

Note

The 2700/7700/E (760-0354 ) comes with the Keithley 7700 20-channel multiplexer module. Switch/control plug-in modules, available separately, include the Keithley 7700 (760-0317 ) and 7702 (760-0326 ).

Supplied with

LabVIEW, LabWindows/CVI, Visual Basic and C/C++ drivers (IVI style) software, manual, safety test leads
