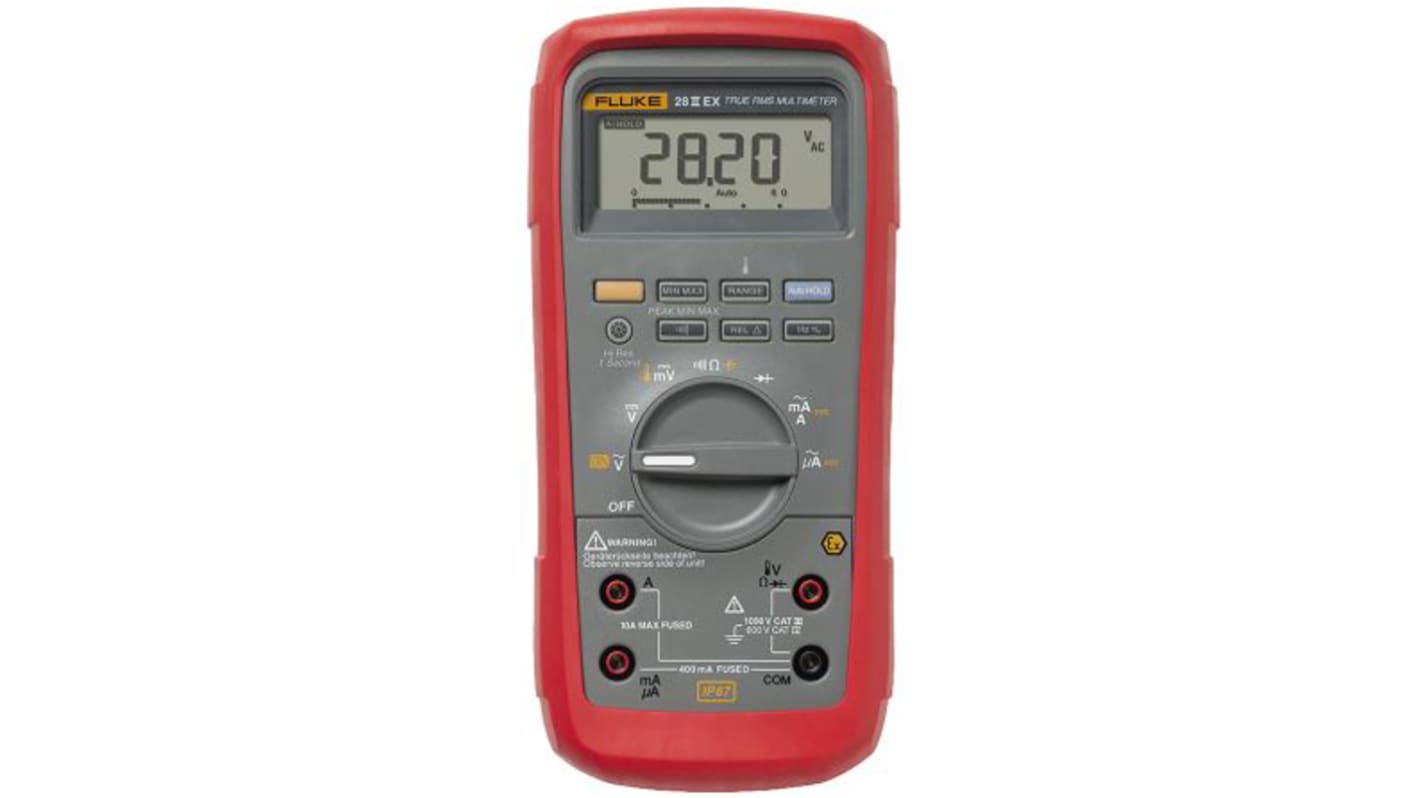

Fluke 28EX Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max, ATEX - UKAS Calibrated

RS Stock No.:: 759-6851
Mfr. Part No.:: FLUKE 28 IIEX
Brand:: Fluke

Fluke 28EX Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max, ATEX - UKAS Calibrated

Subtotal (1 unit)*

£1,718.82

(exc. VAT)

£2,062.58

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

44 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£1,718.82

*price indicative

RS Stock No.:: 759-6851
Mfr. Part No.:: FLUKE 28 IIEX
Brand:: Fluke

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Fluke
	Multimeter Type	Handheld
	Display Type	Digital
	Model Number p	28EX
	Calibrated	UKAS
	Functions Measured	AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature
	Absolute Maximum DC Voltage Measurement	1000V dc
	Absolute Maximum AC Voltage Measurement	1000V ac
	Absolute Maximum AC Current Measurement	10A ac
	Absolute Maximum DC Current Measurement	10A dc
	Absolute Maximum Resistance Measurement	50MΩ
	True RMS	Yes
	Absolute Maximum Capacitance Measurement	9.999F
	Absolute Maximum Temperature Measurement	+1090°C
	Maximum Frequency	200kHz
	DC Current Measurement Resolution	0.01A dc
	AC Current Measurement Resolution	0.01A ac
	DC Voltage Measurement Resolution	1V dc
	Resistance Measurement Resolution	10kΩ
	AC Voltage Measurement Resolution	1V ac
	Safety Category Level	CAT IV
	Temperature Measurement Resolution	0.1°C
	Capacitance Measurement Resolution	1µF
	Hazardous Area Certification	ATEX
	Length	213.3mm
	Best DC Voltage Accuracy	±0.1% + 1 Digit
	Maximum Operating Temperature	+50°C
	Safety Category Voltage	600V
	Battery Type	AAA
	Best Temperature Measurement Accuracy	±1% + 10 Digits
	Dimensions	213.3 x 100 x 45.7mm
	Best Capacitance Measurement Accuracy	±1% + 2 Digits
	Best AC Voltage Accuracy	±2% + 20 Digits
	Best AC Current Accuracy	±1% + 2 Digits
	Best Resistance Measurement Accuracy	±1% + 3 Digits
	Best DC Current Accuracy	±0.2% + 4 Digits
	Minimum Operating Temperature	-15°C
	Weight	567.8g
	Width	100mm
	Height	45.7mm

	Select all
	Brand Fluke
	Multimeter Type Handheld
	Display Type Digital
	Model Number p 28EX
	Calibrated UKAS
	Functions Measured AC Current, AC Voltage, Capacitance, DC Current, DC Voltage, Diode, Duty Cycle, Frequency, Resistance, Temperature
	Absolute Maximum DC Voltage Measurement 1000V dc
	Absolute Maximum AC Voltage Measurement 1000V ac
	Absolute Maximum AC Current Measurement 10A ac
	Absolute Maximum DC Current Measurement 10A dc
	Absolute Maximum Resistance Measurement 50MΩ
	True RMS Yes
	Absolute Maximum Capacitance Measurement 9.999F
	Absolute Maximum Temperature Measurement +1090°C
	Maximum Frequency 200kHz
	DC Current Measurement Resolution 0.01A dc
	AC Current Measurement Resolution 0.01A ac
	DC Voltage Measurement Resolution 1V dc
	Resistance Measurement Resolution 10kΩ
	AC Voltage Measurement Resolution 1V ac
	Safety Category Level CAT IV
	Temperature Measurement Resolution 0.1°C
	Capacitance Measurement Resolution 1µF
	Hazardous Area Certification ATEX
	Length 213.3mm
	Best DC Voltage Accuracy ±0.1% + 1 Digit
	Maximum Operating Temperature +50°C
	Safety Category Voltage 600V
	Battery Type AAA
	Best Temperature Measurement Accuracy ±1% + 10 Digits
	Dimensions 213.3 x 100 x 45.7mm
	Best Capacitance Measurement Accuracy ±1% + 2 Digits
	Best AC Voltage Accuracy ±2% + 20 Digits
	Best AC Current Accuracy ±1% + 2 Digits
	Best Resistance Measurement Accuracy ±1% + 3 Digits
	Best DC Current Accuracy ±0.2% + 4 Digits
	Minimum Operating Temperature -15°C
	Weight 567.8g
	Width 100mm
	Height 45.7mm

RoHS Status: Exempt

COO (Country of Origin):: US

Fluke 28II Ex Intrinsically Safe True RMS Digital Multimeter

The Fluke 28II Ex is the most rugged intrinsically safe digital multimeter in the world. This one device equips you with all the testing and troubleshooting power you need, wherever you go. It meets your needs inside or outside ATEX zones 1, 2, 21 or 22. It means that there is no need to carry different meters for different areas. There is no need to worry about crossing through an Ex-required zone with a non-Ex rated instrument.

All the measurement functions of our most popular industrial DMMs

One tool equips you with all the testing and troubleshooting power you need wherever you go––inside or outside ATEX zones 1,2,21, or 22. No need to carry different meters for different areas, or worry about crossing through an Ex-required zone with a non-Ex rated instrument.

Features and Benefits:

• Ex certification allows you to operate this digital multimeter into most Ex rated areas

• Tested for drops of up to 3 m

• Dustproof per IEC60529 IP6x

• Waterproof per IEC60529 IPx7

• 4 1/2 digit mode for precise measurements (20 000 Counts)

• True RMS ac voltage and current for accurate measurement on non-linear signals

• Measures up to 1000 V and 10 A ac and dc (note that Ex zones require reduced measurements)

• Low pass filter ensures accurate voltage and frequency measurements on variable speed motor drives (VSDs)

• Frequency to 200 kHz and % duty cycle to help you diagnose VSDs and switching power supplies

• Resistance, continuity and diode test

• 10 000 μF capacitance range for components and motor caps

• Conductance measurements for high resistance or leakage tests

• Min/Max-Average and Peak capture to record transients and variations automatically

• Relative mode to remove test lead interference on resistance measurements

• Auto and manual ranging for maximum flexibility

• Input Alert protects you by chirping and flashing Lead when leads are plugged into the wrong inputs

• Important extras keep you productive all day long in less than optimal conditions.

• Backlit keypad buttons provide extra visibility in poorly lit areas, even when you are wearing full PPE

• Large display digits and 2-level bright white backlight also increases visibility

• Long battery life – 400 hours typical without backlight (Alkaline)

• Access to the separate battery compartment makes it easy to change batteries or fuses without jeopardizing instrument calibration.

28 II Ex safety and regulatory compliance

• ISA-82.02.01

• CAN/CSA-C22.2 No. 61010-1-04 /UL61010-1:2004, and TUV 61010-1:2001

• CE

Group and Category

28II Ex I.S Certification: IECEx Ex ia IIC T4 Gb, Ex ia IIIC T130 °C Db, Ex ia I Ma
