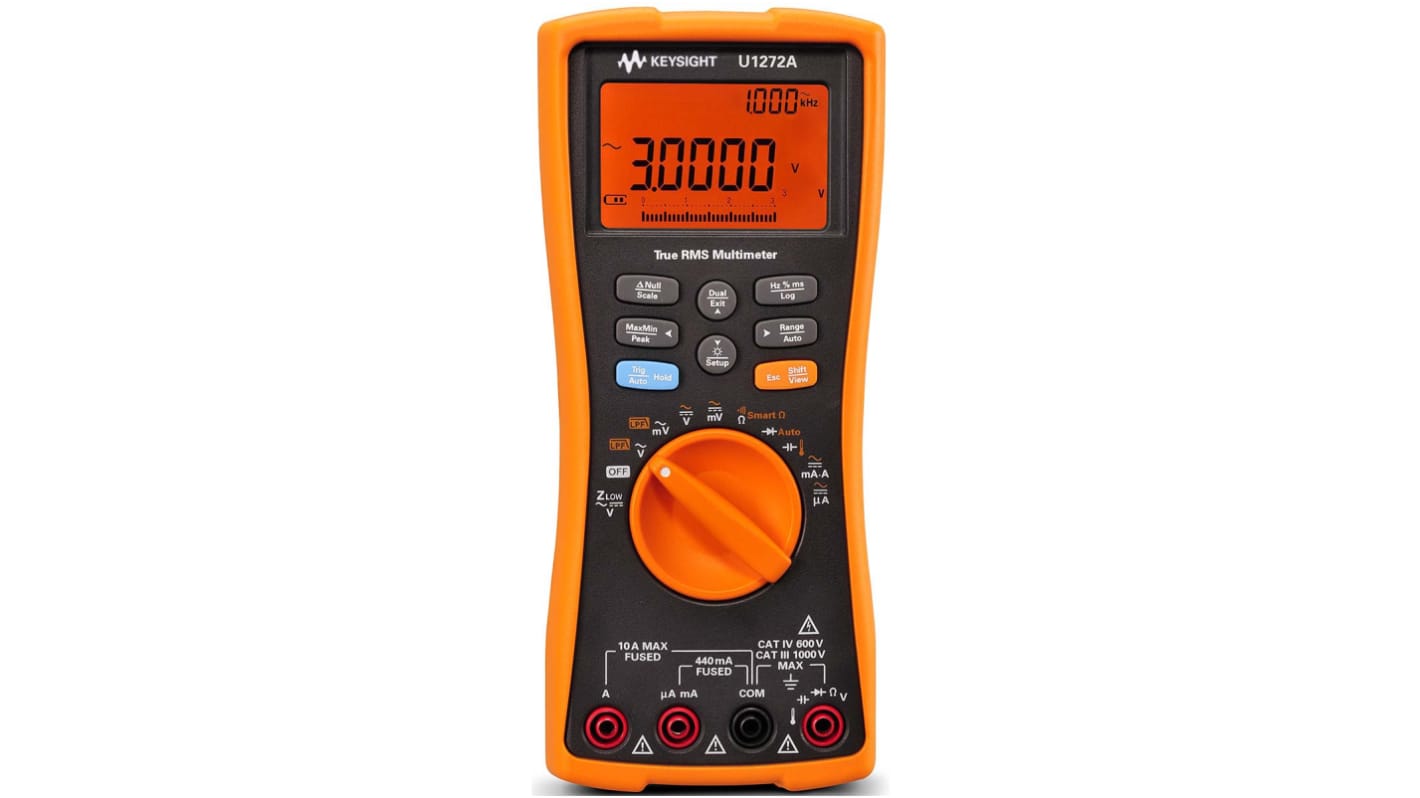

Keysight Technologies U1272A Handheld Digital Multimeter, True RMS, 10A ac Max, 10A dc Max, 1000V ac Max - RS Calibrated

View all Multimeters

Subtotal (1 unit)*

£715.12

(exc. VAT)

£858.14

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +£715.12

*price indicative

RS Stock No.:
712-9000
Mfr. Part No.:
U1272A
Brand:
Keysight Technologies
Find similar products by selecting one or more attributes.
Select all

Brand

Keysight Technologies

Multimeter Type

Handheld

Display Type

Digital

Model Number p

U1272A

Functions Measured

AC Current, AC Voltage, Capacitance, Continuity, DC Current, DC Voltage, Diode, Frequency, Resistance, Temperature

Calibrated

RSCAL

Absolute Maximum DC Current Measurement

10A dc

Absolute Maximum Resistance Measurement

300MΩ

Absolute Maximum AC Voltage Measurement

1000V ac

Absolute Maximum AC Current Measurement

10A ac

Absolute Maximum DC Voltage Measurement

1000V dc

Absolute Maximum Capacitance Measurement

10mF

Absolute Maximum Temperature Measurement

+1372°C

True RMS

Yes

Maximum Frequency

100kHz

AC Current Measurement Resolution

0.01µA ac

DC Current Measurement Resolution

0.01µA dc

AC Voltage Measurement Resolution

0.01mV ac

DC Voltage Measurement Resolution

0.001mV dc

Resistance Measurement Resolution

1mΩ

Capacitance Measurement Resolution

1pF

Temperature Measurement Resolution

0.1°C

Safety Category Level

CAT III, CAT IV

Best Capacitance Measurement Accuracy

±1% + 2 Digits

Width

207mm

Dimensions

59 x 207 x 92mm

Best Temperature Measurement Accuracy

±1% + 1 °C

Best DC Current Accuracy

±0.2% + 5 Digits

Safety Category Voltage

600 V, 1000V

Battery Type

AAA x 4

Best Resistance Measurement Accuracy

±0.2% + 5 Digits

Maximum Operating Temperature

+55°C

Best AC Current Accuracy

±0.6% + 25 Digits

Weight

520g

Height

92mm

Minimum Operating Temperature

-20°C

Best AC Voltage Accuracy

±0.6% + 20 Digits

Best DC Voltage Accuracy

±0.05% + 2 Digits

Length

59mm

RoHS Status: Exempt

COO (Country of Origin):
MY

Keysight U1272A Digital Multimeters


Keysight U1272A Series handheld digital multimeters are designed for users to perform tests confidently and efficiently over longer periods of time due to the precision, accuracy and repeatability. The U1272A digital multimeter is also designed to increase your production with the longer lasting battery life. The battery life will last up to 300 hours allowing you to work for longer periods of time without having to stop and battery change. The ergonomic shaped handheld digital multimeter has a large display and backlight that allows you to single handedly select measurements functions using the anti-slip rotary dial making it much easier for you to improve production whilst working in lower light environments. This digital multimeter also has an IP54 certified protection, water and dust resistant so that you can carry out test and measurements with confidence, even in harsh working environments. For improved safety the U1272A series digital multimeters also allow you to run continuity tests with visual (flashing backlight display) and audio (beeper) alerts. This battery powered handheld digital multimeter features true rms readings with a 30,000 count, 4 1/2 digit display and analogue bar graph results without the complications.

Features & Benefits


• 30,000 - count dual display
• Up to 0.05% basic DCV accuracy
• CAT IV 600 V and CAT III 1000 V over-voltage protection
• Longer battery life up to 300 hours
• Manual data logging up to 100 readings
• Auto/event data logging up to 10,000 readings
• Certified to IP 54 for water and dust protection
• Easy connectivity to PC with optional IR-USB cable
• Frequency counter
• Built in Low pass filter for accurate VFD troubleshooting
• Zlow - Low impedance mode
• Smart Ω

The U1272A series digital multimeter measures


• AC/DC voltage & current
• Resistance
• Voltage frequency
• Diodes
• Continuity
• Capacitance
• Temperature

Improve productivity with intelligent features


Designed for maximum efficiency and productivity in industrial settings, these U1272A digital multimeters offer convenient functions such as Zlow to eliminate stray voltages, Smart Ω to minimize false readings due to leakage current

Does this come with a calibration certificate?


Yes - Certificate of Calibration will be available.

Supplied with

Standard test leads, test probes with 4-mm tips, K-type thermocouple and adapter, 4x AAA batteries, test report, Quick Start Guide
